Commercial Wallbox EV Charger 7-22kW
Features:
Contact Us For Bulk Order Price
Description
The Commercial Wallbox EV charger is available in 7 kW, 11 kW, and 22 kW models, supporting WiFi, Ethernet, and optional 4G connectivity. Featuring a 3.5-inch LED/LCD and RFID (MIFARE ISO & IEC 14443A) authentication, this charger delivers a secure and user-friendly charging experience.
Designed for reliable operation in diverse environments, it operates within a temperature range of –30°C to +55°C and up to 95% non-condensing humidity. Certified to CE, EN/IEC 61851-1:2017, and EN/IEC 61851-21-2:2018, the charger meets international safety and performance standards.
Zeconex is a professional manufacturer of EV charging stations. Our Commercial Wallbox EV chargers are compatible with all electric and plug-in hybrid vehicles.
Model | ZECO-0070-S1 | ZECO-0110-S2 | ZECO-0220-S3 |
|---|---|---|---|
Technical Features | |||
Charging Capacity | Up to 7KW | Up to 11 KW | Up to 22KW |
Input/Output power | 230VAC±20%-50/60Hz-32A- 1phase | 400VAC±20%-50/60Hz- 16A-3phase | 400VAC±20%-50/60Hz- 32A-3phase |
RCD | RCMU(Type A+ DC 6mA)/ Type B RCCB(Optional) | ||
Standby power | <3W | ||
Measuring accuracy | 1% | ||
Communication | WIFI / Ethernet / 4G(Optional) | ||
Energy Meter | MID certifified | ||
OCPP | OCPP1.6 Json(OCPP2.0 optional) | ||
User interface | LED/LCD(3.5")/ RFID(mifare iso& IEC 14443A) | ||
Certifificate/Compliance | CE/ FCC/ROHS/REACH/IEC/EN 61851-1, IEC/EN618551-21-2, | ||
Charging Interface | Type 2 socket / 5M Cable | ||
Special Protection | Over current protection, Residual current protection, Ground protection, Surge protection, Over/Under voltage protection, Over/Under frequency protection, Over/Under temperature protection | ||
Physical Properties | |||
Protection | IP54, IK10, | ||
Enclosure | Plastic PC940/ Galvanized steel | ||
Front Panel | Temper glass | ||
Installation | Wall-mount/Pole-mount | ||
Cooling | Natural cooling | ||
Operating temperature | -30℃to+55℃ | ||
Humidity | Max.95%(non-regulating) | ||
Product Dimensions | 320*230*100(L*W*H)mm | ||
Package Dimension | 480*340*290(L*W*H)mm | ||
Net Weight | 8Kg | ||
Gross Weight | 9Kg | ||
Commercial EV Charging Station Installation
This commercial EV charger offers two convenient installation options: Wall-mount Installation and Pole-mount Installation. Let’s take a look!
Option 1

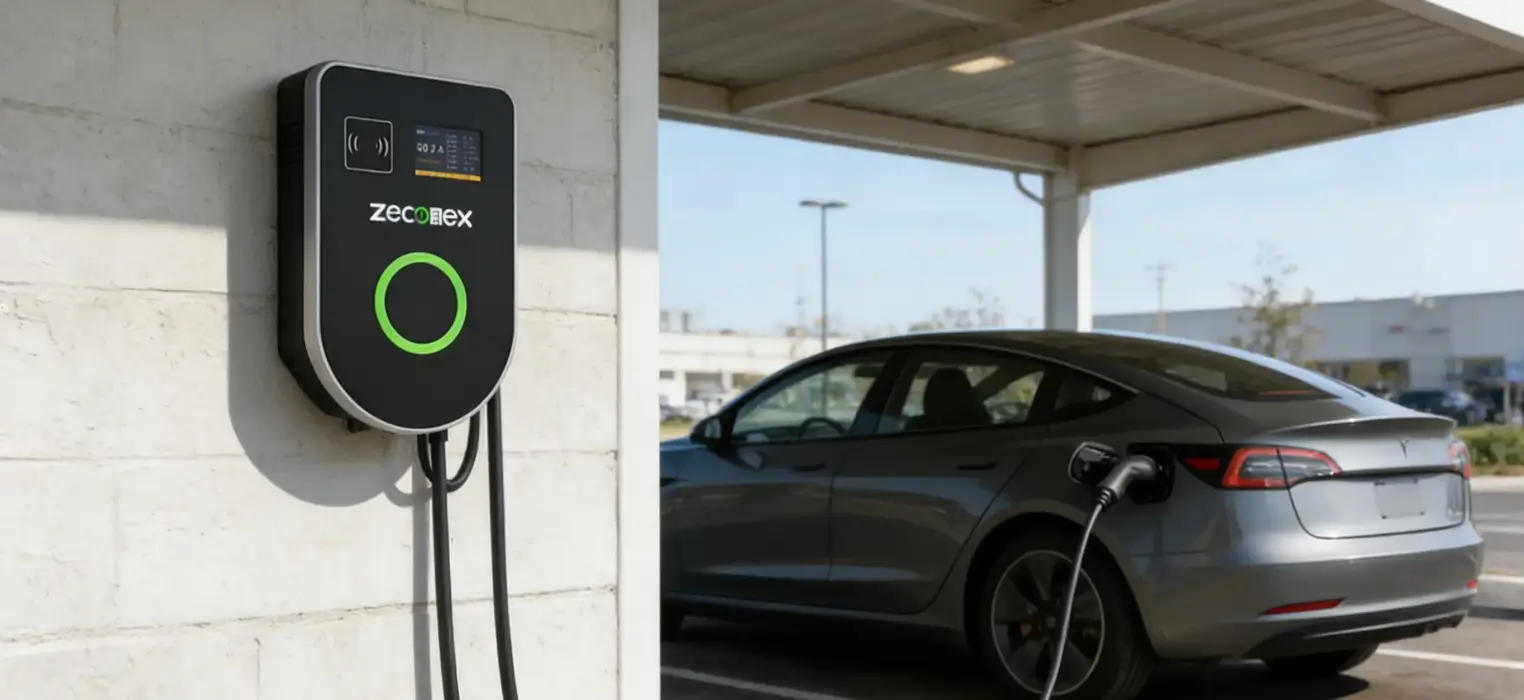

Wall-Mount Installation
Ideal for locations with existing walls or structural supports, this solution provides secure mounting while saving valuable floor space, making it well-suited for parking garages and areas with limited space. The wall-mounted design ensures easy access and convenient use for drivers, and typically requires less complex electrical wiring compared to pole-mounted installations.
Option 2

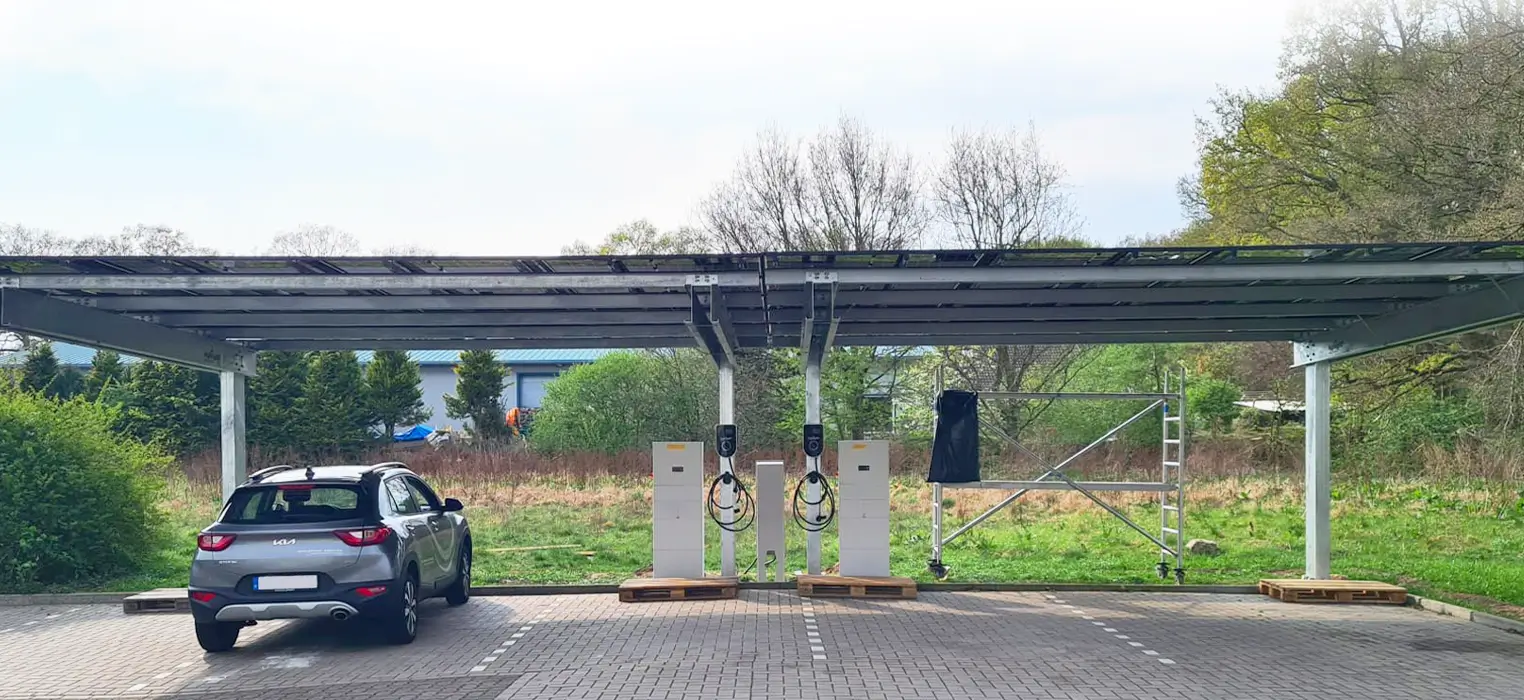

Pole-Mount Installation
Ideal for open parking areas or locations where wall mounting is not feasible, this solution provides greater charger visibility, helping attract more users in commercial environments. The freestanding design delivers a clean, uncluttered appearance—especially in large parking lots—and, depending on the distance from the power source, may require additional electrical conduit or trenching for wiring.
Product Applications
Shopping Centers
Equip your parking lot with a charger to attract eco-conscious customers and encourage longer visits. (7kW or 11kW suitable for most customer needs)
Companies and Hotels
Provide convenient charging options for employees, guests, or visitors with a fleet-friendly solution. (11kW or 22kW ideal for faster charging for company vehicles or valet services)
EV Dealerships
Showcase the latest EVs and offer on-site charging for test drives or customer convenience. (7kW or 11kW suitable for most EVs)
Residential Community Garages
Offer residents a convenient way to charge their EVs within their community. (7kW ideal for overnight charging)
Private Houses
Install a high-powered charger at home for quick charging of your personal EV. (22kW best for fastest home charging)
Service Workshops
Provide charging services for customers' EVs while they are being serviced. (7kW or 11kW suitable for most service needs)
Zeconex – Commercial EV Charger Manufacturer
The commercial level 2 EV charger equips your charging station with comprehensive protection features, including overcurrent, residual current, ground fault, surge, over/under voltage, over/under frequency, and over/under temperature protection.
It offers a variety of power options with adjustable output currents of 16A or 32A to meet the charging needs of a wide range of electric vehicles.
Meanwhile, flexible cable compatibility allows you to choose between Type 1 or Type 2 charging cables to support a wider range of EV models.
This commercial electric car charger is simple to operate, with easy start and stop charging using an RFID card, a simple HMI, and LED indicators.RFID authentication is an optional feature for plug-and-play convenience.
The intuitive interface provides easy interaction with a user-friendly OLED color screen that displays real-time charging status.
In addition, the commercial EV car chargers are cost-effective and offer competitive pricing, making electric vehicle charging accessible at home for both domestic and private use.
With a compact and lightweight design (only 5 kg), the commercial electric vehicle chargers are space-saving and can be seamlessly integrated into your garage or private parking area.
It supports flexible placement with options for wall or floor mounting for optimal convenience. Whether indoors or outdoors, its rugged IP54-rated construction ensures reliable operation in all weather conditions, while the IK10 impact rating provides additional peace of mind.
Best commercial EV chargers work reliably in extreme temperatures, with a range of applications from -30°C to 55°C.
EV chargers for business use have PC940 plastic and galvanized steel housings with tempered glass front panels to create a stylish and durable design that is suitable for any home environment.
Our Solutions For the Public
We provide everything that’s needed to build a charging business, from charging facilities to customer services and smart energy management solutions.
You can either manage your own network of charging stations or provide the service for other charger operators. All solutions are white-labelled and can be customized to meet your customers’ needs.
Comprehensive Support
Cloud Platform
Dedicated to enabling the future of e-Mobility with the most open, secure, and robust charging network, our cloud-based EV charging platform makes it easy for operators to manage and customize chargers to their exact needs.
We provide everything required to deliver a complete charging ecosystem, including a management system, mobile app, and seamless interoperability across networks and hardware.
OEM/ODM Service
Our experienced R&D teams in China and abroad specialize in international charging protocols, enabling us to provide reliable OEM and ODM services for clients worldwide.
Comprehensive After-sale Guarantee
If the product is damaged or malfunctions due to manufacturing defects, Zeconex will provide free maintenance or replacement of parts to ensure reliable long-term operation.
You May Also Like:
FAQ
What You May Want to Know About an EV Charger
The profit from a commercial EV charger depends on factors like usage fees, electricity costs, and any membership plans you offer. It's not a one-size-fits-all answer.
Commercial EV chargers come in various power levels (kW). The higher the kW, the faster the charging, but also the more electricity used.
The commercial EV charging market is rapidly growing due to increasing electric vehicle adoption.
Commercial EV chargers typically operate on high voltage (around 400V or higher) to deliver sufficient power for fast charging.
AC chargers—commonly known as Level 2 chargers—provide slower charging and are widely installed in workplaces, parking garages, and residential areas.
DC fast chargers (Level 3) deliver significantly faster charging and are typically used in public fast-charging stations, highways, and high-traffic commercial locations.
Commercial EV chargers typically include Level 2 (AC) and Level 3 (DC) options. Level 2 chargers are widely deployed in workplaces and parking facilities, while Level 3 DC fast chargers offer the fastest charging speeds for high-traffic commercial locations.
The power requirement for your station depends on the chosen charger type (AC/DC) and desired charging speed (kW). Consult Zeconex for specific needs.
