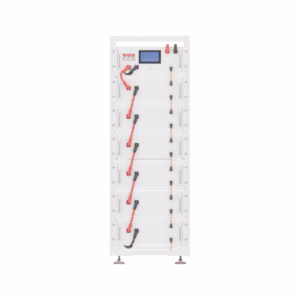

200V-614V High Voltage Energy Storage Batteries
Features
Contact Us For Bulk Order Price
Description
We are proud to introduce to you our newest line of 200V to 614V high voltage energy storage batteries. Designed to meet modern industrial, commercial and domestic energy storage needs, these batteries stand out from the crowd of energy storage solutions with their superior performance, stability and environmental friendliness.
This 200V to 614V high voltage energy storage battery is designed for modern energy storage needs, incorporating advanced energy storage technology and intelligent management systems. It not only provides stable and efficient energy support, but also has excellent environmental friendliness and reliability, making it an ideal choice for a variety of applications.
We sincerely invite you to experience our high voltage energy storage battery series, which we believe will bring you more convenient, efficient and environmentally friendly energy storage solutions for your business or personal life. If you have any questions or needs, please feel free to contact us.
Tech Specs
Model | ZECO-RBG1-64S100BL-U | ZECO-RBG1-96S100BL-U | ZECO-RBG1-128S100BL-U | ZECO-RBG1-192S100BL-U |
|---|---|---|---|---|
Number of Modules | 4 | 6 | 8 | 12 |
Energy Capacity (Ah) | 100 | 100 | 100 | 100 |
Standard Voltage (V) | 204.8 | 307.2 | 409.6 | 614.4 |
Rated Energy (KWh) | 20.48 | 30.72 | 40.96 | 61.44 |
Product Dimensions (L×W×Hmm) | 548×584×1500 | 548×584×1500 | 548×584×1950 | 548×584×2750 |
Net Weight (Kg) | 235 | 340 | 425 | 595 |
Standard Charge Current (A) | 20 | 20 | 20 | 20 |
Maximum Discharge Current Product Model (A) | 100 | 100 | 100 | 100 |
IP Protection | 21 | 21 | 21 | 21 |
Battery Type | LFP | |||
Nominal Voltage (V) | 51.2 | |||
Operating Voltage Range (V) | 42~58.4 | |||
Communication | CAN/RS485 | |||
Installation | Cabinet holding | |||
Operating Temperature | Charging: 0~60°C; Discharge: -10~60°C | |||
Product Advantages
Higher Cycle, Longer Life
Grade A cells, high charging and discharging efficiency, more than 6000 cycles
BMS Intelligent Protection
Overcharge, overcurrent, overdischarge, overvoltage protection ...
Modular Design
Modular design, parallel expansion, flexible choice of voltage and capacity
LCD Display
Monitor the operating status data of the ESS system in real time
Convenient Installation
Quick installation with standard 19-inch module, easy for installation
RS485/CAN Communication
It supports RS485 and CAN communication at the same time
Wholesale Batteries Advantage
Favorable price
We offer wholesale battery storage prices in large quantity, so that you can enjoy a more affordable price while enjoying high quality products.
Fast delivery
We have a perfect supply chain system to ensure that orders can be processed and shipped quickly to meet your urgent needs.
After-sales service
We provide a professional after-sales service team, ready to answer your questions in the process of use, to ensure your use without worry.
Application Scenario
High-voltage cabinet batteries can be stacked, and the main use areas are as follows：
Precautions
Schematic Diagram
