Description

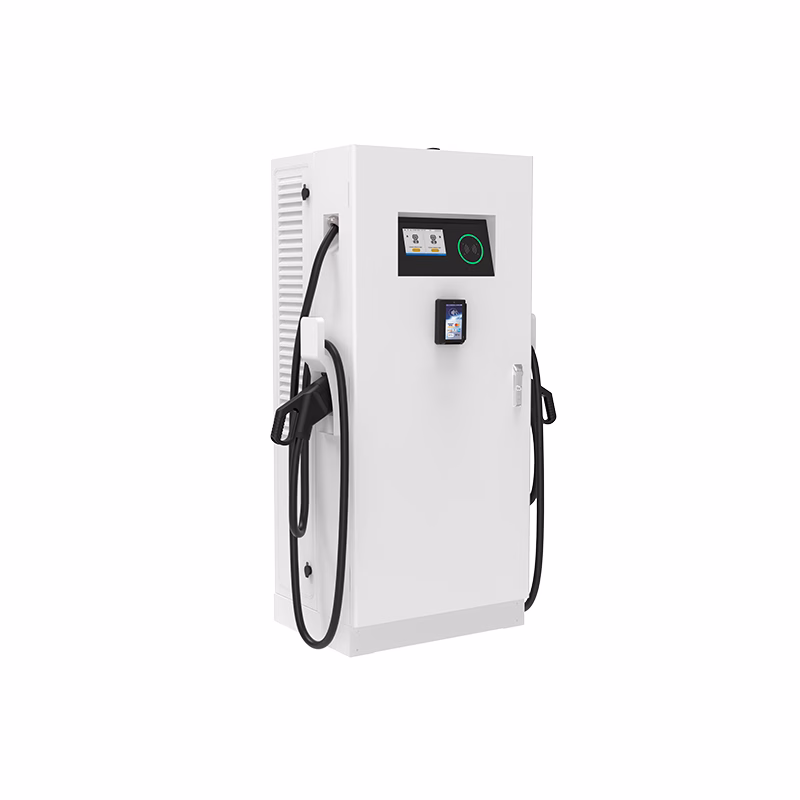

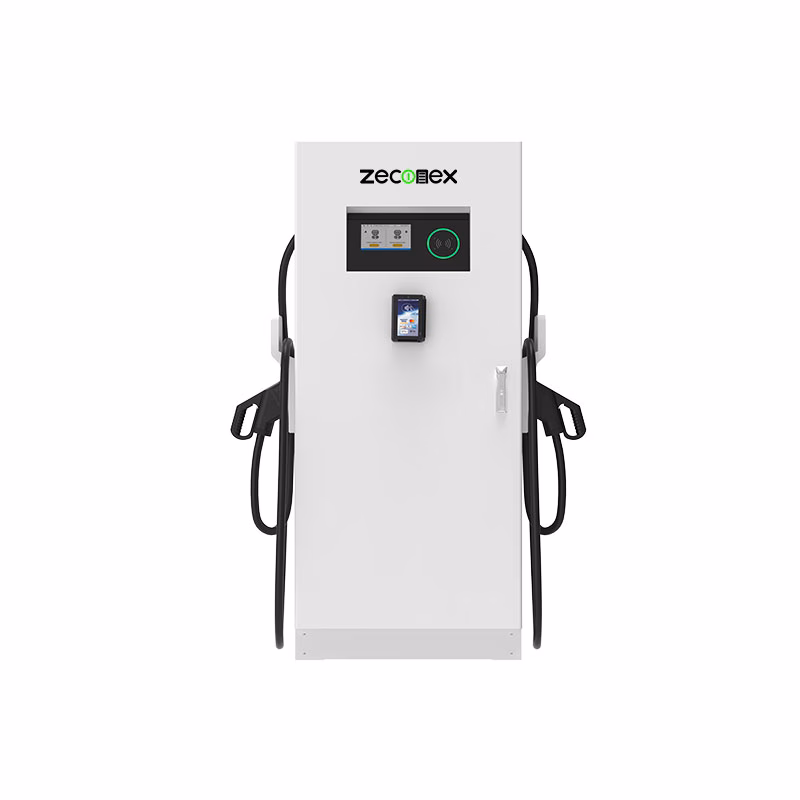

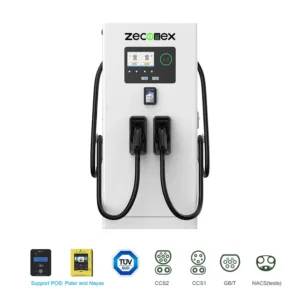

The Level 3 DC Fast Charger is suitable for fast charging of all kinds of new energy vehicles, IP54 protection level, can resist dust and water splash.Level 3 DC Fast Charger supports 120kW/160kW/180kW/240kW charging power level, to meet the charging needs of different electric vehicles. The rated voltage is DC, which meets the demand of high power fast charging and greatly shortens the charging time.Level 3 DC Fast Charger is equipped with perfect protection functions to ensure charging safety, and it is equipped with 7-inch touch screen / RFID card / APP and other human-machine interaction methods, which is convenient for users to use. The Level 3 DC Fast Charger is CE certified to meet relevant safety and electrical standards and comes with a two-year warranty.
Benefits of using the Level 3 DC Fast Charger
Saves time.
The main advantage of DC fast charging is the significant time savings it offers. If you're on a road trip or need to quickly top up your battery before an appointment, DC fast charging is the way to go.
Convenience.
DC fast charging stations are becoming increasingly common, especially along major highways and in urban areas. This makes it easy to find a station when you need it.
Reduces range anxiety.
With the ability to quickly charge your battery, DC fast charging can help reduce range anxiety, the fear of running out of power before reaching your destination.
Tech Specs
Model | ZECO120K-D4 | ZECO160K-D4 | ZECO180K-D4 | ZECO240K-D4 |
|---|---|---|---|---|
Technical features | ||||
Input / Output Power | 400VAC±10%-50/60Hz-3phase | |||
Max Power | Up to 120KW | Up to 160KW | Up to 180KW | Up to 240KW |
Power Factor | ≥0.98 | |||
Efficiency | >95% | |||
Measuring Accuracy | Level 0.5 | |||
Output Voltage Range | CCS: 250~1000VDC | |||
Output Current Range | 0-250A | |||
Communication | PLC (between charger & vehicle) Ethernet / 4G / OCPP 1.6J (Optional) | |||
User Interface | LCD 7 Inch Touch Screen / RFID Card and APP | |||
Versatility | EN / IEC 61851-1: 2019, EN / IEC 61851-23: 2014 | |||
Security Design | Over / under voltage protection, overload protection, current leakage protection, grounding protection,lightening surge protection | |||
DC Plugs | CCS2 Cable 5M or 7M (Optional) | |||
Energy Meter | CE certified | |||
RCD | Type A or Type B (Optional) | |||
Physical Properties | ||||
Warranty | 2 Years | |||
Cooling | Air Cooled | |||
IP Level | IP54 | |||
Sound Noise | <70DB in all Directions | |||
Operating Temperature | -20。C to +50。C | |||
Humidity | Max.95% (Non-Regulating) | |||
Dimensions | 750*770*1750mm | |||
Package Dimension | 800*850*1950 (L*W*H) mm Wooden Packing | |||
What is DC Fast Charger?
A DC fast charger, also known as a Level 3 charger. DC fast chargers typically have power outputs ranging from 50 kW to 350 kW, and they are commonly found at public charging stations or along highways for long-distance travel. Using a DC fast charger, you can significantly reduce the charging time of an EV compared to using a Level 1 or Level 2 charger.
DC fast chargers can charge a battery from 0% to 80% in just a few minutes, making them ideal for long trips or when you need to charge your battery quickly. DC fast chargers are typically smaller and lighter than AC chargers, which makes them easier to carry and use. DC fast chargers have several safety features to prevent the battery from overheating or damage.
DC fast chargers are typically more expensive than AC chargers. Not all EVs are compatible with DC fast charging. DC fast chargers are not yet as common as AC chargers, so you may need to plan your route to make sure you find one when you need one. DC fast chargers are a valuable tool for EV owners and can help you charge your battery quickly and easily.
Pros and Cons of Level 3 DC Fast Charger
Advantages of Level 3 DC Fast Charger:
Fast charging: Fully charged in 30 minutes
Convenient: Suitable for scenarios that require fast charging
Efficient: Reduces charging losses
Disadvantages of Level 3 DC Fast Charger:
Expensive: DC fast charging pile cost more than home chargers
Scarcity: DC fast charging pile are not as popular as home chargers
Things to Note When Choosing a Level 3 DC Fast Charger
Vehicle Compatibility: Make sure the charger is compatible with your electric vehicle
Charging power: Choose the charging power that matches your needs
Charging time: Understand the charging time required by chargers of different powers
Cost and Affordability: Consider the cost of purchasing and using a charger
Availability and location: Choose a charger location that’s convenient for you
It's important to note that the specific installation process may vary depending on factors such as the type of charging station, your location, and any local regulations. It is recommended to consult with a professional electrician or an experienced installer for guidance specific to your situation.When purchasing related products at Zeconex, we will provide you with all relevant guidance, and you are welcome to come for consultation.
Become a Zeconex Distributor
We offer favorable prices, discount incentives for distributors, contact our sales team for a quote and we provide you with technical support.
After-sales service:
Warranty: We provide 2 years warranty for our products to ensure that our resellers' customers can have a good experience.
Technical Support: We provide technical support to our dealers to help them install and use our products.
Mobile App
The charging App connects EV drivers with charging stations, so that they can easily fifind a charger and enjoy the charging service. It enables users to do location search, charging monitor and payment settlement. All is done in a mobile phone.
Product Applications
Transportation
Highway Charging Station - Level 3 DC Fast Charger meets the demand for fast charging of new energy vehicles for long-distance travel.

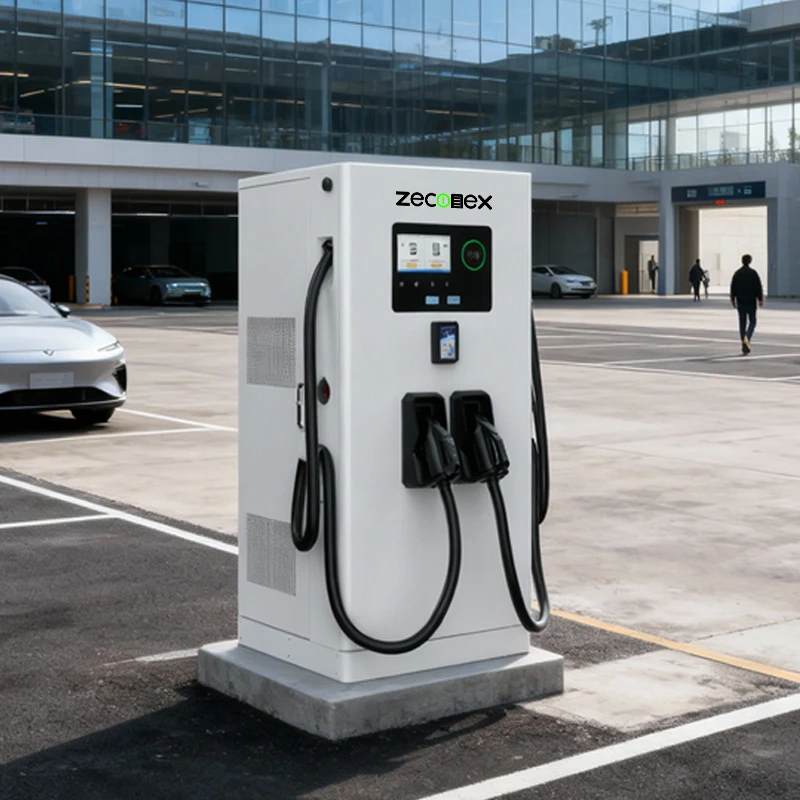

City public charging station - level 3 fast charger provides convenient charging service for new energy vehicles in the city.
Bus and Taxi Charging Station - fast charger improves the operation efficiency of buses and cabs.
Logistics and Cargo Charging Stations - Level 3 DC Fast Charger meets the fast charging needs of logistics and cargo vehicles.
Public Places

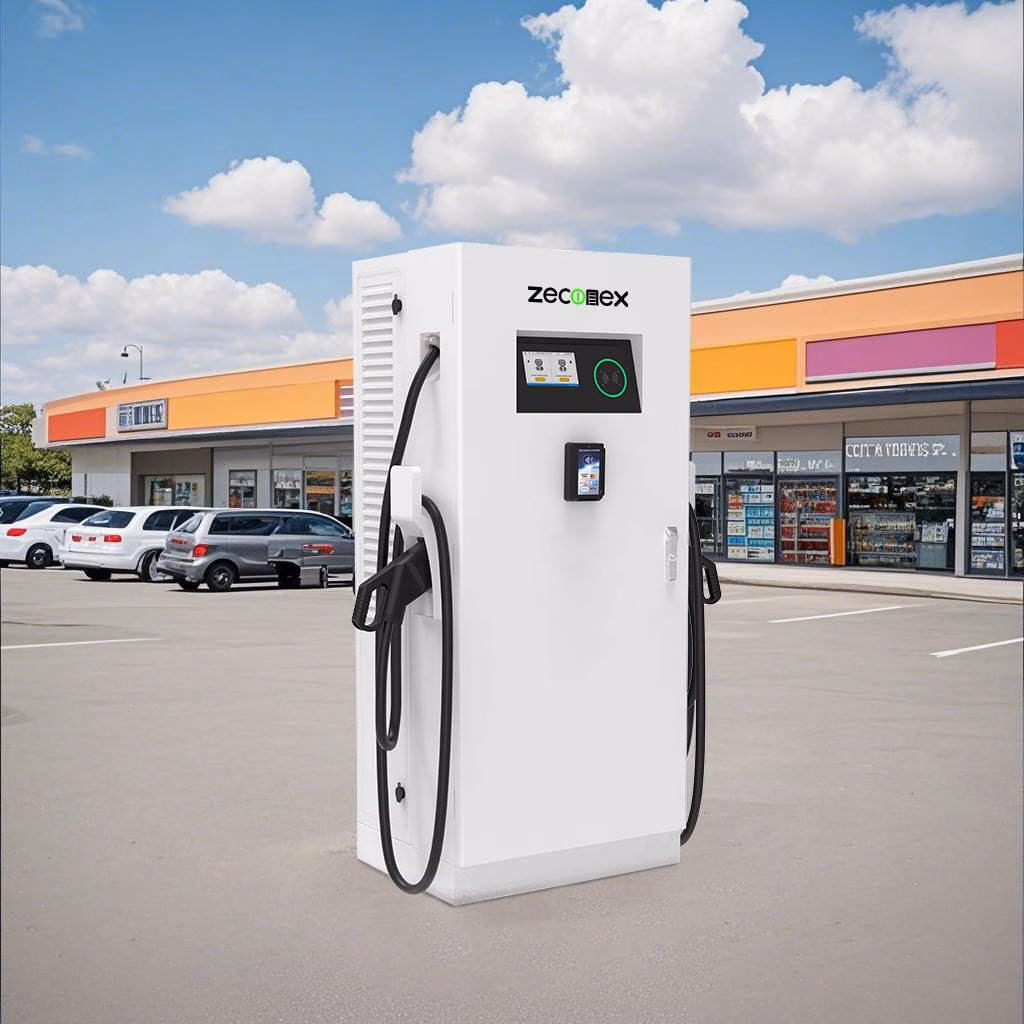

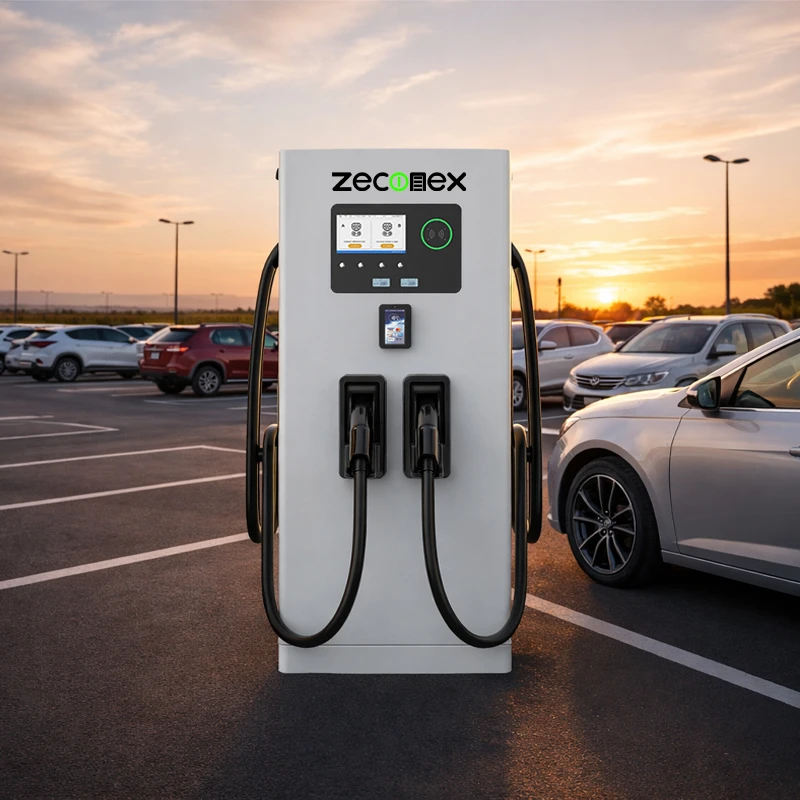

Shopping malls and supermarket parking lots - Level 3 DC Fast Charger facilitates shopping for new energy vehicles.
Office Building Parking Lot - Level 3 fast charger provides charging service for new energy vehicles commuting.
Tourist attraction charging station - fast charger provides charging service for new energy vehicles for sightseeing.
Airport and railway station charging station - Level 3 DC Fast Charger provides charging service for new energy vehicles travelling.
Other areas
New Energy Vehicle Manufacturing Plant - Level 3 DC Fast Charger provides charging service for testing and delivery of new energy vehicles.
Automobile repair shop - fast charger provides charging service for the maintenance of new energy vehicles.
Residential charging station - Level 3 DC Fast Charger provides charging service for new energy vehicle owners at home.
