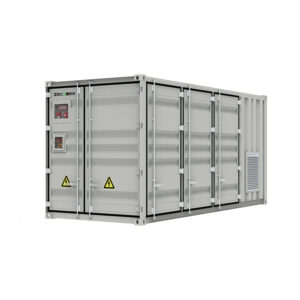

Containerized Energy Storage System 500KW / 1075KWH
Features
Contact Us For Bulk Order Price
Description
In this era of increasing energy demand, Zeconex, as a leading supplier of energy storage systems in China, is proud to introduce to you our flagship product, the 500KW / 1075KWH integrated energy storage system. This containerized energy storage system not only integrates the most advanced technology, but also becomes the global leader in the field of energy storage with its excellent performance, efficient energy management and unparalleled reliability.
Containerized Energy Storage System 500KW / 1075KWH, Zeconex creates efficient and reliable energy storage solutions for you!
The system integrates energy storage converter, storage battery, isolation transformer, cooling, fire protection, power distribution, dynamic loop monitoring and energy management, friendly grid adaptability, accepting grid scheduling, active and reactive power compensation, supporting peak shaving and valley filling, demand-side response, and assisting in new energy grid-connected applications, etc. The IP54 protection level adapts to the harsh outdoor environment, which is perfectly suited to the needs of industrial and commercial energy storage.
In common application scenarios, the operation strategies of energy storage systems are as follows
Peak shaving and valley filling
During off-peak hours of time-of-use electricity pricing
The energy storage unit automatically charges and goes into standby mode after being fully charged.
During peak hours of time-ofuse electricity pricing
The energy storage unit automatically discharges, realizing arbitrage based on the price difference between peak and off-peak hours, thereby enhancing the economic benefits of the photovoltaic (PV) + energy storage + charging system.
PV and energy storage integration
Real-time monitoring of local load power is conducted, with PV power generation prioritized for self-consumption, and excess power stored. If the PV power generation is insufficient to meet local load demand, battery storage is preferentially utilized. When the off-grid battery discharges to the set lower limit of the State of Charge (SOC), manually trip the grid power switch and close the diesel generator switch to start the diesel generator and continue supplying power to the load.When grid power is restored, manually trip the diesel generator switch and close the grid power switch, allowing the system to operate in grid-connected mode.
Tech Specs
Mode | 500kw/1075kWh |
|---|---|
Battery parameters | |
Battery rated capacity | 215kWh*5 |
Battery voltage range | 672~864V |
Battery pack series and parallel connection | 1P*20S*12S |
Maximum charge/discharge current | 140A |
Adaptive battery | LFP |
Cell Capacity | 280Ah |
PV Parameters | |
Maximum PV input voltage | Battery minimum voltage -50V |
PV Input power | 500kW |
AC-side parameters (Off-grid) | |
Rated AC voltage | 500kW |
Rated AC frequency | 50/60Hz (±5Hz) |
THDU | <3% (Linear Load) |
Overload capacity | 110%, normal operation; 120%, 1 minute |
General parameters | |
Degree of protection | IP20 (Indoor) |
Protective Class | / |
Isolation mode | Transformer isolation |
Shutdown self-discharge | <100W (Without transformer) |
Display | LCD |
Relative humidity | 0 ~ 95% (no condensation) |
Noise | <78dB |
Ambient temperature | -25°C to +60°C(derating above 45°C) |
Cooling mode | Intelligent air-cooled |
Altitude | 2000m (> 2000m reduction) |
Communication interface | Rs485 / CAN |
Dimensions (W*D*H) | 1200*1000*2300mm(Energy Storage Converter) 1200*800*2100mm(PV Converter) 12192*2438*2896mm(Container) |
Weight (approx.) | ~17.5t |
Product Features
Diverse Functions of Energy Storage Systems
Energy storage systems supports peak shaving and valley filling, demand-side response, backup power supply, and other major functions, it enables remote updates of operational strategies and firmware upgrades, resulting in lower operation and maintenance costs.
High Integration of Energy Storage Systems
The energy storage systems is productized, integrating energy storage batteries, PCS (Power Conversion System), power distribution, temperature control, fire protection, water immersion door sensors, and monitoring communication, providing comprehensive controlover the system's operational status and risks. One-stop delivery shortens the on-site installation and commissioning period of the project.
Flexible and Convenient Energy Storage Systems
Modular PCS allows for linear expansion of battery units and bidirectional energy storage inverter units. Energy storage systems possess independent charging and discharging control capabilities for multiple battery packs, enhancing battery utilization and safety.
Safe and Intelligent Energy Storage Systems
A fault escalation handling mechanism responds to preset fault scenarios. Customized BMS (Battery Management System) provides comprehensive measurement and protection functions. Energy storage systems support cloud-based dispatching and operational report analysis.
Product Applications
Peak and valley arbitrage.
Charge at the time of low price and discharge at the time of peak to reduce the cost of electricity.
Peak reduction and valley filling
To calm the load on the power grid and improve the stability of the power grid.
Backup power
Provide emergency backup power to ensure continuous power supply for important loads.
New energy consumption
Improve the utilization rate of new energy generation such as photovoltaic and wind power.
Microgrid
Serve as the energy storage center of microgrid, improve the stability and self-sufficiency of microgrid.
Electric vehicle charging
Provide fast charging service for electric vehicles.
Similar Project Case
Join hands with Zeconex to create a green future!
As a leading global supplier of energy storage systems, Zeconex is committed to providing customers with efficient, reliable and sustainable energy solutions through our global service network, which can provide you with timely and professional technical support and after-sales service. Our 500KW / 1075KWH integrated energy storage system not only has excellent performance and unique advantages, but also can bring you considerable economic and social benefits. We invite buyers from all over the world to join hands with containerized energy storage systems to promote the development of the global energy storage industry and create a green and sustainable future. Welcome to inquire battery energy storage system container price.
FAQs of Interest to Purchasers Buying Wholesale
How to choose a containerized energy storage system?
When choosing a 500 kW / 1075 kWh containerized energy storage system, you need to consider your application scenarios, equipment performance, system security, scalability, vendor reputation and many other factors. Ensure that the system you choose can meet your long-term needs and provide adequate support and service guarantees.
How do I choose a battery type for containerized energy storage system?
Lithium-ion batteries are currently the most common and widely used option for most high-efficiency and high-power energy storage needs. For tighter budgets or application scenarios that do not require high energy density, lead-acid batteries can be considered.
How do I choose containerized energy storage systems for my application needs?
Choosing the right Containerized Energy Storage System for your needs starts with defining your specific application scenario. Based on various factors such as power demand, capacity demand, charging and discharging frequency, grid interaction demand, environmental factors, etc., you can filter out the most suitable system configuration.
Common application scenarios
Backup power
The system needs to provide hours to days of backup power.
Peak and valley tariff arbitrage
The system needs to dynamically adjust charging and discharging according to tariff fluctuations.
Renewable Energy Integration
Supported with solar, wind, etc. to store excess energy for balancing demand and supply.
Virtual power plant
interacts with the grid to regulate load as part of distributed energy.
Power Scheduling and Load Balancing
Supporting grid operations through frequency regulation, load balancing, and more.
When choosing, work with a Zeconex system supplier to tailor an energy storage solution that meets the needs of your application.
What are the advantages of the 500KW/1075KWH integrated energy storage system?
The 500KW/1075KWH integrated energy storage system provided by Zeconex utilizes industry-leading battery integration technology and high-voltage platforms, featuring high safety, high reliability and high capacity. Our energy storage system undergoes rigorous safety inspections and fire protection system configurations to ensure stable and reliable operation.
In addition, the system also supports intelligent control, which can distribute and manage power according to user demand, realize peak and valley arbitrage, new energy consumption and other functions, helping enterprises reduce costs and increase efficiency and green low-carbon development.
What are the success stories of Zeconex commercial energy storage systems?
Zeconex has many success stories in the field of commercial energy storage systems. For example, we have provided customized energy storage solutions for several industrial parks and data centers to help them achieve self-sufficiency and efficient use of power.
In addition, we have also participated in the construction of energy storage systems for several new energy generation projects, providing strong support for the grid connection and dispatch of renewable energy. These successful cases fully prove Zeconex's strength and reputation in the field of commercial energy storage systems.
Power storage systems/electrical energy storage systems support customization?
Yes, Zeconex power storage systems support customization. With our professional R&D team and rich production experience, we are able to provide a full range of services from design, equipment selection to installation and commissioning according to customers needs.
Whether it is for the capacity, voltage level or control strategy of the storage system, we can provide individualized customized solutions to meet the power storage needs of different customers.
