Slimline Powerwall Battery PWG4
Features:
Contact Us For Bulk Order Price
Description

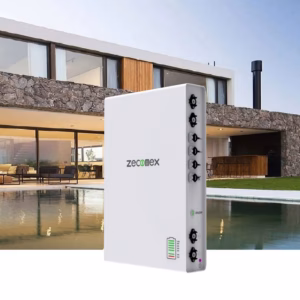

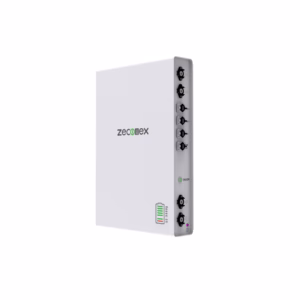

The Slimline Powerwall Battery PWG4 is an energy storage battery designed for the modern home that combines high performance, aesthetics, and safety to provide a new solution for home electricity use.

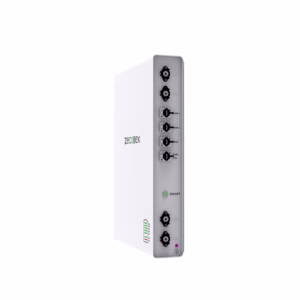

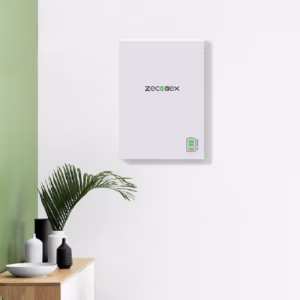

The PWG4 adopts an ultra-thin wall-mounted design, which not only saves space, but also fits perfectly into various environments, and is equipped with a highly stable Battery Management System (BMS) with multiple protections for over-charging, over-discharging, over-current, high and low temperatures, and so on.
Powerwall Battery PWG4 with LED display, can real-time display of the battery voltage, current, temperature and other key information. PWG4 maximum support for 15 groups in parallel, this feature makes it able to cope with a long time, high-intensity power environment.
Powerwall Battery PWG4 is compatible with the mainstream brands of inverters on the market, providing users with more space for choice. Whether it's for daily home use or emergency backup power, PWG4 can provide stable and reliable power support.
If you are looking for a reliable home energy storage battery, PWG4 is the ideal choice.
Tech Specs
Model | ZECO2560-PWG4 | Remark |
|---|---|---|
Nominal Energy | 2560Wh | Standard charging and discharing mode test |
Series parallel connection | 8 strings 1 combined | 8S1P |
Nominal capacity | 100Ah | Standard charging and discharging mode test |
Nominal voltage | 25.6V | / |
Operating voltage range | 20～29.2V | Temperature range :-20~65℃ |
Operating temperature （charging) | 0~65℃ ≤90%ROH | |
Operating temperature (Discharging) | -20~65℃ ≤90%ROH | |
Standard charging | Constant current charging: 50A Charging voltage: 29.2A Cut off current: 5A | Maximum unit voltage 3.65V |
Maximum continuous charing current | Constant current charging: 100A Charging voltage: 29.2A Cut off current: 5A | Maximum unit voltage 3.65V |
Standard discharging | Constant current discharge：50A Cut off voltage: 20V | T ≥0℃ Minimum monomer voltage 2.5V |
Maximum continuous discharge current | Constant current discharge：100A Cut off voltage: 20V | T ≥0℃ Minimum monomer voltage 2.5V |
Storage temperature | -20~65℃ | Storage environment humidity≤95%ROH, no condensation |
Cycle life | Capacity decay to 80Ah, Number of cycles ≥ 6000 | 90% DOD, @25±2℃，standardcharging and discharging mode |
Monthly self discharge | ≤2.5% Per month | After three months shipment, the battery will be charged to 40% SOC and stored at @ 25.2℃ |
Monitoring communication | RS232/RS485/CAN | |
Balanced approach | Passive equalization | |
Shipping capatity | SOC 30~70% (TBD) | SOC 30~70% (TBD) |
Weight | 24.3±2Kg | |
Size(LxWxH) | (375x92.5x560) ±1mm |
Product Storage
- 1The external terminals of the battery pack are in an insulated and protected state.
- 2Battery packs with a storage period of more than 6 months should be replenished accordingly, turn on the battery switch, the indicator light is on, when the power is 30%-50%, charge with 0.2C for 1 hour; when the power is 30% and below, charge with 0.2C for 3 hours.
- 3Don't store or place the battery under 60 degrees high temperature for a long time, otherwise it will cause function decline and life span reduction.
Installation Precautions
(1) Unpack the box, check the number of accessories and the appearance of the battery before installation.
(2) Hang the bracket, read the battery voltage on the display, generally the factory voltage is between 25.2V-26.75V (20%-60%).
(3) Check the positive and negative terminals of the battery before wiring, it is strictly prohibited to reverse the positive and negative terminals when installing the battery.
(4) Wear protective gloves during the battery connection process. When using metal tools such as torque wrenches, please insulate and pack the metal tools to avoid the ends of torque wrenches and other metal tools touching the positive and negative terminals of the battery at the same time, which may cause the battery to be short-circuited.
(5) Before connecting the battery to external equipment, disconnect the equipment and check the polarity and total voltage of the battery again to see if they are correct. Then connect the positive terminal of the battery to the positive terminal of the equipment, and the negative terminal of the battery to the negative terminal of the equipment, and fasten the connecting wires.
(6) Batteries must be handled and placed gently, and it is strictly prohibited to drop, impact, throw or knock the batteries to avoid damage to the batteries or lead to potential safety hazards.
(7) Prohibit the use of sharp parts of the tool to contact the surface of the battery box, scratches or damage to the battery box.
(8) Do not disassemble the battery box.
(9) Do not put any metal or electrically conductive objects together with the battery or assemble them into the battery box.
(10) Make sure the wall meets the wall mounting requirements before installation.
Structural Dimensions
Product Packaging
Lithium iron phosphate battery packs are packaged as a whole to ensure that the products are protected from harmful gases, chemical contamination, static electricity, humidity and mechanical damage during handling, transportation and storage.
Product Transportation
The battery handling process should pay attention to the following aspects:
(1) It should be gently held and put down to avoid the equipment being subjected to violent vibration.
(2) It is prohibited to invert, roll, drop or hit the battery to avoid damaging the appearance of the battery.
(3) The battery should avoid exposure to sunlight and rain, and it is prohibited to directly submerge the battery as a whole into water.
(4) Prohibit positive and negative short circuits.
