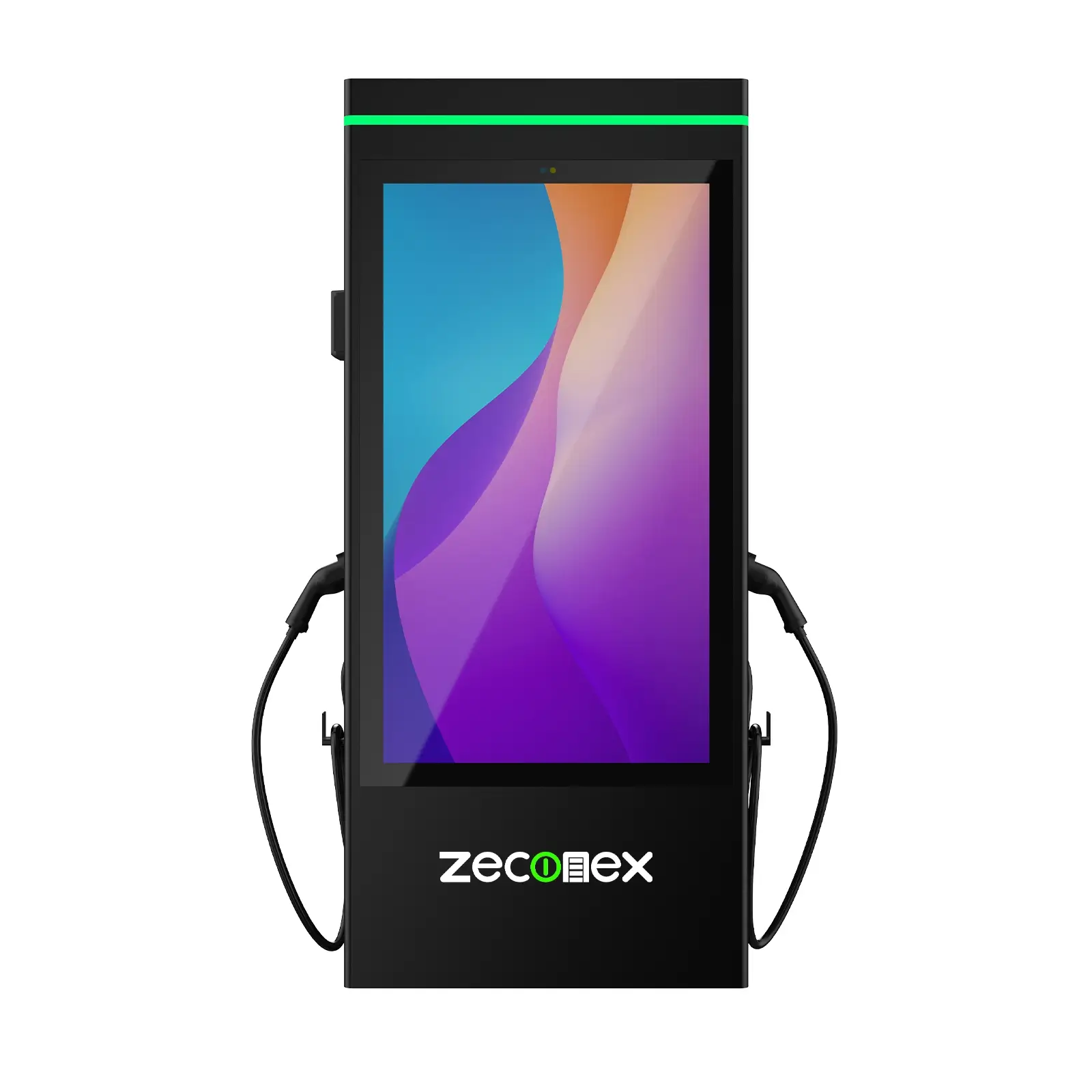

Commercial Advertising AC charger 14-44kW
Features:
Contact Us For Bulk Order Price
Description

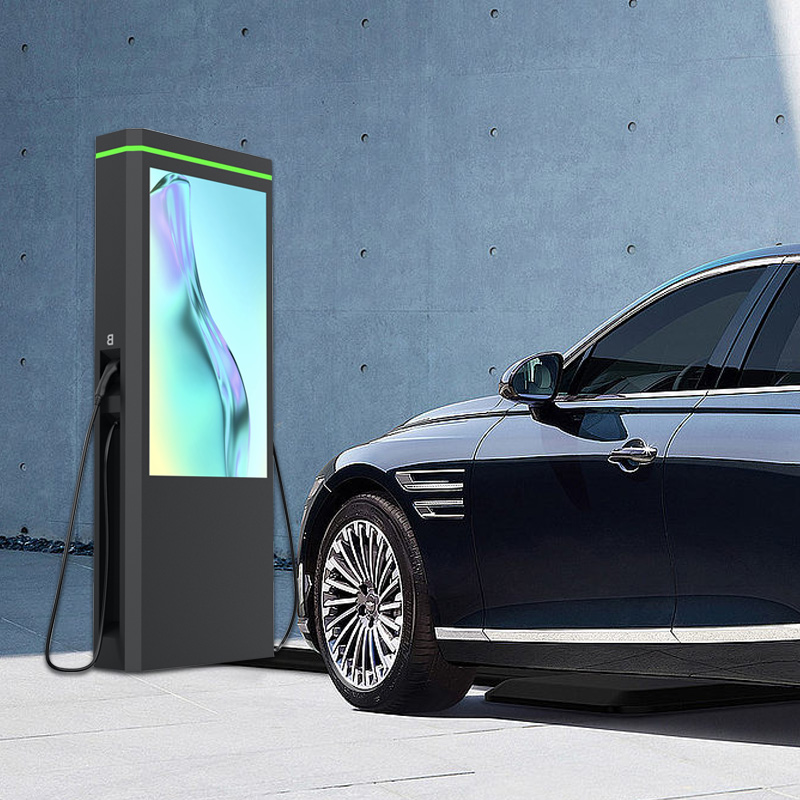

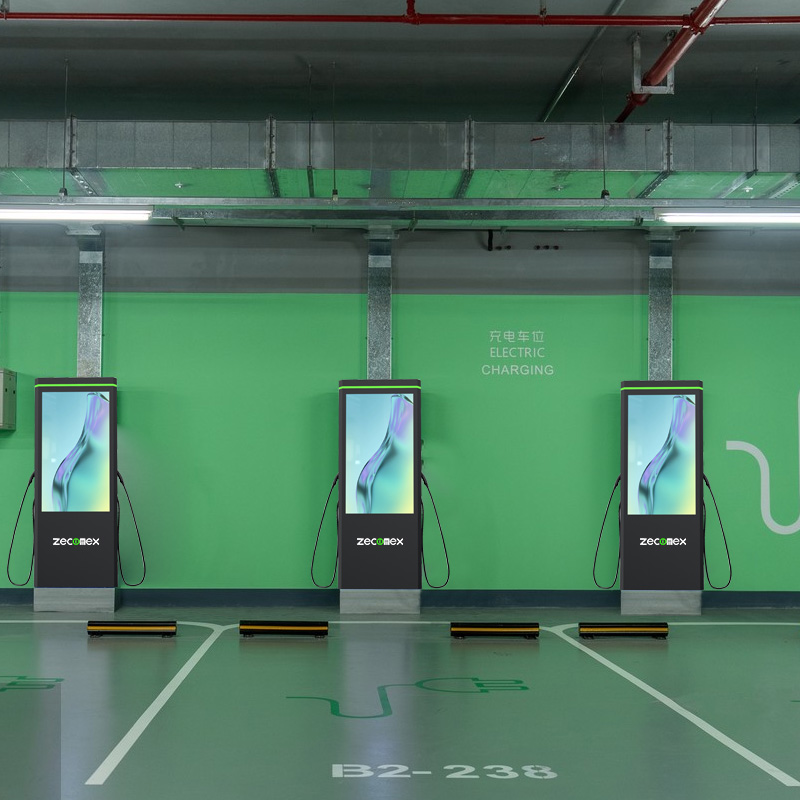

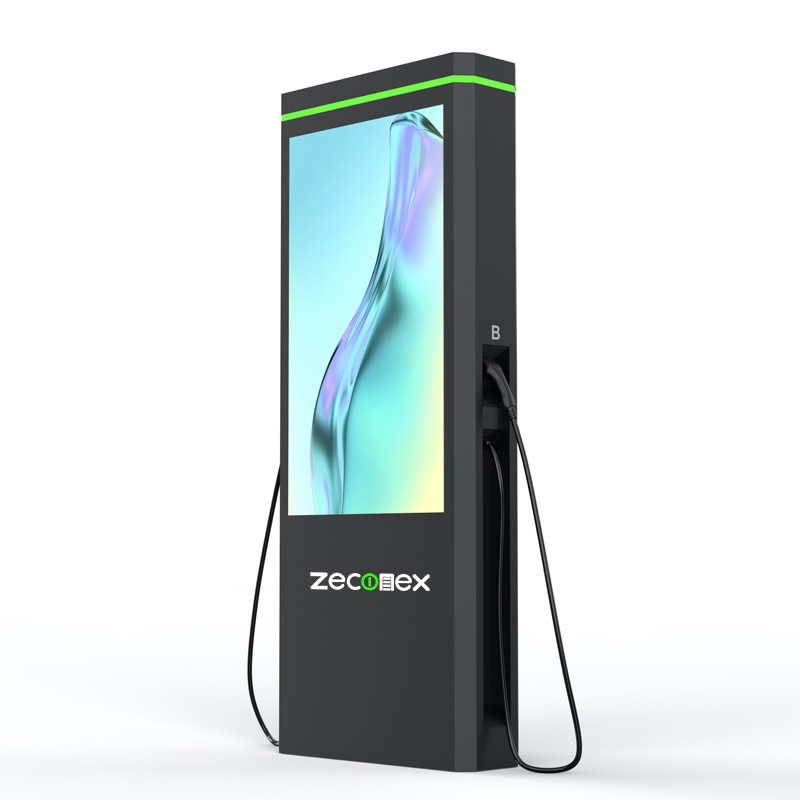

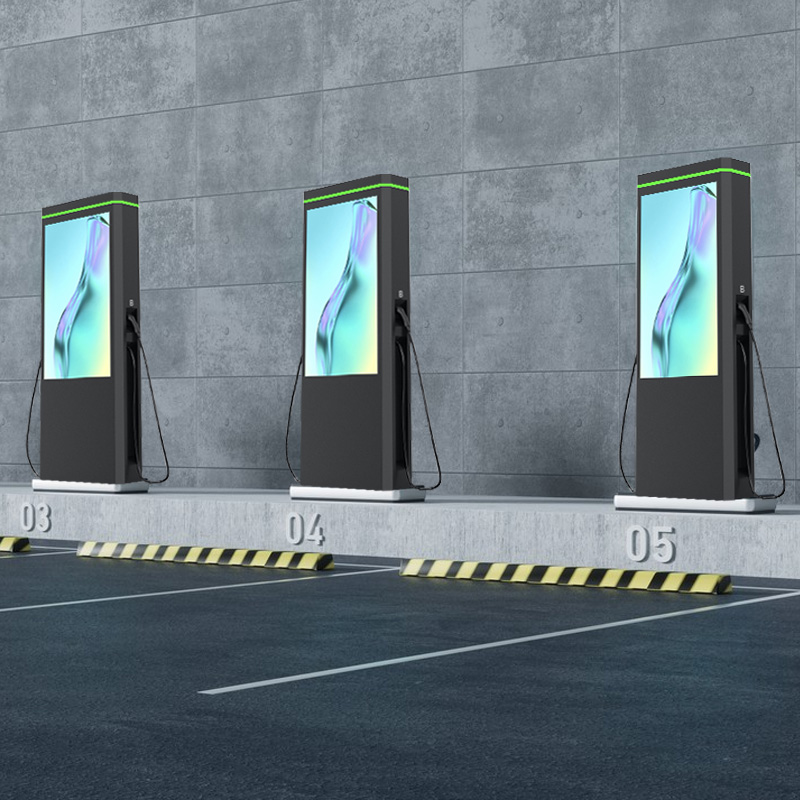

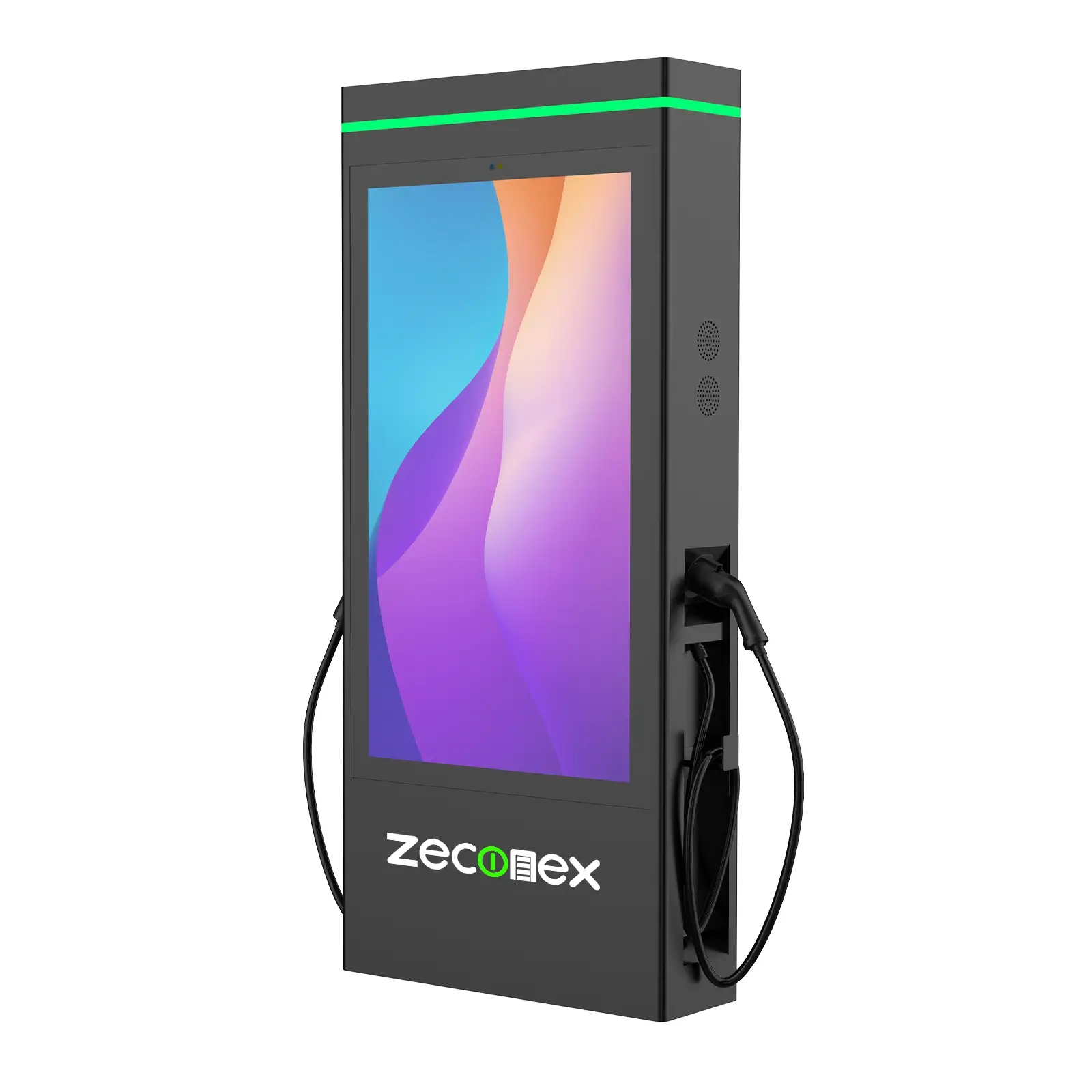

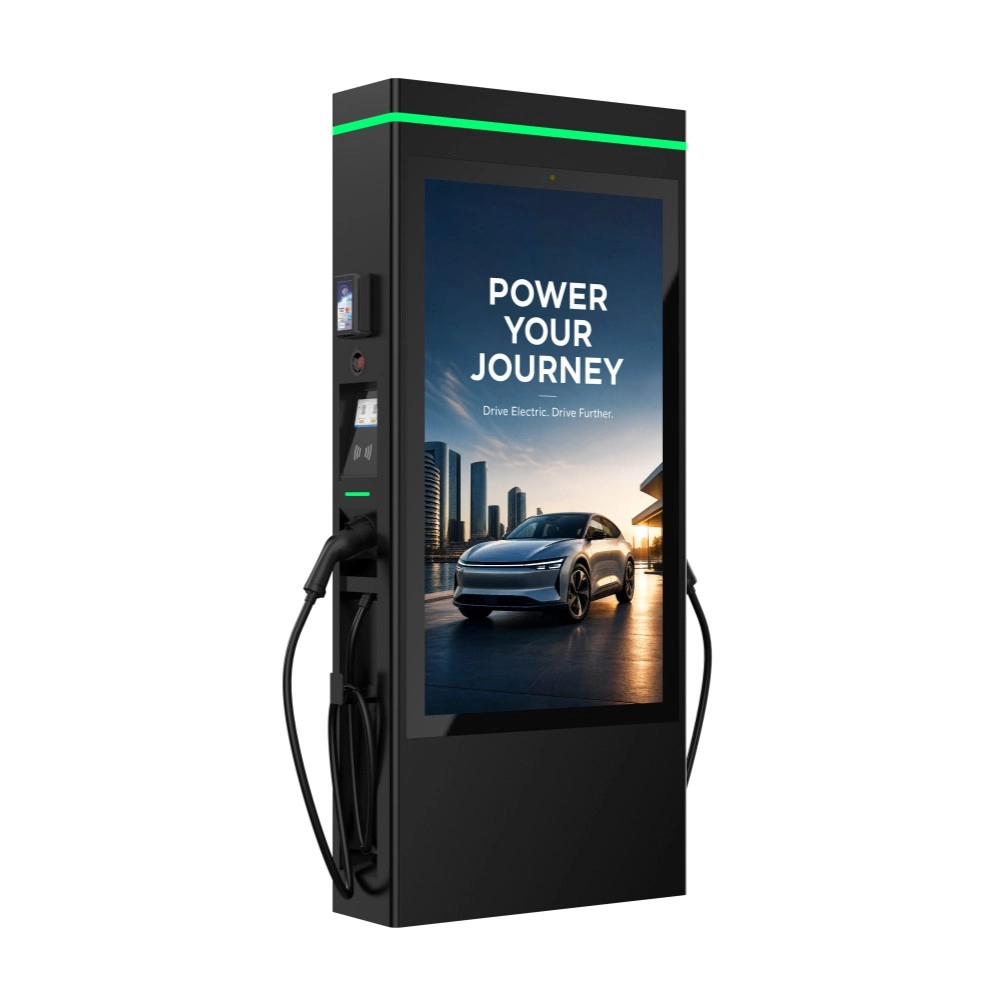

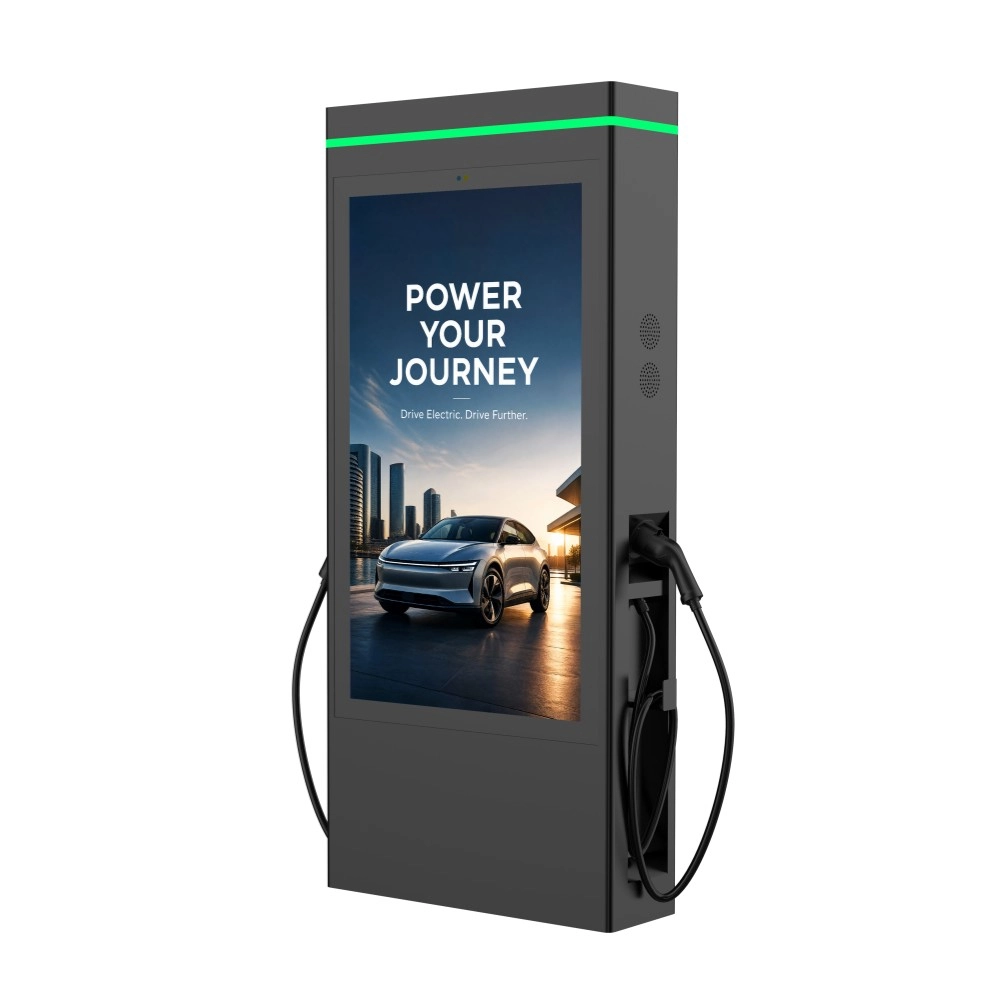

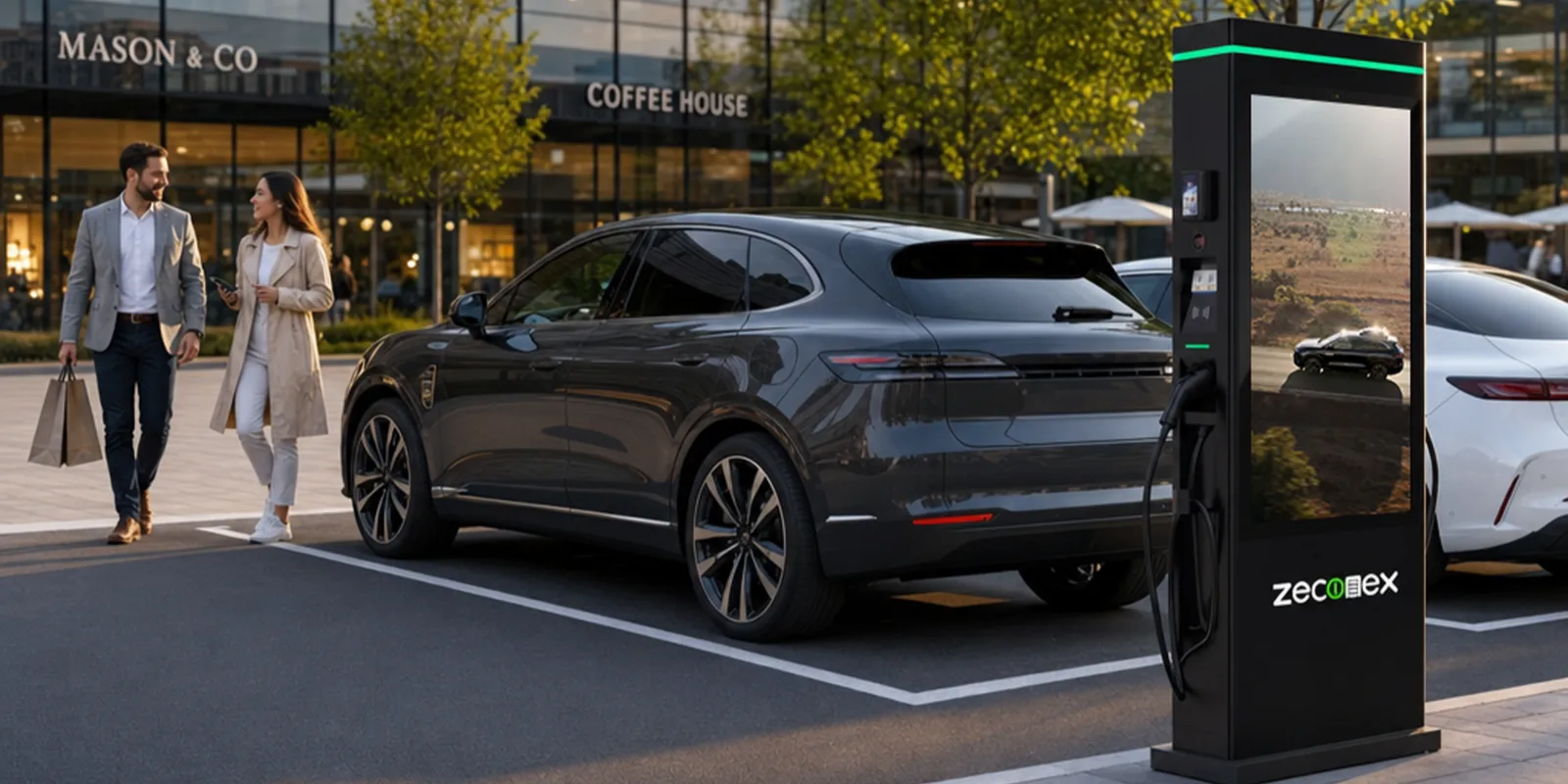

Zeconex Advertising Pedestal EV Charger is a dual-output AC charging station designed for commercial and residential parking environments such as shopping malls, community garages, hotels, and office parks.
Available in 14kW, 22kW, and 44kW configurations, the charger features two independent Type 2 outputs (socket or gun), enabling simultaneous charging of two electric vehicles with high efficiency and stable performance.

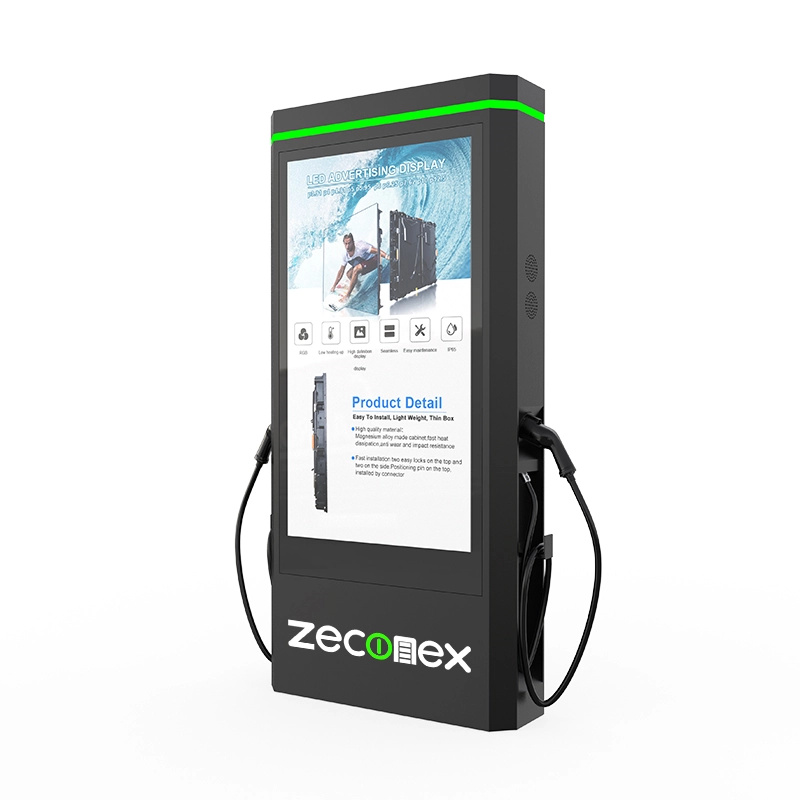

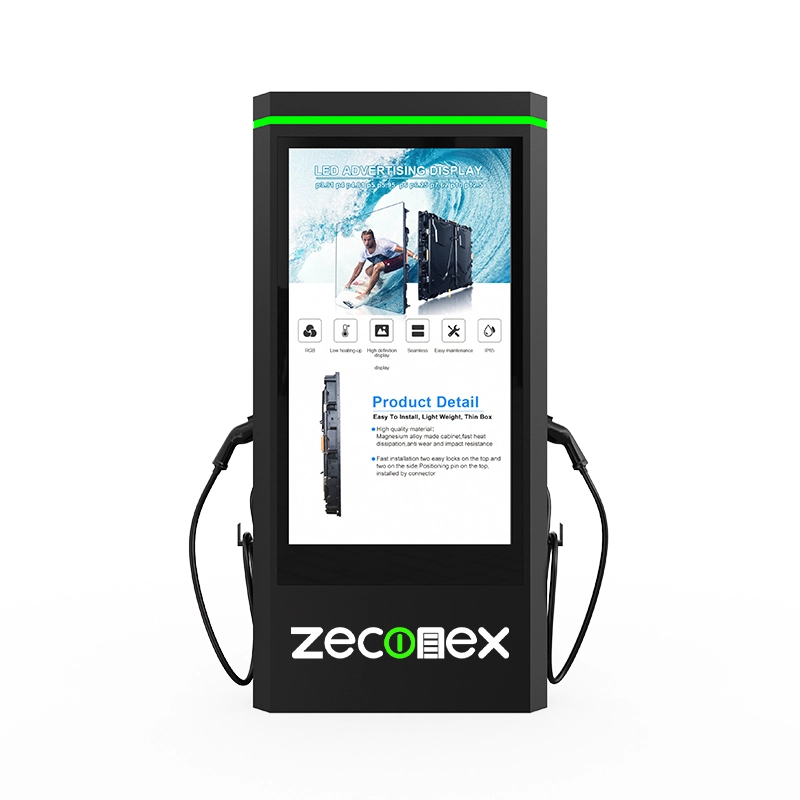

A key highlight of this model is its integrated 55-inch high-brightness IPS advertising display (1920×1080, 2500 cd/㎡), powered by an Android-based system. The screen supports remote and local advertisement content updates via wired network, WiFi, 4G (optional), USB flash drive, or SD card, making it ideal for commercial advertising and information display.
The 5-inch LCD touch screen provides real-time charging status, while RFID user authentication and MID-certified energy metering ensure accurate billing and secure operation. With support for OCPP 1.6J (OCPP 2.0 optional), the charger can be seamlessly integrated into third-party charging management platforms.
Designed for outdoor use, the charger complies with IP55 protection, supports -30°C to +55°C operation, and is equipped with comprehensive electrical protections, making it a reliable solution for long-term commercial deployment.
Model | ZECO-0140-AD1 | ZECO-0220-AD2 | ZECO-0440-AD3 |
|---|---|---|---|
Technical Features | |||
Charging Capacity | Up to 14KW(7KW*2) | Up to 22KW (11KW*2) | Up to 44KW (22KW*2) |
Input/Output power | 230VAC±20%-50/60Hz- 32A*2-1phase | 400VAC±20%-50/60Hz- 16A*2-3phase | 400VAC±20%-50/60Hz- 32A*2-3phase |
RCD | RCMU(Type A+ DC 6mA）/ Type B RCCB(Optional) | ||
Standby power | ＜5W | ||
Measuring accuracy | 1% | ||
Energy Meter | MID certified | ||
OCPP | OCPP1.6Json(OCPP2.0 optional) | ||
Communication | WIFI/Ethernet/4G(Optional) | ||
User Interface | LCD 5 inch Touch Screen/RFID(mifare iso&IEC 14443A) | ||
Certificate/Compliance | CE/FCC/ROHS/REACH/IEC/EN61851-1,IEC/EN61851-21-2,IEC/EN62955,EN300328,EN301489-1/-17,EN62479. | ||
Charging Interface | Type2socket*2 or Type 2 Gun*2 5M | ||
Special Protection | Over current protection, Residual current protection, Ground protection, Surge protection, Over/Under voltage protection, Over/Under frequency protection, Over/Under temperature protection | ||
Advertising display | |||
LCD screen | 55*IPS 1920*1080 16:9 HDV 2500cd/㎡ | ||
Application platform | Android 4.3 and above | ||
Communication | WIFI/Ethernet/4G(Optional) | ||
Ad update | USB flash disk, SD card, wired network romote release | ||
Physical Properties | |||
Protection | IP55(outdoor) | ||
Special Protection | Topple & fall down protection | ||
Cooling | Natural cooling | ||
Operating temperature | -30℃ to +55℃ | ||
Humidity | Max.95%(non-regulating) | ||
Product Dimension | 920*290*1950mm(L*W*H) | ||
Package Dimension | 450*1170*2110mm(L*W* H) | ||
Net Weight | 201kg | ||
Gross Weight | 320Kg | ||
Why Choose ZECONEX for Commercial Advertising AC Charging?
Safety, Compliance & Reliability
The ZECONEX Commercial Advertising AC Charger features an IP55-rated enclosure, making it suitable for outdoor commercial environments.
Comprehensive electrical protections—including overcurrent, residual current, surge, voltage, frequency, and temperature protection—ensure safe and reliable operation. The charger complies with major international standards and certifications, supporting long-term commercial deployment.
Dual Charging, Higher Space Utilization
Zeconex is a 150 kW DC fast EV charging station manufacturer that has been thoroughly tested at every step of the manufacturing process. The public commercial DC fast EV charger is one of our best-selling products.
We offer customized, fast-charging stations for electric cars and DC electric car chargers in various shapes, materials, and specifications to suit your demands and preferences.
We strive to make your experience of using DC car charging stations the best. Give us a chance to provide you with the best quality and highly efficient commercial electric car DC fast charging stations to charge your electric vehicle.
You can order a customized commercial DC fast EV charger as per your preference, along with a quote, and charge your electric car as per your wish.
Integrated High-Brightness Advertising Display
Equipped with a 55-inch IPS advertising screen (1920×1080, 2500 cd/㎡), the charger combines EV charging with digital advertising and information display. A 5-inch LCD touch screen, RFID user authentication, and MID-certified energy metering provide clear operation and accurate measurement. Support for OCPP 1.6J (OCPP 2.0 optional) allows seamless integration with third-party charging management platforms.
Comprehensive Support
Cloud Platform
Dedicated to enabling the future of e-Mobility with the most open, secure, and robust charging network, our cloud-based EV charging platform makes it easy for operators to manage and customize chargers to their exact needs.
We provide everything required to deliver a complete charging ecosystem, including a management system, mobile app, and seamless interoperability across networks and hardware.
OEM/ODM Service
Our experienced R&D teams in China and abroad specialize in international charging protocols, enabling us to provide reliable OEM and ODM services for clients worldwide.
Comprehensive After-sale Guarantee
If the product is damaged or malfunctions due to manufacturing defects, Zeconex will provide free maintenance or replacement of parts to ensure reliable long-term operation.
