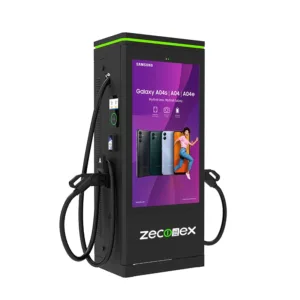

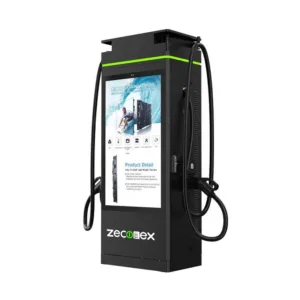

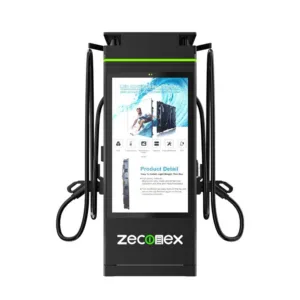

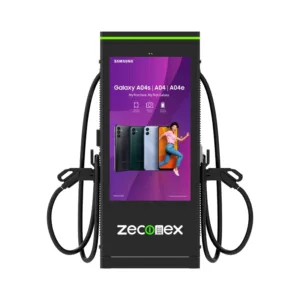

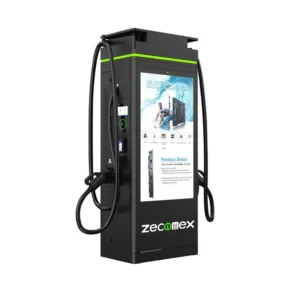

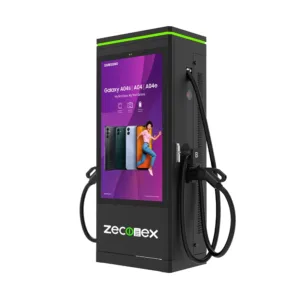

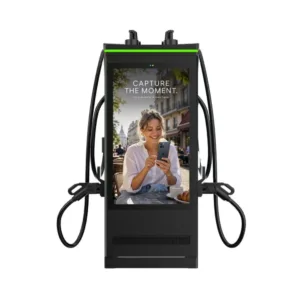

Commercial Advertising DC EV Charger Solution 60kW-160kW
Features:
Contact Us For Bulk Order Price
Description
The Commercial DC EV Charger with Integrated Advertising Display delivers reliable DC fast charging from 60kW to 160kW for public charging stations, retail sites, fleets, and smart city projects. Supporting Ethernet, Wi-Fi, and 4G connectivity with OCPP 1.6J compatibility, it enables remote monitoring, intelligent operation, and seamless integration with charging management systems.
Designed for commercial environments, the charger features dual DC output sockets, high efficiency above 95%, and a rugged IP55 outdoor enclosure. Its integrated 43″ or 55″ high-brightness advertising display supports remote content updates, helping operators generate additional revenue while vehicles are charging.
Physical properties | |
|---|---|
IP Level | IP55(outdoor) |
Special Protection | Topple & fall down protection |
Cooling | Natural cooling |
Operating temperature | -30℃ to +55℃ |
Humidity | Max. 95%(non-regulating) |
Dimensions | 2310*1170*650( L*W*H ) |
Net Weight | 280Kg |
Gross Weight | 321Kg |
Model | ZECO-0600-DCA1 | ZECO-1200-DCA2 | ZECO-1600-DCA3 |
|---|---|---|---|
Technical features | |||
Charging capacity | Up to 60KW | Up to 120KW | Up to 160KW |
Input/Output power | 400VAC±10%/50-60Hz-3phase | ||
Power factor | ≥0.98 | ||
Efficiency | >95% | ||
Measuring accuracy | level 0.5 | ||
Output voltage range | CCS: 250~1000VDC | ||
Output current range | 0-200A | 0-250A | 0-250A |
Communication | PLC (between charger & vehicle) Ethernet / 4G / OCPP 1.6J(optional) | ||
User interface | LCD 7 inch Touch Screen / RFID card and APP | ||
Versatility | EN/ IEC 61851-1: 2019, EN/ IEC 61851-23: 2014 | ||
Security design | Over/under voltage protection, overload protection, current leakage protection, grounding protection, lightning surge protection | ||
DC Plug | CCS2 Cable 5M*2 | ||
Energy Meter | CE certified or PTB (optional) | ||
RCD | MCC B OR MCC B withtypeA(Optional) | ||
Advertising display | |||
Mainboard | Android based Quad-core | ||
RAM | 2GB | ||
Storage | 8GB, can extend to 32GB | ||
Video format | MPG, MPG-1, MPG-2, MPG-4, AVI, MP4, TS, MKV, WMV | ||
Maximum decoding | 3480x2160 | ||
Picture format | GIF, JPEG, PNG, BMP | ||
Audio output | 2x10W | ||
Audio format | Mp3, 24bit linear PCM,7.1 | ||
Other format | PDF/ RSS, News/Weather-forecast | ||
Network | RJ45 interface, Wifi, 4G, Option | ||
The update way for | Network remote update, U disk update | ||
Display mode | Landscape/ Portrait, Full Screen/Any Split Screen | ||
Program upgrade | Remote upgrade, remote upgrade | ||
Timer switch | Support any time period | ||
Panel parameters | |||
Panel Type | 55 inch LCD Panel | ||
Display area | 1209*680mm | ||
Display ratio | 0.672917 | ||
Backlight type | LED backlight | ||
Resolution | 3480x2160 | ||
Display color | 16.7M | ||
Brightness | 3500-cd/m2 | ||
Contrast | 3500:1 | ||
View angle | 178°(H) / 178°(V) | ||
Response time | 6ms | ||
Life time | 50000 hours | ||
Why Choose the ZECONEX Commercial Advertising DC EV Charger?
The ZECONEX Commercial Advertising DC EV Charger is purpose-built for the integration of EV charging and digital advertising, helping operators attract more customers while achieving reliable and sustainable revenue growth.
Cost of Ownership
Delivering Higher Commercial Value

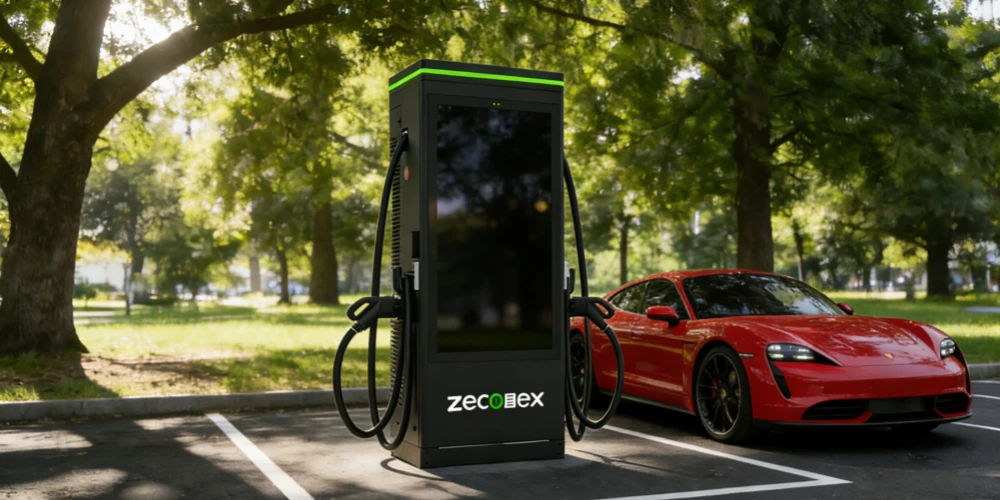

This commercial DC EV charger is available in 60kW, 120kW, and 160kW configurations, allowing flexible power selection to suit different deployment scenarios. It is ideal for public charging stations, commercial parking facilities, and fleet operations. By delivering high-efficiency DC fast charging, the system significantly reduces user waiting time, improves station turnover, and enhances overall service reliability and user experience.
The charger features an integrated 55-inch high-brightness advertising display with remote content updates and centralized management, making it well-suited for high-traffic locations. Operators can offer advertising placement to brands, transforming charging dwell time into high-value media exposure. This enables a dual-revenue business model that combines charging services with advertising income, further increasing the charger’s commercial value and long-term return on investment.
Time and Space Efficiency
Maximized Charging Utilization
This commercial DC charger with integrated advertising features a dual CCS2 DC output design, enabling a single unit to serve multiple vehicles efficiently. By reducing equipment and site footprint requirements, it improves asset utilization, lowers total cost of ownership, and increases return on investment.
Safety Reliability
Comprehensive Protection Design
The charger is built with an IP55-rated enclosure, ensuring stable operation across a wide temperature range from -30°C to +55°C, making it well-suited for outdoor commercial applications.
It integrates multiple layers of safety protection, including overvoltage, undervoltage, overload, leakage current, grounding, and lightning surge protection, providing comprehensive safety for both equipment and users.
Certified energy meters and residual current devices (RCD) are available as optional configurations, while the system is engineered for long-term reliability to meet the durability and stability demands of continuous commercial operation.

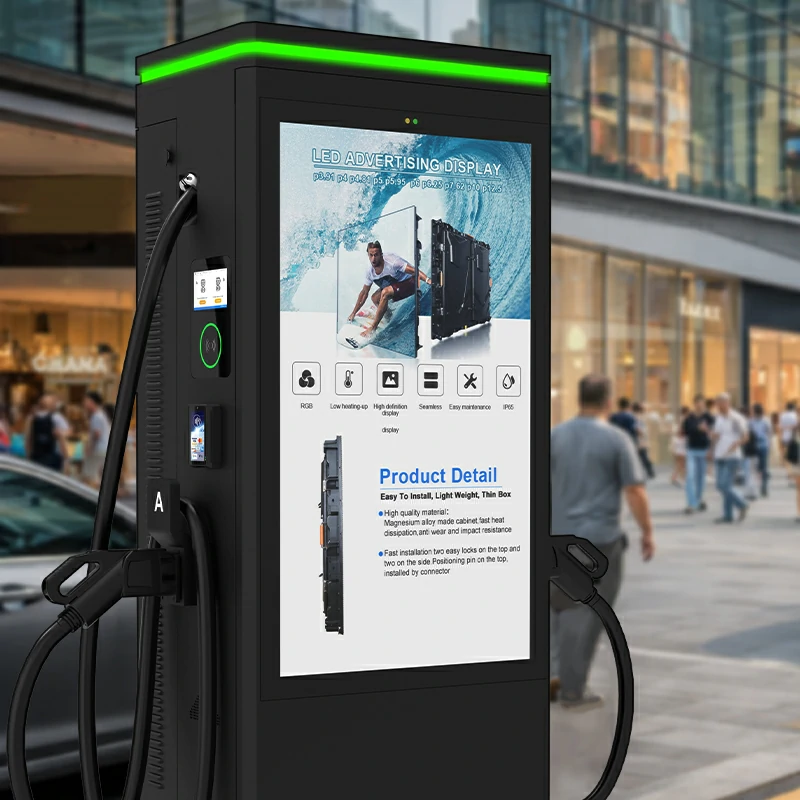

Media Support
Supports comprehensive communication, network connectivity, and multimedia playback.
- Communication: PLC (between charger & vehicle) Ethernet / 4G / OCPP 1.6J(optional)
- Video format: MPG, MPG-1, MPG-2, MPG-4, AVI, MP4, TS, MKV, WMV
- Picture format: GIF, JPEG, PNG, BMP
- Audio format: Mp3, 24bit linear PCM,7.1
- Network: RJ45 interface, Wifi, 4G, Option
- Other formats: PDF/ RSS, News/Weather-forecast
Comprehensive Support
Cloud Platform
Dedicated to enabling the future of e-Mobility with the most open, secure, and robust charging network, our cloud-based EV charging platform makes it easy for operators to manage and customize chargers to their exact needs.
We provide everything required to deliver a complete charging ecosystem, including a management system, mobile app, and seamless interoperability across networks and hardware.
OEM/ODM Service
Our experienced R&D teams in China and abroad specialize in international charging protocols, enabling us to provide reliable OEM and ODM services for clients worldwide.
Comprehensive After-sale Guarantee
If the product is damaged or malfunctions due to manufacturing defects, Zeconex will provide free maintenance or replacement of parts to ensure reliable long-term operation.
Related Products
Faq
Yes. Operators may need to control or limit advertising content to comply with local regulations, reduce light pollution, or adjust content based on time of day and audience.
- The Commercial Advertising EV Charger allows you to:
- Adjust screen brightness
- Schedule operating hours
- Switch to informational or public service content
- Completely disable the display remotely
These flexible options ensure that the charger remains compliant while maximizing operational efficiency and site safety.
The Commercial Advertising EV Charger provides multiple content management options:
- Remotely via network (Ethernet, 4G, or Wi-Fi)
- Locally via USB if required
The CMS supports flexible layouts and remote program upgrades, allowing operators to schedule, update, and optimize advertising content with ease
This ensures that advertising campaigns can be kept current and relevant, while maintaining seamless charging operations.
Yes. With IP55 protection, wide temperature tolerance, silent operation, and compliance with IEC standards, the charger is suitable for:
- Public parking
- City infrastructure
- Transit hubs
- Retail and commercial developments
Yes. The charger features one charger with two CCS2 output sockets, allowing two vehicles to be connected simultaneously. The backend system can manage power allocation depending on charging demand and site configuration, improving overall station utilization and operational efficiency.
Yes. With an output voltage range of 250–1000V DC, the charger supports a wide variety of current and next-generation EVs. Compliance with IEC 61851 standards ensures broad vehicle compatibility and long-term investment protection.
The charger is designed for commercial and public deployment, featuring:
- Vandal-resistant enclosure
- Anti-corrosion surface treatment
- IP55 outdoor protection
- Topple and fall-down protection
These features help reduce downtime and maintenance costs in unattended locations.
The advertising display is designed for long-term outdoor commercial use, with a panel lifetime of up to 50,000 hours. The charging system utilizes industrial-grade power electronics and passive natural cooling, thereby reducing wear from moving parts and ensuring stable 24/7 operation. This ensures a balanced lifecycle between the charging hardware and the advertising module, minimizing the total cost of ownership.
