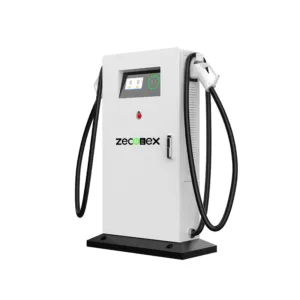

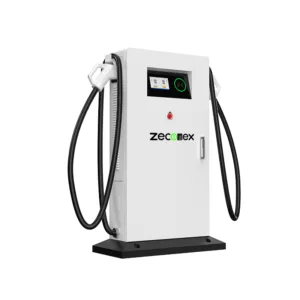

Commercial DC Charger (Eco-version) 60-80kW
Features:
Contact Us For Bulk Order Price
Description

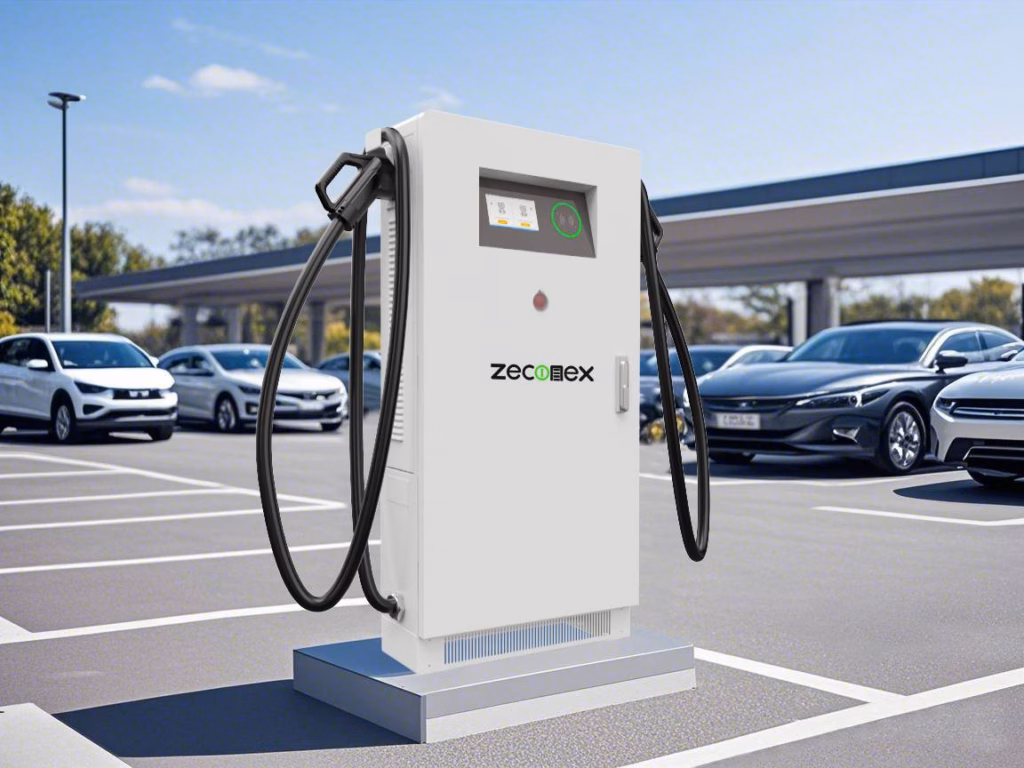

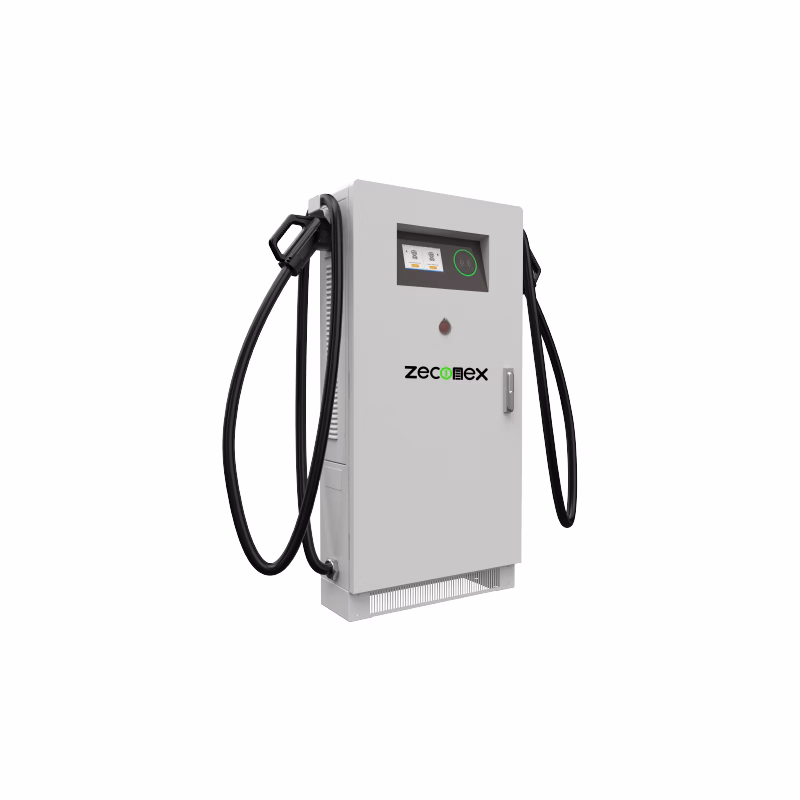

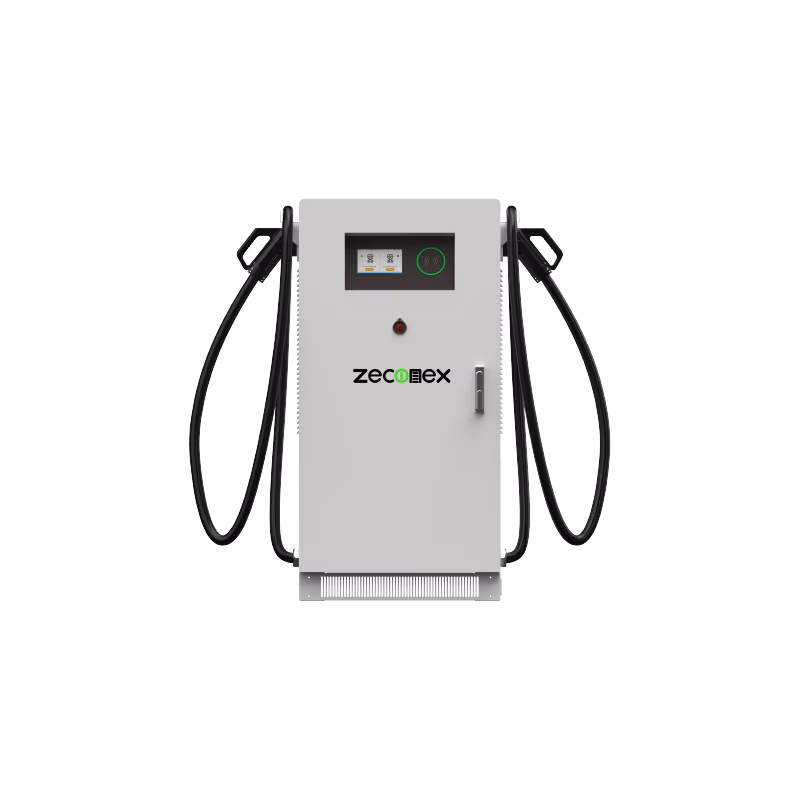

Zeconex Commercial DC Charger 60KW-80KW is, efficient, smart, and safe EV charging solution.
Zeconex introduces a new generation of Commercial DC Charger 60KW-80KW, designed to meet the needs of efficient operations in high-traffic charging stations, commercial parking lots, and public facilities. With excellent performance, flexible operation, and reliable safety, this charger is ideal for EV charging infrastructure.
This commercial DC charger from Zeconex is impressive in terms of efficiency, flexibility, and safety. It comes in 60KW and 80KW options, and with two outputs from one device, you can charge two EVs at the same time.
It supports app operation, RFID authentication, and plug-and-play. What's more, it charges super fast, with an efficiency of more than 95%, and its IP55 protection rating allows it to be used both indoors and outdoors, and wall and column mounting is super flexible.
Model | ZECO-600-DA4 | ZECO-800-DA5 |
|---|---|---|
Technical Features | ||
Max Power | Up to 60KW | Up to 80KW |
Input/Output power | 400VAC±10%-50/60Hz-3phase(CCS2 and GB/T ) | |
Power factor | 0.98 | |
Efficiency | >95% | |
Measuring accuracy | Level 0.5 | |
Output voltage range | CCS2 CCS1 NACS GB/T: 150~ 1000VDC | |
Output current range | 0-200A | |
Communication | ISO15118 / DIN70121(between charger & vehicle) / Ethernet/4G/OCPP 1.6J (TLS1.2 ) | |
User Interface | 7 inch Touch Screen / RFID card and APP | |
Versatility | EN/ IEC 61851-1: 2019 , EN/ IEC 61851-23: 2014 , UL 2202 , Ul2594 | |
Energy Meter | CE certified(optional) | |
RCD | Type A(optional) | |
Security design | Over/ under voltage protection , overload protection , current leakage protection , grounding protection , lightening surge protection | |
DC Plugs | Cable 5M | |
Load balancing | Load balancing meter and CT(optional) | |
Physical Properties | ||
Application place | Indoor / outdoor | |
IP Level | IP55 | |
Installation method | Wall mount , pedestal mount (optional) | |
Sound noise | <75DB in all directions | |
Operating temperature | -30°C to +50°C | |
Humidity | Max .95%(non-regulating) | |
Product Dimensions | 700*240* 1400mm 700*240* 1400mm | |
Package Dimension | 930*460* 1700( L*W* H ) mm | |

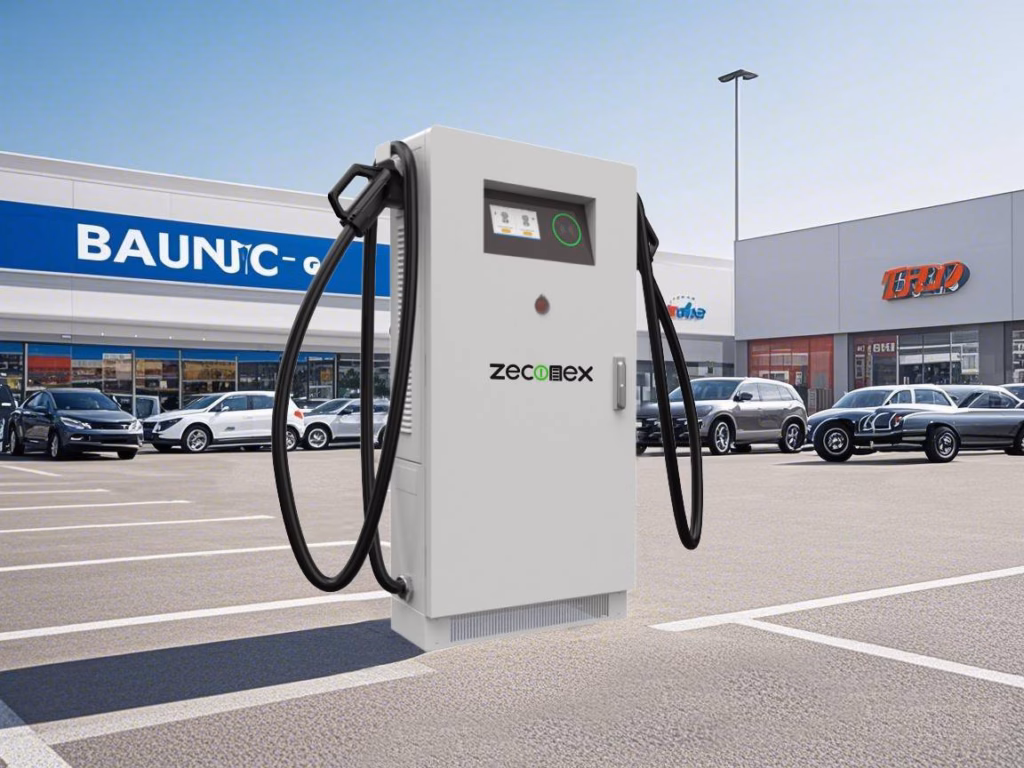

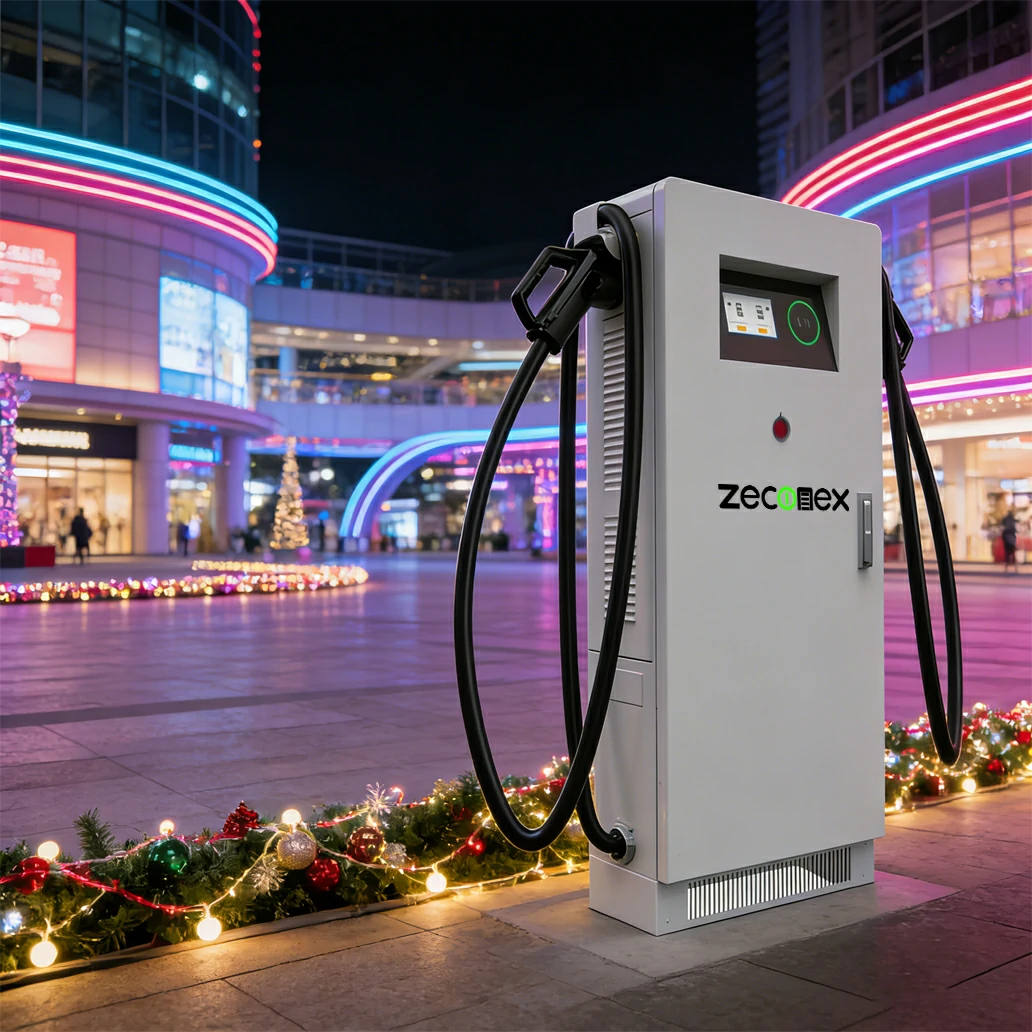

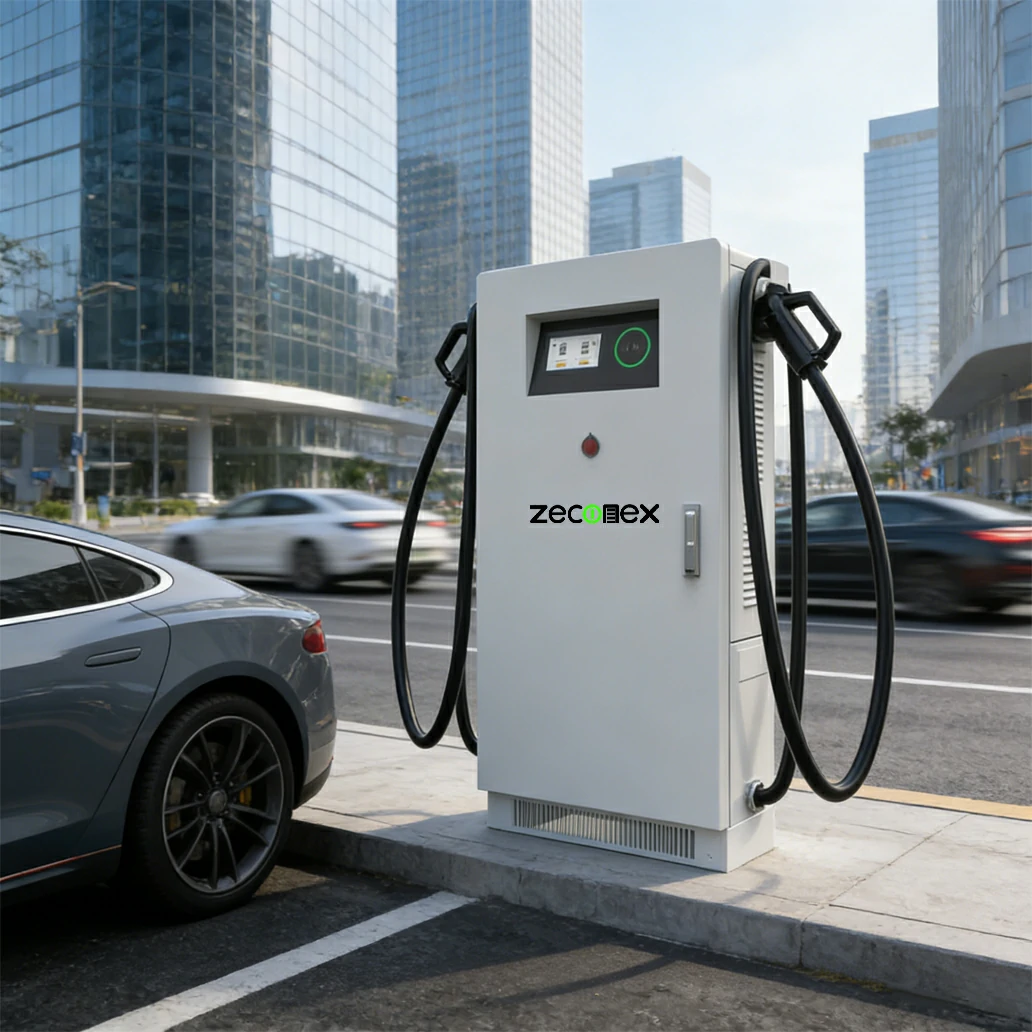

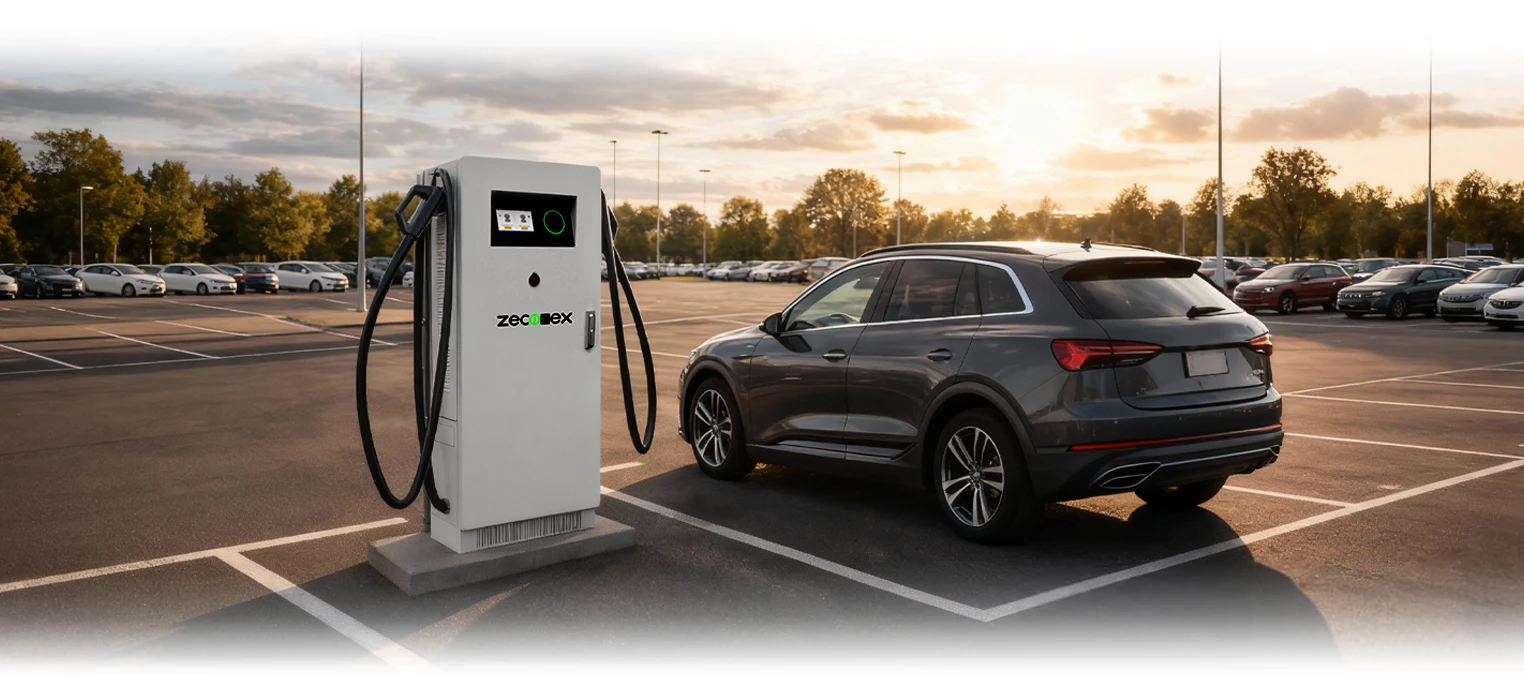

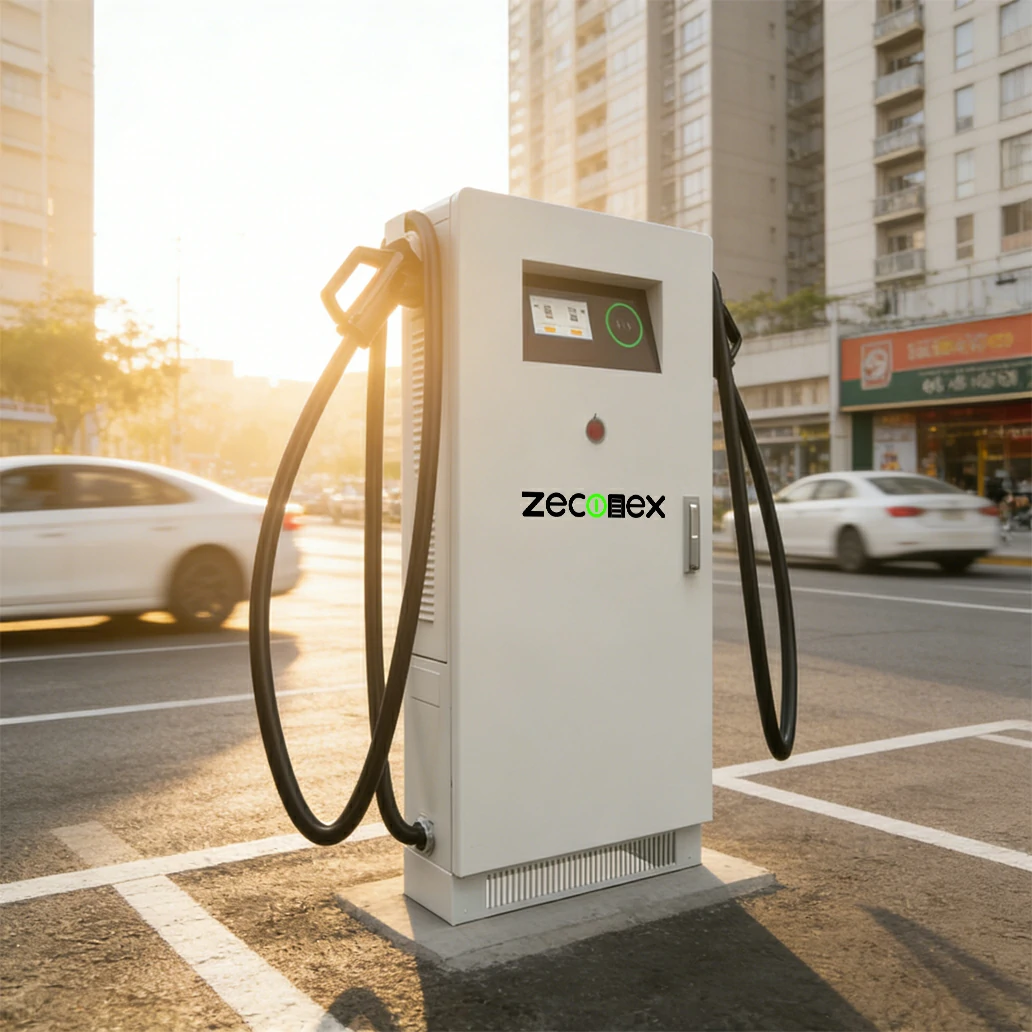

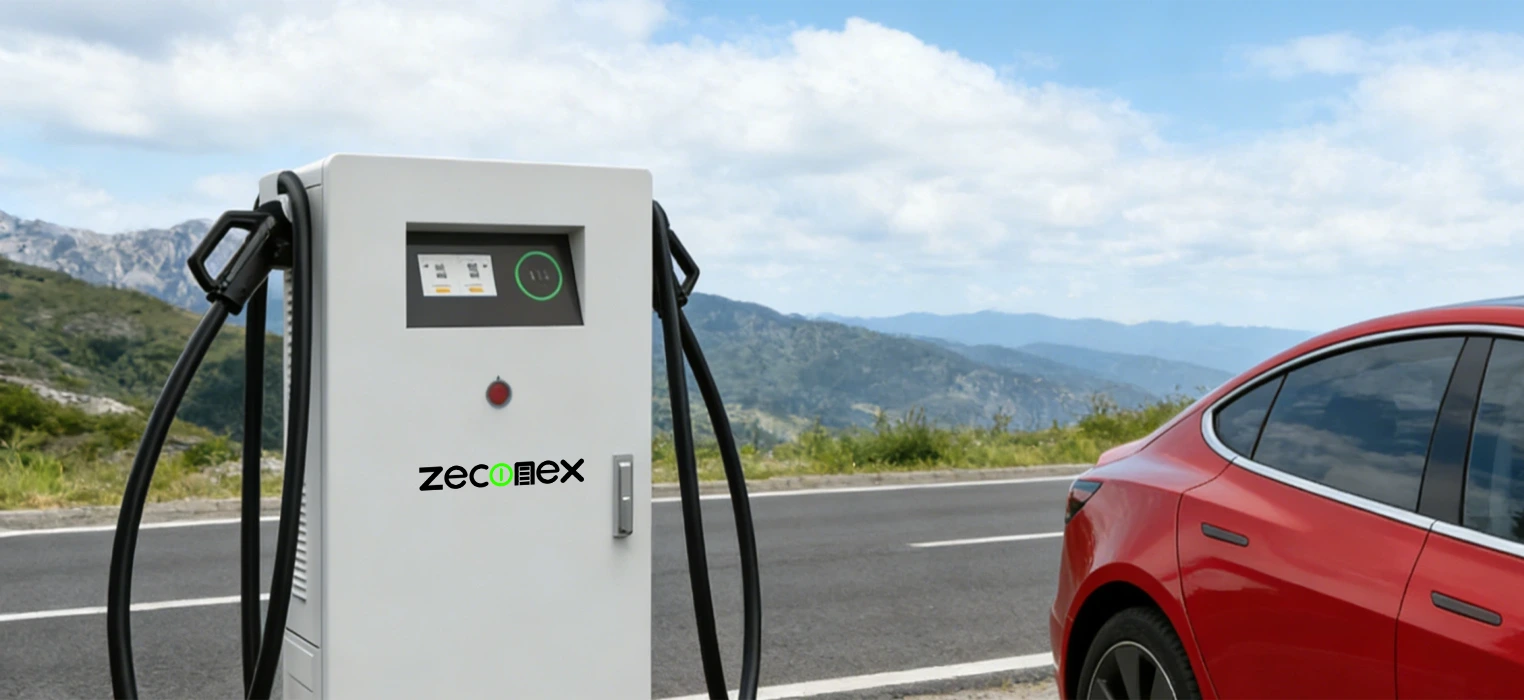

Product Applications
Core Advantages
Dual guns in parallel, efficiency and performance at the same time. Dual independent output, 80KW constant power output: Equipped with two CCS2/CCS1/NACS/GB/T standard DC charging ports, it supports simultaneous charging of two electric vehicles, with a total output power of up to 80KW. 150-1000V wide voltage range realizes constant power output, reduces current loss, lowers equipment heating, and prolongs service life. Energy efficient and better heat dissipation: Adopting advanced power conversion technology with over 95% efficiency and an intelligent heat dissipation system ensures stable operation of the device in high-frequency use.
Flexible operation, seamless experience
Multi-mode interaction, changing as needed: supports APP remote control, RFID card identification, and Plug & Play to meet the needs of different user scenarios.
Optional POS terminal for worry-free payment: Integrated contactless credit card payment function (optional), simplifying the payment process and enhancing user experience.
Intelligent management, efficient operation, and maintenance
Communication support for all scenarios: Built-in Ethernet and 4G communication module, compatible with OCPP 1.6 protocol, seamlessly connects to the charging management system (CMS), realizing remote monitoring, fault diagnosis, and firmware upgrade.
APP Intelligent Operation: Through the mobile APP, operators can view equipment status, charging data, and user information in real time to optimize resource allocation and reduce operation and maintenance costs.
Upgraded protection and safety
IP55 protection: Dustproof and waterproof design adapts to harsh outdoor environments and ensures stable operation of the device around the clock.
Multiple safety protections: Built-in Type A RCD residual current protection device and PTB certified high-precision power meter, real-time monitoring of current and energy consumption, ensuring safe charging and accurate metering.
Plug & Charge Pre-certification: Complies with ISO 15118/DIN 70121 standards, reserving technical interface for future upgrading of vehicle-pile interconnection function.
Customized services for flexible adaptation
Zeconex provides one-stop solutions from equipment selection, installation, and commissioning to after-sales maintenance, and supports the customization of charging post appearance, functional module, and payment system according to customers' needs, which helps customers quickly build an efficient and intelligent charging network.
Choosing Zeconex Commercial EV Charger means choosing high efficiency, safety, and unlimited possibilities in the future!
Contact us now to start a new chapter on green mobility!
Comprehensive Support
Cloud Platform
Dedicated to enabling the future of e-Mobility with the most open, secure, and robust charging network, our cloud-based EV charging platform makes it easy for operators to manage and customize chargers to their exact needs.
We provide everything required to deliver a complete charging ecosystem, including a management system, mobile app, and seamless interoperability across networks and hardware.
OEM/ODM Service
Our experienced R&D teams in China and abroad specialize in international charging protocols, enabling us to provide reliable OEM and ODM services for clients worldwide.
Comprehensive After-sale Guarantee
If the product is damaged or malfunctions due to manufacturing defects, Zeconex will provide free maintenance or replacement of parts to ensure reliable long-term operation.
