ESS EV Charging Station 120kW/400kW /800kW
Features:
Contact Us For Bulk Order Price
Description

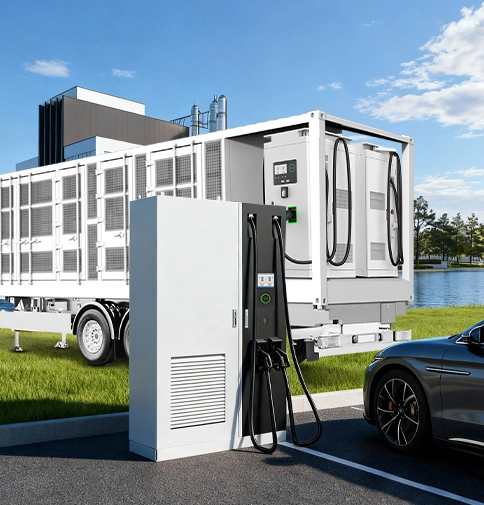

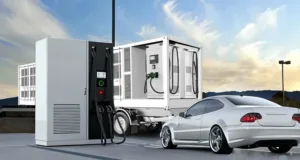

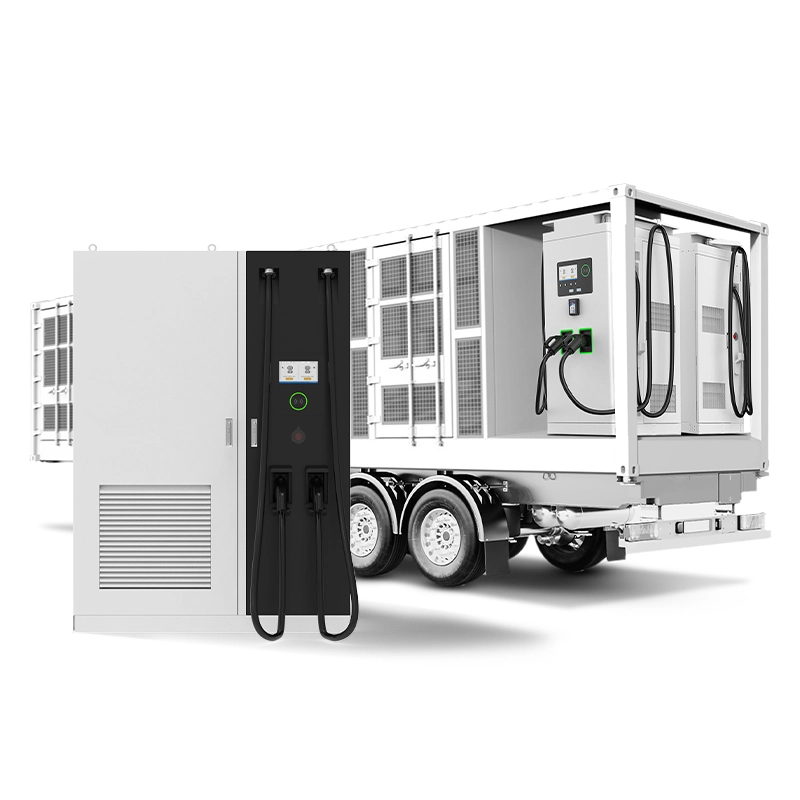

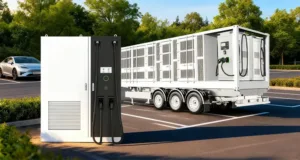

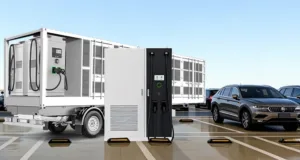

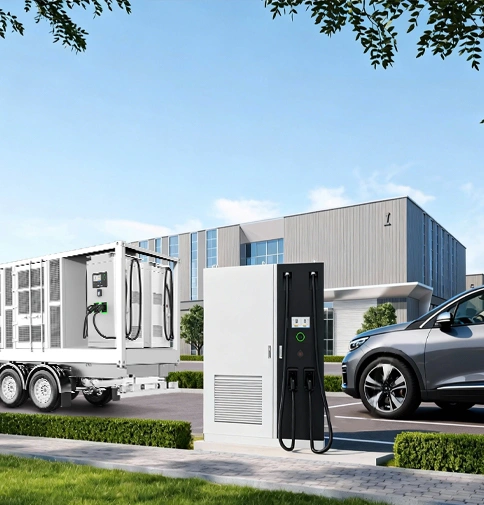

ZECONEX mobile energy storage system (ESS) with an electric vehicle charger, including a lithium iron phosphate battery, DC charger, fire protection system, air conditioning, etc. It is an integrated energy storage system with BMS/ACDC/DCDC/EMS functions. And it supports recharging ESS with AC/diesel generators or DC chargers.
Tech Specs
Model | ZECO-1060400 | ZECO-2138800 |
|---|---|---|
Input & Output | ||
Input Voltage | 3Phase 400VAC ± 15%/50Hz | 3Phase 400VAC ± 15%/50Hz |
Input Current | 608A max | 1206A max |
Output Voltage Range | 150VDC-1000VDC | |
Constant-Power Voltage Output Range | 300VDC-1000VDC | |
Nominal Power Output | 400kW | 800kW(400KW*2) |
Current Output | 350A CCS2 continuously | 375A CCS2 continuously |
Output AC 1 | 7kw/32A/230VAC± 15%/50Hz/CEE plug | |
Output AC 2 | 44kw/64A/400VAC± 15%/50Hz/CEE plug | 87kw/125A/400VAC± 15%/50Hz/CEE plug |
Model | ZECO-208120-DE3 | ZECO-1060400-DE4 | ZECO-2138800-DE5 | |
|---|---|---|---|---|
Basic Parameter | ||||
Charging System | Connectors | 2 | 2 | 4 |
Power Distribution | 2 connectors intelligent distribution | 2 connectors intelligent distribution | 4 connectors intelligent distribution | |
Charging Power | 120kW | 400kW | 800kW(400kW*2) | |
Cable | 250A, 5m, CCS1/CCS2 | 375A, 7m, CCS2 | 375A, 7m, CCS2 | |
Charging Voltage | 300V-1000V | |||
Efficiency | ≥96.5% | |||
Meter | AC Side | AC meter | ||
DC Side | 2-access DC meter | |||
Energy-Storage-System | Battery Capacity | 208 Kwh /LFP | 1069 Kwh /LFP | 2138 Kwh /LFP |
Usable Energy (SAT) | 185 KWh | 980 KWh | 2050 KWh | |
Max. recharge Power | 400Vac(3p+N+PE) or 480Vac(3p+N+PE) 40kW 208Vac(3p+N+PE) 18kW | 400kW | 800kW | |
Battery Charging Rate | ≤0.5C | |||
Battery Discharge Rate | ≤1C | |||
Battery Efficiency | ≥94.5% under nominal situation | |||
IP Ranking | IP55 | IP54 | IP54 | |

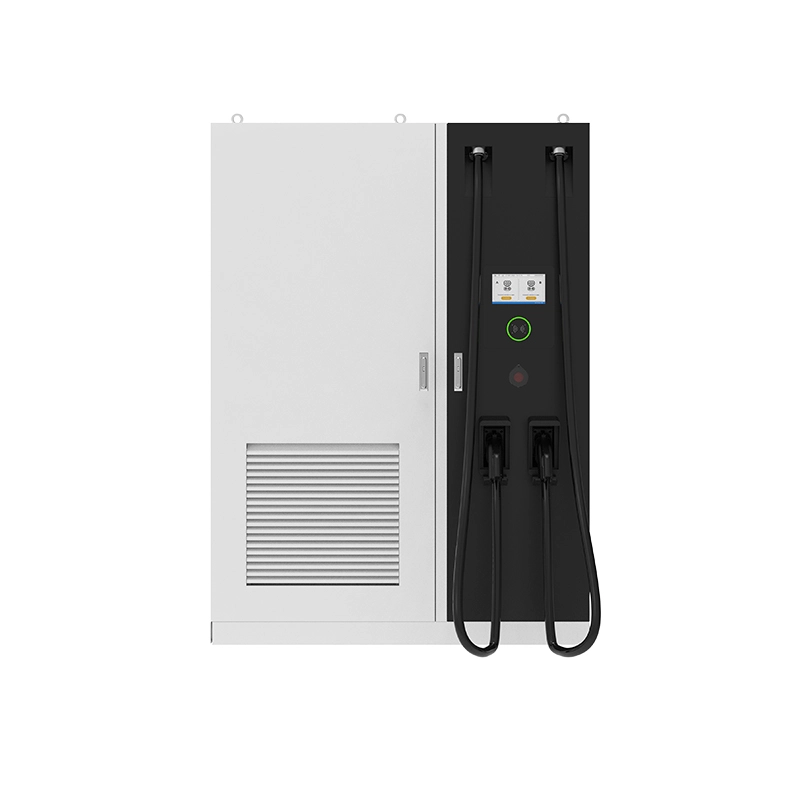

Product Specification | Type | DC charging station with Battery | ||
Installation | On ground | |||
Materia | Industrial Grade Alloy | |||
Color | White weather-resistant coating | |||
Package Dimension | 2050mm*1800mm*900mm | 2438mm*2896mm*6058mm | 2438mm*2896mm*12192mm | |
Net Weight | 2500kg | 17500kg | 37500kg | |
Cooling System | Battery Cooling | Liquid-cooled | ||
Power Modules | Air-cooled | |||
Cable Cooling | Air-cooled | |||
User Interface Display Size | 10 Inch | 7 Inch | 7 Inch | |
Payment System | RFID, credit card | |||
Size and weight | GSM & LTE & LAN | 4G & LTE & LAN | 4G & LTE & LAN | |
Communication | OCPP 1.6J | |||
Photovoltaics Input | 260-825VDC, Max 40kW(Optional) | 260-825VDC, Max 40kW(Optional) | 260-825VDC, Max 40kW(Optional) | |
Environment Parameter | ||||
Applicable Site | Outdoors | |||
Ambient Temperature | -30℃ to +55℃ | -25℃-50℃(over45℃ derating) | -25℃-50℃(over45℃ derating) | |
Humidity | ≤95%, No condensation | |||
Noise | ≤70dB | ≤70dB | ≤70dB | |
Altitude | ≤2000m | |||
EMC Emission | Type A | |||
Medium | No explosive hazardous, No toxic & harmful gases. | |||
Interference | Without strong vibration and shock, no strong electromagnetic interference | |||
Safety | ||||
Input Protection | Under voltage protection, over voltage protection, over current protection, over temperature protection, leakage protection,lightning protection, short circuit protection | |||
Output Protection | Short circuit protection, over-temperature protection, communication fault protection, leakage protection, over-current protection | |||
Emergency Protection | Set emergency stop button, leakage protection function, high-precision output insulation monitoring function | |||
Special Protection | IP54 protection level, anti-salt dew, moisture-proof, anti-toxic and anti-ultraviolet | |||
Standard | ||||
Battery | UL 1973, IEC 62619, IEC 61000 | IEC 62619, IEC 61000 | IEC 62619, IEC 61000 | |
System Level | UL 2202, UL 2231, IEC 62619, IEC 61851, IEC 62477, IEC 61000, ISO 15118 | IEC 62619, IEC 61851, IEC 62477, IEC 61000, ISO 15118 | IEC 62619, IEC 61851, IEC 62477, IEC 61000, ISO 15118 | |

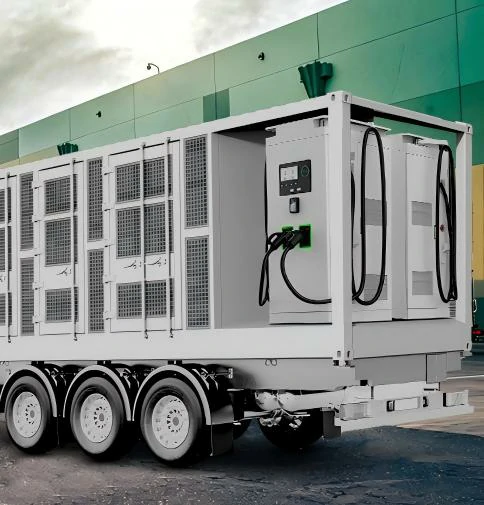

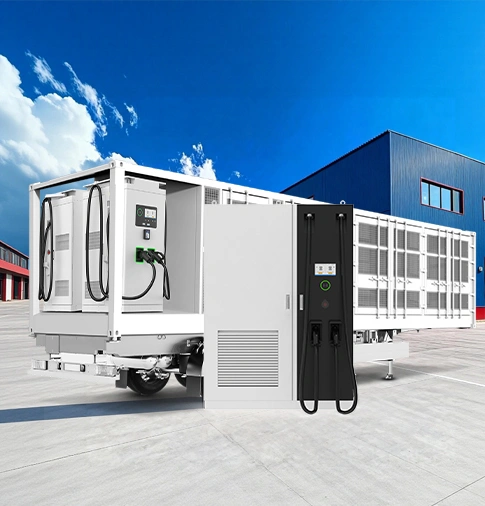

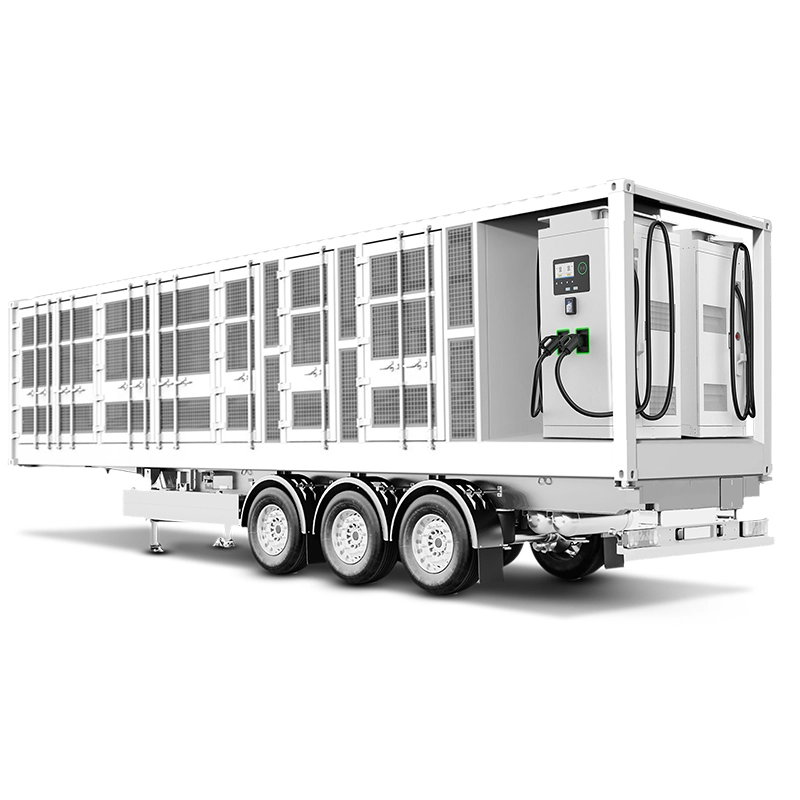

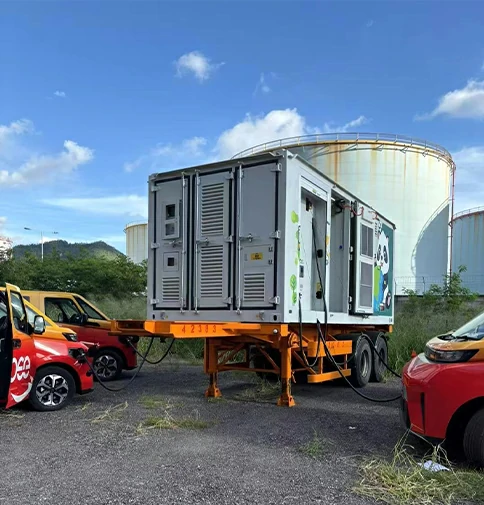

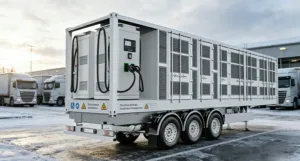

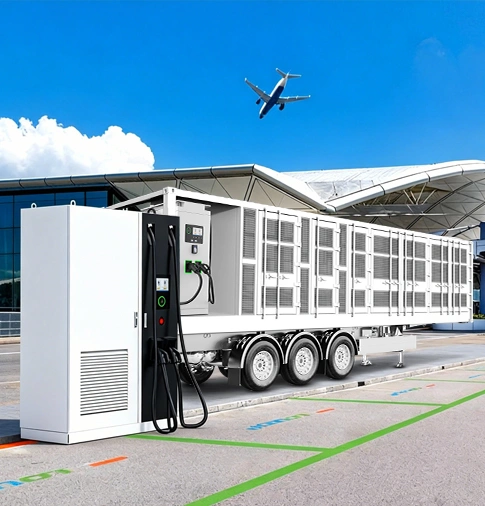

ZECONEX Mobile ESS Solutions for Multi-Scenario EV Charging
Unlock new revenue and expand charging coverage with ZECONEX mobile ESS fast-charging solutions. Our high-power, all-in-one systems deliver grid-independent EV charging for fleets, events, and remote sites. Fast to deploy, scalable to grow, and built for the future of clean mobility.

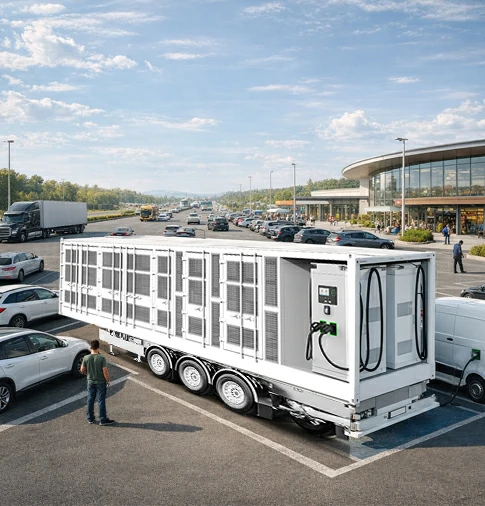

Ultra-High-Power Fast Charging for Maximum Throughput
ZECONEX delivers unparalleled fast-charging capability with configurable output options of 120 kW, 400 kW, and 800 kW (400 kW × 2). With continuous CCS2 output of 350A–375A and multiple AC connectors (7 kW / 44 kW / 87 kW), a single system can charge multiple EVs simultaneously through intelligent power distribution.
This high-power architecture minimizes vehicle dwell time, boosts charging turnover, and dramatically increases revenue capacity at both permanent and temporary charging sites.

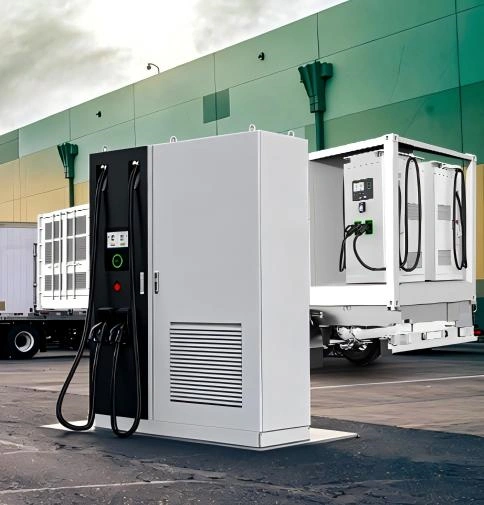

Integrated All-in-One ESS Architecture for Efficient Energy Management
Unlike traditional charging stations that rely entirely on grid power, ZECONEX integrates lithium-iron-phosphate batteries, DC chargers, BMS, EMS, fire protection, and cooling systems into a single centralized platform.
The system supports multiple charging inputs, grid (AC), diesel generator, PV, and DC fast charging, ensuring uninterrupted operation and optimized energy efficiency.
This vertically integrated design reduces engineering complexity, lowers installation and O&M costs, and enhances long-term system reliability.
Large-Capacity LFP Batteries for Reliable and Safe Operation
Equipped with 208 kWh / 1069 kWh / 2138 kWh LFP battery configurations and usable energy of up to 2050 kWh, ZECONEX provides abundant on-site power for high-demand charging environments. The system supports ≤0.5C charging and ≤1C discharging, delivering high cycle performance and long battery lifespan with ≥94.5% battery efficiency.
Combined with built-in fire suppression, insulation monitoring, leakage protection, and emergency shutdown functions, ZECONEX ensures industry-leading energy-storage safety and operational continuity.

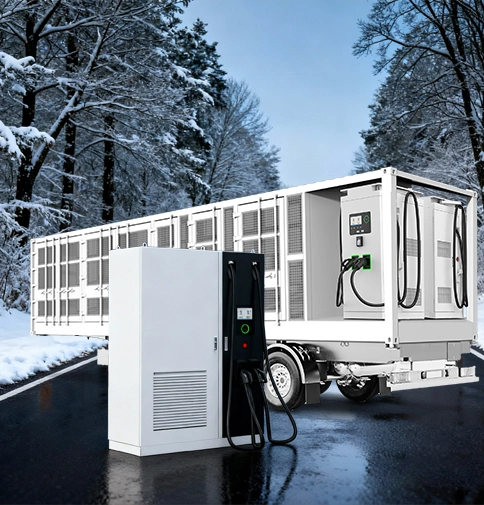

Highly Adaptable Deployment for Multi-Scenario EV Charging
Designed for outdoor installations and challenging environments, ZECONEX features robust industrial-grade enclosures, IP54/IP55 protection, UV resistance, moisture resistance, and anti-salt-spray performance.

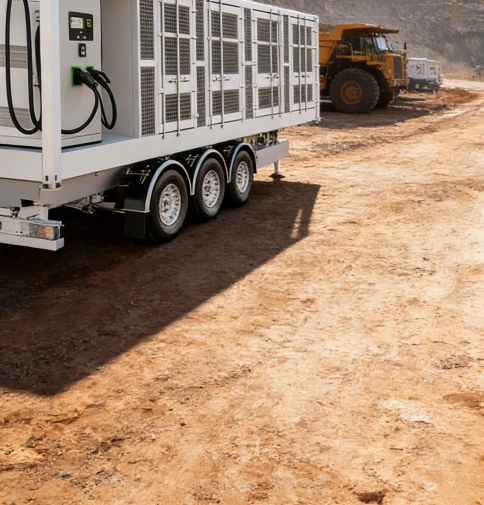

With an operating temperature range of –30℃ to +55℃ and noise levels under 70 dB, the system is ideal for fleet depots, logistics hubs, service stations, parking facilities, remote highways, mining areas, ports, events, and temporary charging expansions. Whether permanent or mobile deployment, ZECONEX ensures stable and dependable fast charging across diverse applications.
Intelligent Charging Experience with Advanced Connectivity
Featuring 7–10 inch HMI touch displays, RFID and credit card payment systems, and OCPP 1.6J compatibility, ZECONEX enables seamless integration with major charging networks and billing platforms.
Connectivity options, including GSM / LTE / 4G / LAN support real-time remote monitoring, fault diagnosis, power scheduling, and load balancing.
EV operators can manage multiple charging facilities from a central platform, improving service quality, optimizing energy dispatch, and reducing operational downtime.
Scalable and Future-Proof Clean Energy Infrastructure
Optional PV input (260–825 VDC, max 40 kW) allows direct solar-to-battery energy harvesting, enabling true renewable-powered EV charging without extensive grid upgrades.
With modular capacity, optional connector expansion (up to 4 CCS ports), and power scalability from 120 kW to 800 kW, ZECONEX evolves with growing charging demand rather than becoming obsolete. Compliant with UL, IEC, ISO, and EMC international standards, ZECONEX offers long-term investment security for operators building commercial EV charging infrastructure.
Application Scenarios

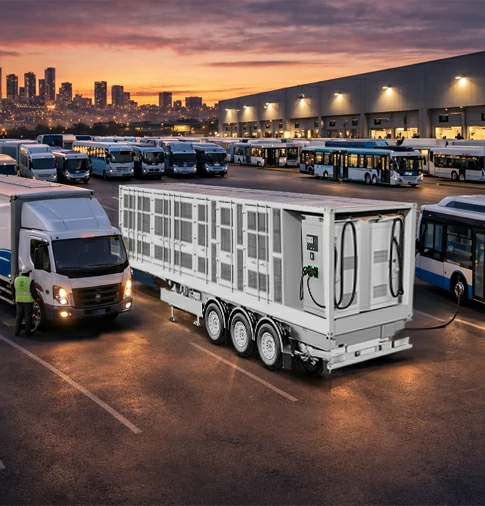

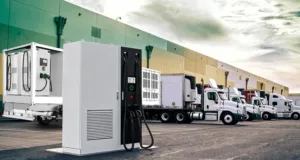

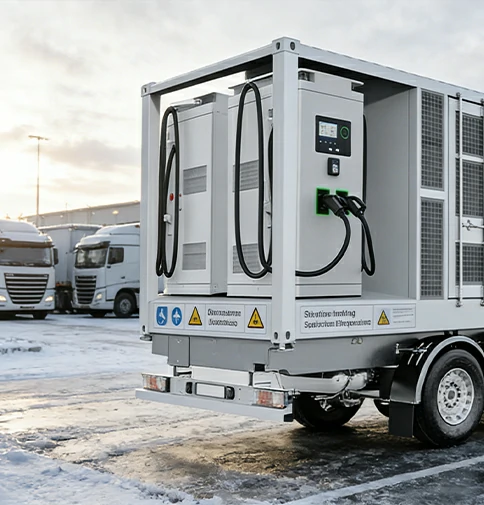

Fleet

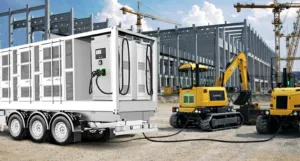

Construction sites

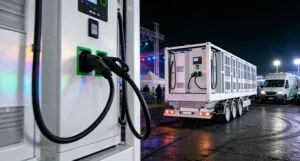

Events

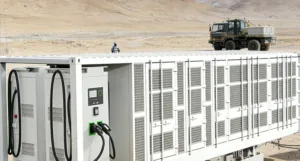

Field Sites
Comprehensive Support
Cloud Platform
Dedicated to enabling the future of e-Mobility with the most open, secure, and robust charging network, our cloud-based EV charging platform makes it easy for operators to manage and customize chargers to their exact needs.
We provide everything required to deliver a complete charging ecosystem, including a management system, mobile app, and seamless interoperability across networks and hardware.
OEM/ODM Service
Our experienced R&D teams in China and abroad specialize in international charging protocols, enabling us to provide reliable OEM and ODM services for clients worldwide.
Comprehensive After-sale Guarantee
If the product is damaged or malfunctions due to manufacturing defects, Zeconex will provide free maintenance or replacement of parts to ensure reliable long-term operation.
Faq
- 120 kW: Suitable for small commercial sites, office fleets, or locations with low daily EV turnover.
- 400 kW: Ideal for medium-demand fleet depots, public stations, and highways with frequent charging needs.
- 800 kW (2 × 400 kW modules): Best for high-traffic charging hubs, logistics centers, bus depots, or large-scale commercial applications.
Your choice depends on expected daily traffic, vehicle types, grid capacity, and site space.
ZECONEX integrates LFP batteries, high-power DC chargers, AC converters, DC converters, EMS, and fire protection in one mobile platform.
With up to 800 kW output, multi-connector support, and flexible AC outputs, ZECONEX provides greater versatility and grid independence than many standard fast-charging stations.
- ZECONEX
- ABB
- Delta
- Siemens
- Schneider Electric
- Tesla Supercharger
Key features to consider:
- Power output (kW) — matches your traffic and vehicle types
- Energy storage integration — for off-grid or peak-load management
- Safety & protection — IP rating, fire suppression, leakage detection
- Connector types — CCS1, CCS2, AC outlets for versatility
- Deployment flexibility — modular, mobile, plug-and-play installation
- Connectivity & billing — OCPP compliance, remote monitoring, RFID/credit card support
- Renewable integration — optional PV input for clean energy use
