Commercial MINI DC EV Fast Charger 30-80kW
Features:
Contact Us For Bulk Order Price
Description
DC Fast Chargers and EV Fast Chargers are commercial charging solutions designed for efficient and reliable fast charging of electric vehicles. This series offers 30kW, 40kW, 60kW, and 80kW power options to support different commercial charging scenarios.
With a wide DC output voltage range of 150–1000V, the chargers support CCS2, CCS1, NACS, and GB/T connectors, ensuring broad vehicle compatibility. Featuring over 95% efficiency, a power factor up to 0.98, and support for OCPP 1.6J and ISO 15118, these DC EV fast chargers enable stable performance and smart charging management.
Designed for indoor and outdoor use, the chargers feature an IP55-rated enclosure, comprehensive electrical protection, and wall-mounted or pedestal installation options. They are ideal for shopping centers, commercial parking facilities, hotels, workplaces, and EV dealerships.
Model | ZECO-0300-D2 | ZECO-0400-D3 | ZECO-0600-D4 | ZECO-0800-D5 |
|---|---|---|---|---|
Technical Features | ||||
Max Power | Up to 30KW | Up to 40KW | Up to 60KW | Up to 80KW |
Input/Output power | 400VAC+10%-50/60Hz-3phase(CCS2 and GB/T) | |||
Power factor | 0.98 | |||
Efficiency | >95% | |||
Measuring accuracy | Level 0.5 | |||
Output voltage range | CCS2/CCS1/ NACS/GB/T: 150~1000VDC | |||
Output current range | 0-100A | 0-133A | 0-200A | 0-250A |
Communication | ISO15118 / DIN70121(between charger & vehicle) / Ethernet / 44G/OCPP 1.6J(TLS1.2) | |||
User interface | 4.3 inch Touch Screen / RFID card and APP/7 inch | |||
Versatility | EN / IEC 61851-1: 2019, EN / IEC 61851-23:2014, UL2202, UI2594 | |||
Load balancing | Load balancing meter and CT(optional) | |||
Energy Meter | CE certified (optional) | |||
MCCB | MCCB OR MCCB with typeA (Optional) | |||
Security design | Over / under voltage protection, overload protection, current leakage protection, grounding protection, and lightning surge protection | |||
DC Plugs | CCS2 Cable 5M | |||
Physical Properties | ||||
Application place | Indoor & Outdoor | |||
IP Level | IP55 | |||

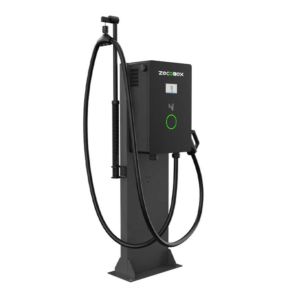

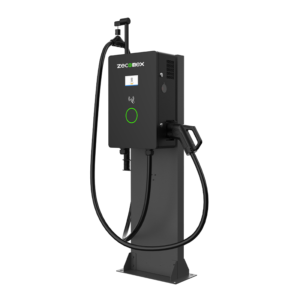

Installation method | Wall mount, pedestal mount (optional) | |||
Sound noise | <75DB in all directions | |||
Operating Temp. | -30°C to + 50°C | |||
Humidity | Max 95%(non-regulating) | |||
Product Dimensions | 620*410*205(L*W*H)mm | 660*465*330(L*W*H)mm | 900*650*260(L*W*H)mm | |
Package Dimension | 810*540*310(L*W*H)mm | 1010*720*510(L*W*H)mm | 1190*760*620(L*W*H)mm | |
Net Weight | 41Kg | 72Kg | 124Kg | |
Gross Weight | 45.3Kg | 78Kg | 150Kg | |
Wholesale DC Fast Charger & EV Fast Charger: What to Consider?
DC Fast Charger & EV Fast Charger Performance
DC fast charger charging power is an important factor affecting the charging speed; usually, the higher the charging power, the faster the charging speed.
DC fast charger output voltage and current need to ensure that they can meet the charging needs of electric vehicles in the target market. Higher charging efficiency of the DC fast charger means less energy loss and lower operating costs.
The operating temperature range needs to ensure that it can work properly under the environmental conditions of the target market.
The protection rating of DC fast chargers needs to ensure that they can resist dust, rain, and other environmental exposure.
DC Fast Charger & EV Fast Charger Quality
The components used in a DC EV fast charger should be high-quality components of well-known brands to ensure the reliability and stability of the product.
The manufacturing process of the DC EV fast charger should be advanced to ensure the quality and consistency of the product.
The certification of a DC EV fast charger should be certified by relevant authoritative organizations, which proves that the product meets the safety and performance standards.
DC EV fast charger should be certified by relevant authoritative organizations, which proves that the product meets the safety and performance standards.
The warranty period of the DC EV fast charger should provide a sufficient warranty period to guarantee the after-sales service.
DC Fast Charger & EV Fast Charger Price
The price of the product should be competitive to attract traders in the target market. The product price should match the performance, quality, and brand of the product. The product price should have a certain profit margin to ensure that traders can make a profit.
DC Fast Charger & EV Fast Charger Service
Suppliers should provide comprehensive pre-sale, in-sale, and after-sale services. Suppliers should provide sufficient product information and technical support. Suppliers should respond to traders' needs and problems promptly.
Product Applications
Suitable for installation in shopping centers, residential community garages, companies, hotels, EV dealerships, service workshops, and other commercial or semi-public charging locations.
Comprehensive Support
Cloud Platform
Dedicated to enabling the future of e-Mobility with the most open, secure, and robust charging network, our cloud-based EV charging platform makes it easy for operators to manage and customize chargers to their exact needs.
We provide everything required to deliver a complete charging ecosystem, including a management system, mobile app, and seamless interoperability across networks and hardware.
OEM/ODM Service
Our experienced R&D teams in China and abroad specialize in international charging protocols, enabling us to provide reliable OEM and ODM services for clients worldwide.
Comprehensive After-sale Guarantee
If the product is damaged or malfunctions due to manufacturing defects, Zeconex will provide free maintenance or replacement of parts to ensure reliable long-term operation.
