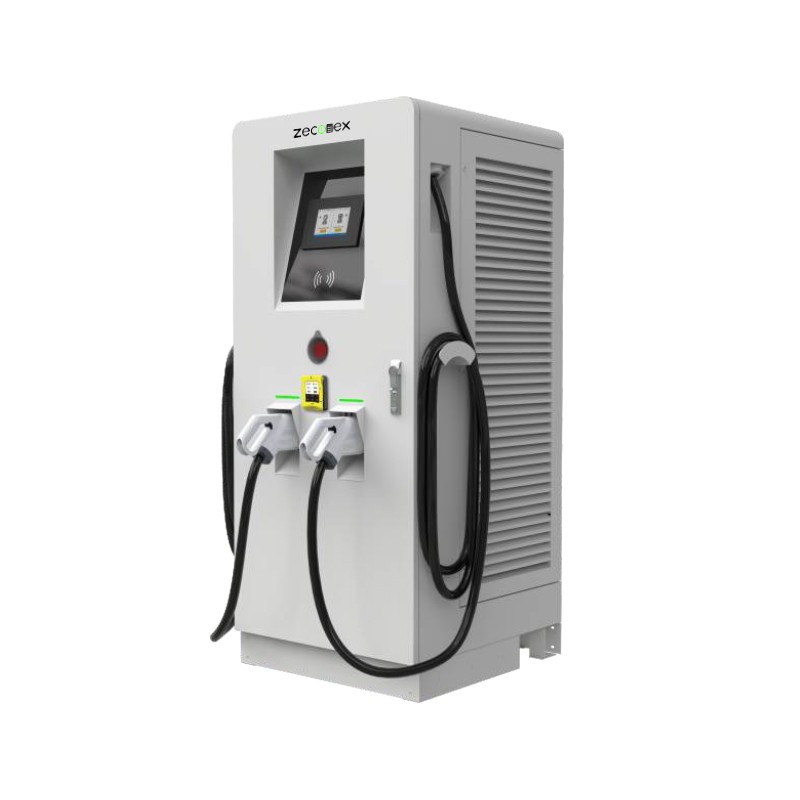

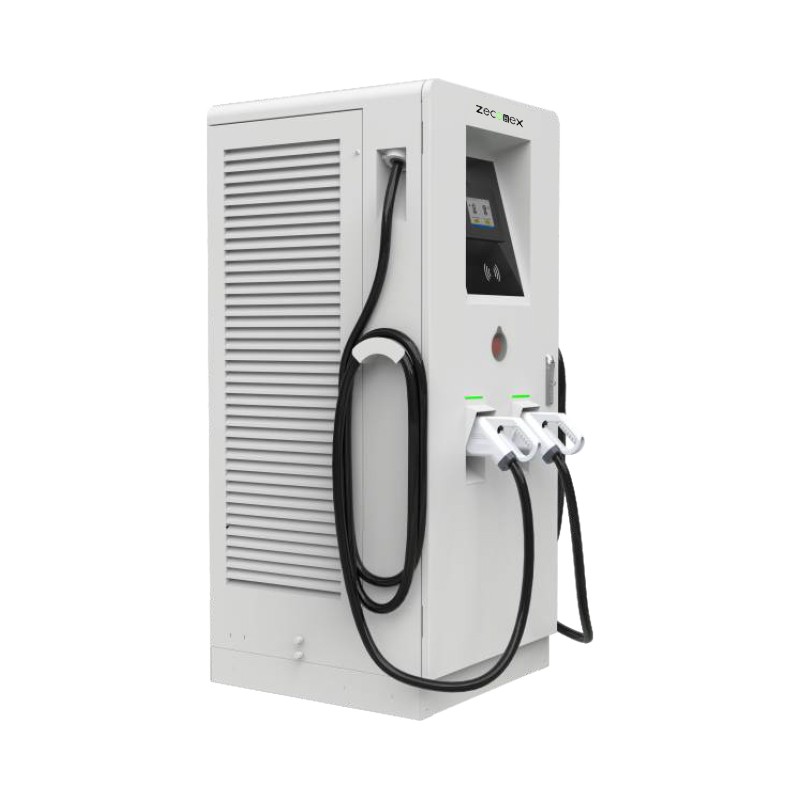

300-480KW Smart CCS2 EV Fast Charger
Features:
Contact Us For Bulk Order Price
Description
This 300-480 kW Smart CCS2 EV Fast Charger is designed for fast charging electric vehicles. EV charger, efficient, convenient, and reliable.
The size of the product is 750*770*1850mm, the packing size is 800*850*1950(L*W*H)mm, packed in a wooden case. DC plug cable 5M, the power meter has a CE certificate, and the RCD is type A. The charger is designed for fast charging electric vehicles.
If you are looking for wholesale, efficient, and convenient electric vehicle fast chargers for electric vehicles, then the 300-480 kW Smart CCS2 EV Fast Charger will be your ideal choice. Contact Zeconex 10-year-old EV charger manufacturer, today for more information!
Reliable quality, EV fast charger adopts advanced technology and high-quality materials. With a high protection level and reliable performance, it can run stably for a long time.
High protection level, protection level up to IP54, optional IP65, EV fast charger can be used in a variety of harsh environments. Dual output ports can charge two electric vehicles at the same time, improving charging efficiency.
Multiple payment methods, support App operation, RFID authentication, and plug and play, convenient for users.
High power output, providing a 300kw charger or a 480kw EV fast charger, with four power options to meet different charging needs. Long warranty period, providing a two-year warranty service, so that you can use it without worry.
Wide application, 300-480KW Smart CCS2 EV Fast Charger can be used in various electric vehicle charging scenarios, such as highway charging stations, parking lots, commercial areas, and so on.
Tech Specs
Model | ZECO300K-D9 | ZECO300K-D10 | ZECO400K-D11 | ZECO480K-D12 |
|---|---|---|---|---|
Technical Features | ||||
Charging Capacity | Up to 300KW | Up to 360KW | Up to 400KW | Up to 480KW |
Max Power | Up to 300KW | Up to 360KW with 2 gun Up to 350KW with 1 gun | Up to 400KW with 2 gun Up to 350KW with 1 gun | Up to 480KW with 2 gun Up to 350KW with 1 gun |
Input Voltage | 400VAC±10%-50/60Hz-3phase(CCS2 and GB/T) 480VAC±10%-50/60Hz-3phase(CCS1+NACS) | |||
Power factor | ≥0.98 | |||
Efficiency | >95% | |||
Measuring accuracy | Level 0.5 | |||
Output voltage range | CCS:150~1000VDC | |||
Output current range | 0-250A/0-350A(optional) | |||
Communication | ISO15118/DIN70121(between charger &vehicle)/Ethernet/4G/OCPP 1.6J | |||
User interface | LCD 7 inch Touch Screen /RFID card and APP | |||
Energy Meter | CE certified | |||
RCD | Type A | |||
Versatility | EN/IEC61851-1:2019,EN/IEC61851-23:2014,UL2202,UI2594 | |||
Load balancing | Load balancing meter and CT(optional) | |||
Security design | Over/under voltage protection,overload protection,current leakage protection, grounding protection,lightening surge protection | |||
DC Plugs | Cable 5M | |||
Physical Properties | ||||
Warranty | 2 years | |||
Cooling | Air cooled | |||
IP Level | IP54 | |||
Sound noise | <70DB in all directions | |||
Operating temperature | -20°C to +50°C | |||
Humidity | Max.95%(non-regulating) | |||
Product Dimensions | 750*770*1850mm | |||
Package Dimension | 800*850*1950(L*W*H)mm Wooden packing | |||
If you are considering installing electric vehicle charging facilities at your premises, the Zeconex CCS EV Charger - 300KW-480KW EV Fast Charger is an option worth considering.
Why Choose Zeconex for Your DC Fast Charger Needs?
Zeconex is a leading supplier of DC fast chargers for electric vehicles. DC fast charger manufacturers offer a wide range of chargers to meet the needs of different customers, including public charging stations, fleet operators, and home users. Zeconex Commercial EV Charger With Digital Display is known for its high quality, reliability, and efficiency. It is our popular product, and many customers make purchases from it.

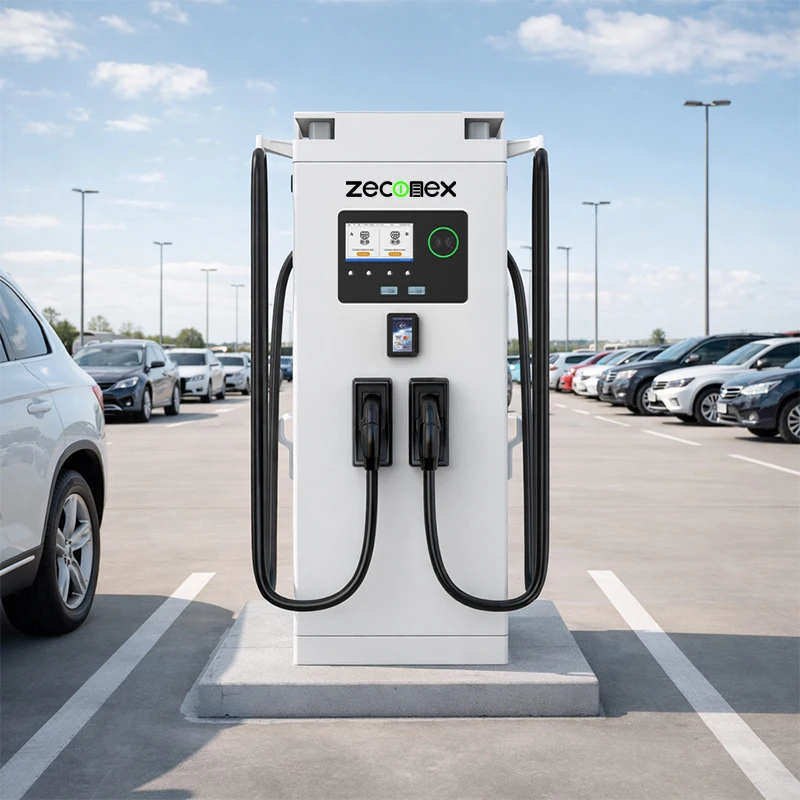

High Quality EV Charger Price
Zeconex uses high-quality components and materials in its chargers, which ensures that they are durable and long-lasting.
We also have a rigorous quality control process to ensure that all chargers meet our high standards. The EV charger price is affordable and is a high-quality EV charger.

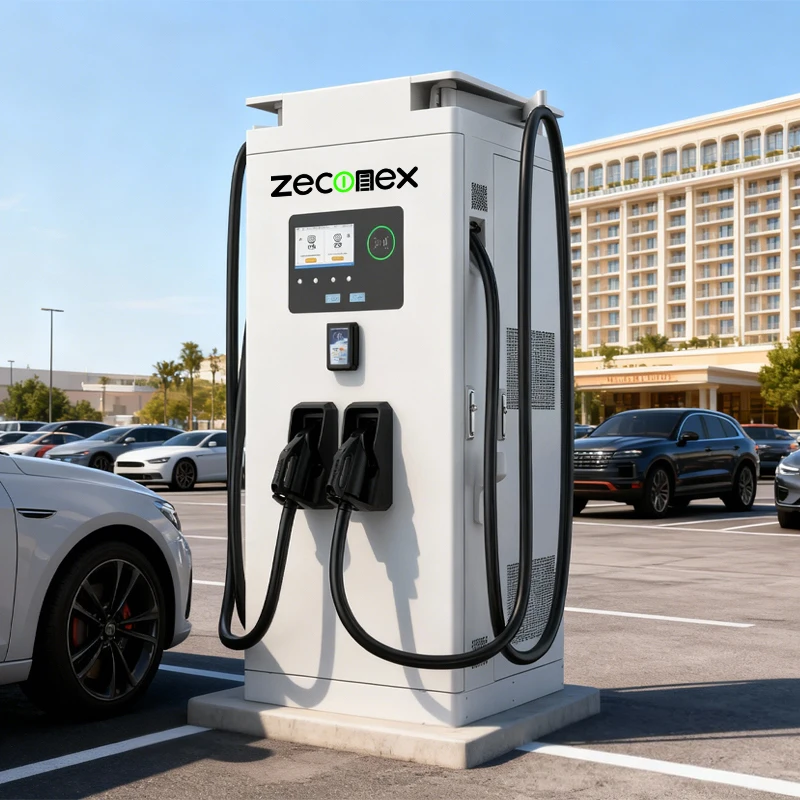

Reliability Electric Charger Companies
Zeconex chargers are known for their reliability. They are designed to withstand harsh weather conditions and heavy use.
Zeconex electric charger companies also offer a comprehensive warranty program to protect their customers' investment.

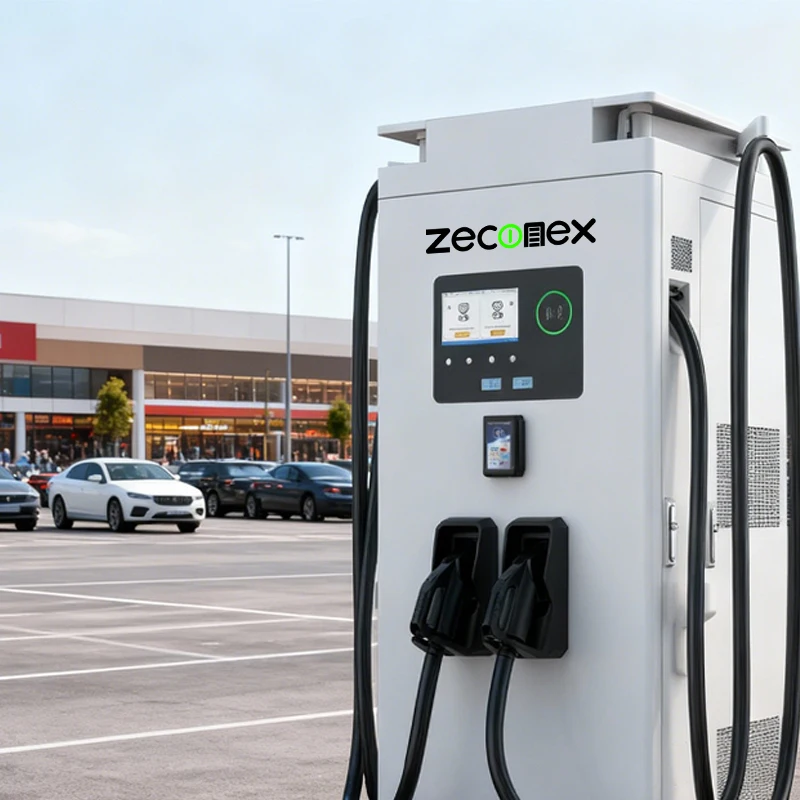

Efficiency EV Charger Factory
Zeconex EV charger factory is a leader in innovation and sustainability. We are constantly pushing boundaries to develop even better technology, all while keeping the environment in mind.
If you are considering investing in EV fast chargers, then Zeconex is a company that you should consider. We offer high-quality, reliable, and efficient chargers that can help you reduce your environmental impact and improve customer satisfaction. Let's discuss your specific needs and find the perfect charger for your application. Contact us today!
Cloud Platform
Dedicated to enabling the future of e-Mobility by providing the most open, secure, and robust charging network anywhere. A charging platform based on the cloud server makes it simple for charger owners to operate and customize chargers to meet their specific requirements. We provide everything you need to offer a complete EV charging solution.
Mobile App
The charging App connects EV drivers with charging stations, allowing them to easily find a charger and enjoy the charging service. It enables users to perform location searches, monitor charging, and settle payments. All is done on a mobile phone.
Applications
Application Case
EV Fast Charger Installed in Highway Service Area
A highway service area installed 20 units of 480KW intelligent EV fast chargers for electric vehicles, which can charge 40 electric vehicles at the same time, effectively alleviating the queuing phenomenon during the peak charging period.
Installation of EV Fast Charger at Charging Stations
A charging station installed 10 sets of 400KW intelligent EV fast chargers for electric vehicles, charging 200 electric vehicles per day on average, significantly improving charging efficiency.
EV Fast Charger Installed in Logistics Station
A logistics station installed 5 sets of 300KW intelligent EV fast chargers for electric vehicles, providing fast charging for electric trucks, shortening logistics transportation time, and improving operational efficiency.
EV Fast Charger Installed in a Large Shopping Center
A large shopping center installed 3 units of 360KW smart EV fast chargers to provide fast charging for customers' electric vehicles, enhancing the attractiveness of the shopping center.
If you are considering installing electric vehicle charging facilities for your premises, the 300KW-480KW Smart EV DC Fast Charger is an option worth considering.
You May Also Like
FAQs
What is a CCS EV charger?
CCS EV Charger is a kind of electric vehicle charging equipment. The CCS2 charging socket is a multifunctional interface for electric vehicle charging, which is especially widely used in Europe and other global markets. It can support both AC (AC) and DC (DC) charging at the same time.
It can support both AC and DC charging with high efficiency, safety, and flexibility, and the CCS2 socket has become the mainstream standard for EV charging in the world due to its modular design, powerful DC fast charging capability, intelligent communication, bi-directional charging support, and high safety.
Is J1772 the same as CCS?
J1772 is not the same as CCS; J1772 is an AFSL standard for portable charging guns, which is mainly used for home AC charging of new energy electric vehicles, while CCS (especially CCS2) is a multifunctional connector capable of supporting AC and DC charging at the same time, which is widely used in Europe and other markets around the world.
What's the difference between CCS and type 2?
The main difference between CCS (especially CCS2) and Type 2 is its functionality and compatibility:
CCS2 is a combined design, with a Type 2 connector on the top for AC slow charging, and two additional DC pins on the bottom for DC fast charging.
Therefore, the CCS2 can support both AC and DC charging at the same time, while the Type 2 is mainly used as an AC charging port.
What is EV DC fast charging?
EV DC fast charging refers to the process of fast charging an electric vehicle using direct current. Compared to AC charging, DC charging can provide higher charging power and faster charging speed, which is especially suitable for long-distance traveling or scenarios that need to replenish power quickly.
Which EV charger is faster, AC or DC?
A direct current (DC) charger is usually faster than an alternating current (AC) charger when it comes to charging speed. This is because a DC charger provides the DC power needed by the EV's battery directly, whereas an AC charger needs to convert AC power to DC power before charging, which increases charging time.
What is the fastest charging station for EVs?
Regarding the fastest charging station for EVs, it usually depends on the charging power of the charging station and the charging capacity of the EV. Currently, there are several high-power DC fast charging stations on the market, such as the 350 kW CCS2 charging station.
However, to achieve the fastest charging speeds, it is also necessary for the electric vehicle itself to support high-power charging. Therefore, it is not possible to generalize which charging station is the fastest, but it needs to be judged on a case-by-case basis.
As a Zeconex charger supplier, we are committed to providing high-quality and high-efficiency electric vehicle charging equipment to meet the needs of different customers. If you have any questions or needs about electric vehicle chargers, please feel free to contact us.
