7KW 11KW 22KW Level 2 Home EV Charger


Features

  • Simple operation and intelligent, start/stop charging by RFID card, simple HMI with LED indicators
  • Home use app with intelligent bluetooth control the wallbox
  • Robust structure IP54, IK10
  • Type A+DC 6mA leakage protection
  • Wall-mount or floor-stand installation
  • Flexible Option, Type 1 or Type 2 charging cable, 16A or 32A adjustable output current
  • RFID authentication, optional with plug and play
  • Type 2 cable 5M industrial grade cable included

Contact Us For Bulk Order Price

  • FEATURES & TECH SPECS

Description

The 7KW 11KW 22KW Level 2 Home EV Charger offers a perfect blend of convenience and peace of mind for home charging. This secure and station boasts intelligent features like RFID card access and real-time status monitoring through a user-friendly app. Rest assured, your electric vehicle is in safe hands with its comprehensive protection suite, including over current, residual current, and over/under temperature safeguards.

Tailor your charging experience to your needs. The 7KW 11KW 22KW Level 2 Home EV Charger offers multiple configurations, including adjustable output current (16A or 32A) and compatibility with both Type 1 and Type 2 charging cables. This compact and robust charger boasts a weatherproof design (IP54) for seamless indoor or outdoor installation, either wall-mounted or floor-standing to suit your space.

Experience the future of EV charging with the home chargers for electric vehicles. The vibrant OLED color screen provides clear information on charging status, while Bluetooth connectivity allows for convenient app control. With a competitive price and efficient operation, this charger delivers exceptional value for money, making the switch to electric mobility a breeze.

Features

  • Secure and safe
  • The best charging station for home and private use
  • Cost effective, compact design, home use with competitive price
  • Simple operation and intelligent, start/stop charging by RFID card, simple HMI with LED indicators
  • Friendly interface
  • OLED Color screen for easiest user interaction and real-time status view
  • Home use app with intelligent bluetooth control the wallbox
  • Robust structure IP54, IK10
  • Type A+DC 6mA leakage protection
  • Designed for outdoor or indoor installation
  • Certified to operate between -30°C to 55°C
  • Weighs 5kg
  • Type 1 or Type 2 charging cable
  • Wall-mount or floor-stand installation
  • Over current protection, Residual current protection, Ground protection, Surge protection,
  • Over/Under voltage protection, Over/Under frequency protection, Over/Under temperature protection
  • Flexible Option, Type 1 or Type 2 charging cable, 16A or 32A adjustable output current
  • RFID authentication, optional with plug and play
  • Wall-mounted or floor-stand installation
  • Plastic PC940/ Galvanized steel Casing, front panel with temper glass
  • Type 2 cable 5M industrial grade cable included

Tech Specifications

Model

ZECO7K-Y1

ZECO11K-Y2

ZECO22K-Y3

Technical Features

Enter your text here...

Charging Capacity

Up to 7KW

Up to 11 KW

Up to 22KW

Input/Output power

230VAC±20%-50/60Hz-32A-

1phase

400VAC±20%-50/60Hz-

16A-3phase

400VAC±20%-50/60Hz-

32A-3phase

RCD

30Ma RCD Type A and DC 6Ma RCD function

Standby power

<3W

Measuring accuracy

1%

Communication

Bluetooth/WIFI(Optional) APP

Load balancing

CT+Meter((Optional))

PEN Protection

Optional

User interface

LED/LCD(3.5")/ RFID(mifare iso& IEC 14443A)

Certifificate/Compliance

CE / EN/IEC 61851-1:2017, EN/IEC 61851-21-2:2018

Charging Interface

Type 2 cable 5M

Special Protection

Over current protection, Residual current protection, Ground protection, Surge

protection, Over/Under voltage protection, Over/Under frequency protection,

Over/Under temperature protection

Physical Properties

Cell

Warranty

2 years

Protection

IP54, IK10,

Enclosure

Plastic PC940/ Galvanized steel

Enter your text here...

Front Panel

Temper glass

Installation

Wall-mount/Pole-mount

Cooling

Natural cooling

Operating temperature

-30℃to+55℃

Humidity

Max.95%(non-regulating)

Product Dimensions

320*230*100(L*W*H)mm

Package Dimension

465*325*270(L*W*H)mm

Net Weight

5.1Kg

5.5Kg

5.5Kg

Gross Weight

5. 8Kg

6.2Kg

6.5Kg

zeconex home ev charger installation 0

Professional EV Charger Manufacturer

Zeconex is a top EV Charger manufacturer, offering ev charger solutions in homes and buildings for years.  It is a trusted brand that offers EV charging & beyond.

Zeconex lays the foundations for a future of smarter, trustworthy, and emission-free mobility, obtainable by every person, almost everywhere. Zecoenx offers an overall EV charging solution from compact, high quality ac EV wall boxes, and dependable DC fast charging stations with durable connection, to innovative on-demand electrical bus charging systems, we release infrastructure that meet the demands of the future generation of smarter mobility.

When making an investment on an EV charger we know that for our consumers it has to do with more than the charger. It's about having the ability to rely on the company you collaborate with. There are a great deal of business that sell chargers yet none that meet the values you already get out of Zeconex. Top quality. Safety. Longevity. You understand you can trust your electric automobile needs to Zeconex - a firm that has been giving safe and reliable power connections for years. We have actually been there for you in the past, we will certainly be there for you and all your EV charger needs for years ahead.

Cost to Install a Level 2 Charger

The cost to install a level 2 charger varies depending on a number of factors, including the type and power of the charger, the electrical work, the location of the installation, and the cost of labor. 7kw chargers are typically less expensive than 22kw chargers. If you need to upgrade existing electrical wiring or install a circuit breaker, the cost will be higher. A charger installed in a garage may be cheaper than one installed in an outdoor location. Electricity rates vary by region.

In general, the cost to install a level 2 charger ranges from $1,000 to $2,500. Charger costs - a 7kw charger costs approximately $300 to $800, an 11kw charger costs approximately $500 to $1,200, and a 22kw charger costs approximately $800 to $1,700. Cost of electrical work - the cost of electrical work can range from $200 to $800. Installation costs - installation costs for an electrician typically range from $100 to $200 per hour. Specific level 2 charger installation costs vary by vendor, features, and many other factors, so if you're looking for a powerful, easy-to-use, and affordable level 2 home ev charger, the 7kw 11kw 22kw level 2 home ev charger is a great choice. Contact us for a free quote.


zeconex level 2 charger application 06
zeconex level 2 ev charger application 05

How to Install a Level 2 Charger

There are two ways to install a level 2 charger, the level 2 charger can be mounted on the wall or on the floor. Wall mounted level 2 chargers are the most common type of installation. They are usually mounted on a wall outside of a garage or house. Wall-mounted chargers are usually cheaper than floor-mounted chargers because they require less electrical work. Floor mounted level 2 chargers are usually mounted on the floor outside of a garage or house. They are usually more expensive than wall-mounted chargers because they require more electrical work. However, floor-mounted chargers are more accessible, which may be useful for people with mobility issues.

Our solutions for home use Dynamic Load Balance

Dynamic Load Balance is a smart charging feature which balances the distribution of the total available power between chargers and other loads within the building in real time. It not only protects appliances, but also ensures EVs are fully charged at the lowest cost.

CT box monitors the total energy consumption and reports to the management system. The system controls the charging power of each individual charger automatically to avoid overloading when chargers and other loads are being used simultaneously.



zeconex ev charging solution for home

Product Applications

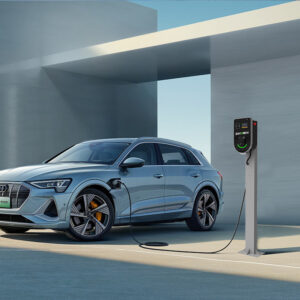

zeconex home charging station application

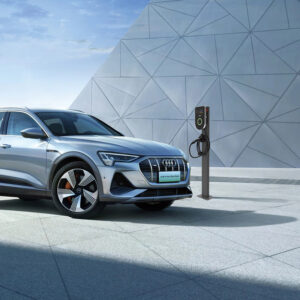

zeconex electric car home charging station application
zeconex electric car charger for home application
  • Shopping centers
  • Residential community garages
  • Private house
  • Companies and hotels
  • EV dealers
  • Service workshops
  • You May Also Like:

    Wholesale Electric Vehicle Charger FAQ for Traders in China


    1. What power options are available for your electric car chargers?

    We offer EV chargers with various power options including 7kW, 11kW and 22kW.

    2. What safety features does your EV charger have?

    Our EV chargers come with a variety of safety features including:
    Overcurrent protection
    Residual current protection
    Over/under temperature protection
    Over/under voltage protection
    Over/under frequency protection

    3. What are the mounting options for your EV chargers?

    Our EV chargers can be wall or floor mounted and are compatible with Type 1 and Type 2 charging cables.

    4. What is the warranty period for your EV chargers?

    We offer a 2-year warranty.

    5. Does your EV charger comply with Chinese standards?

    Yes, the Level 2 Home Electric Vehicle Charger complies with Chinese standards.
    It uses GB/T standard charging ports, including Type 1 and Type 2.
    Complies with the charging power and current limits of the GB/T standard.
    Equipped with GB/T standard safety features such as over-current protection, residual current protection and over/under temperature protection.
    Capable of withstanding voltage and frequency fluctuations in China's power grid.


    We are committed to providing safe and reliable EV chargers to our customers in China. We regularly review our products to ensure that they comply with the latest standards and regulations.
