Dual Gun AC EV Charger
Features:
Contact Us For Bulk Order Price
Description

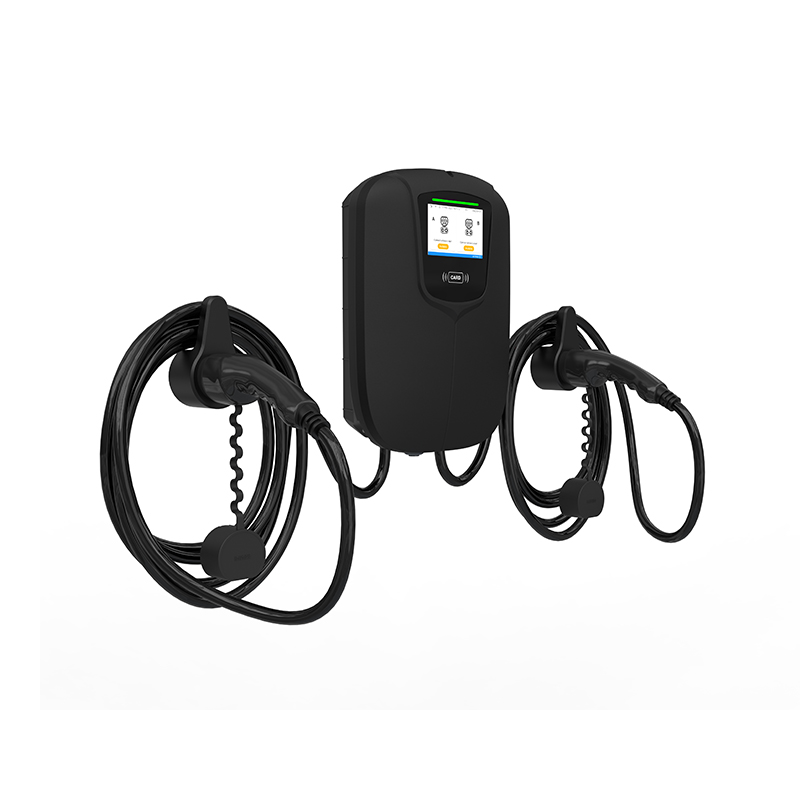

Introduce you to our products--Public EV Wallbox series chargers. Commercial EV charger comes with 2 2-year warranty. The Dual Gun AC EV Charger is made of a galvanized steel shell and a toughened glass front panel, with a durable structure and long service life.
The natural cooling design eliminates the need for additional cooling equipment and reduces maintenance costs. This wall-mounted electric car charger business, adaptable to -30℃ to +55℃ working ambient temperature and maximum 95% humidity (non-condensing).
The AC EV Charger is equipped with a 4.3-inch color touch screen LCD, which is intuitive and easy to operate, providing a rich interactive experience. EV chargers support RFID (mifare iso& IEC 14443A) identification technology, and users can activate the charging by swiping the card, which is convenient and fast.
7kw 11kw 22kw Dual Gun AC chargers support OCPP1.6 JSON protocol (OCPP2.0 optional), realizing seamless connection with the charging management system. THE AC EV Charger is equipped with WIFI, Ethernet, or 4G (optional) communication module, supporting remote monitoring and management, which is convenient for operators to carry out equipment management and data analysis.
The business electric car charger AC EV charger has passed a number of international standards and certifications, including CE, ENIEC61851-1:2019, IEC62955:2018, etc., which ensures that the product quality and safety are in line with global standards.
The Dual Gun AC EV Charger is widely used in parking lots, shopping centers, residential communities, gas stations, and other public charging places to provide convenient and efficient charging services for electric vehicle users.
We promise to provide you with high-quality EV chargers for business products, professional service, and a competitive price.
Tech Specs
Model | ZECO14K-H1 | ZECO22K-H2 | ZECO44K-H3 |
Technical Features | |||
Charging Capacity | Up to 14KW(7KW*2) | Up to 22KW(11KW*2) | Up to 44KW(22KW*2) |
Input/Output power | 230VAC±20%-50/60Hz- 32A*2-1phase | 400VAC±20%-50/60Hz- 16A*2-3phase | 400VAC±20%-50/60Hz- 32A*2-3phase |
RCD | RCMU(DC 6ma)or Type B(optional) | ||
Standby power | <5W | ||
Measuring accuracy | 1% | ||
Energy Meter | Inside PCBA | ||
OCPP | OCPP1.6 Json(OCPP2.0 optional) | ||
Communication | WIFI/Ethernet/4G(Optional) | ||
User Interface | Color touch LCD(4.3)/ RFID(mifare iso& IEC 14443A) | ||
Input plug | NEMA 14-15(Optional) | ||
Certificate/Compliance | CE/ENIEC61851-1:2019/IEC62955:2018/EC61008-1:2010/EN IEC 62311:2020/EN50665:2017EN 50364:2018/EN301489-1V2.2.3/EN301489-3 V2.1.1/EN 301489-17 V3.2.4/ENIEC61851-21-2:2021/ENIEC61000-3-11:2019/EN 61000-3-12:2011 | ||
Charging Interface | Type 2 socket/ 5M Cable | ||
Special Protection | Over current protection, Residual current protection, Ground protection, Surge protection, Over/Under voltage protection, Over/Under frequency protection, Over/Under temperature protection | ||
Physical Properties | |||
Warranty | 2 years | ||
Protection | IP65, IK10 | ||
Enclosure | Galvanized steel | ||
Front Panel | Temper glass | ||
Installation | Wallbox | ||
Cooling | Natural cooling | ||
Operating temperature | -30˚C to +55˚C | ||
Humidity | Max.95%(non-regulating) | ||
Product Dimensions | 585*385*205(L*W*H)mm | ||
Package Dimension | 605*405*225(L*W*H)mm | ||
Net Weight | 7Kg | 7Kg | 7Kg |
Gross Weight | 8Kg | 8Kg | 8Kg |
AC Charger for Car - powerful charging capabilities
Our best EV chargers for business charging equipment offer flexible options from up to 14KW (7KW for single gun) to up to 44KW (22KW for dual gun), whether it's for home use, commercial parking lot, or charging station, you'll find the right 7kw 11kw 22kw ac charger model.
High-performance AC charger for car - High power output means shorter charging time, which improves user satisfaction and charging station utilization efficiency, and is the key to improving business competitiveness.
AC Charger - wide range of compatibility and certifications
Complete international certifications, AC Charger products have been awarded many international safety and performance certifications such as CE, ENIEC61851-1:2019, and IEC62955:2018.
Multiple input/output configurations, supporting 230VAC and 400VAC inputs, single-phase and three-phase options, as well as Type 2 charging ports, are compatible with the majority of electric vehicles on the market, reducing adaptation costs.
AC Charger Car - intelligent communication and monitoring
Built-in OCPP1.6 JSON protocol (OCPP2.0 optional), it is easy to connect with various charging management platforms seamlessly, realize remote monitoring, fault diagnosis, and data analysis, and improve the efficiency of operation and maintenance.
AC charger car has a variety of communication modes, supporting WIFI, Ethernet, 4G (optional), and other communication modes.
AC Charger for EV - user-friendly design
Intuitive operation interface, the AC charger for EV is equipped with a 4.3-inch color touch screen, and offers user-friendly and intuitive operation. The optional RFID card reader supports fast identification and payment.
Comprehensive safety protection, integrating multiple safety mechanisms such as over-current, over-voltage, under-voltage, over-temperature, over-frequency, under-frequency, and leakage protection.
AC EV Charger - durability and maintenance
High-quality materials, the AC EV charger adopts a galvanized steel shell and a toughened glass front panel, with a waterproof and dustproof rating up to IP65, and an impact resistance rating IK10, to ensure stable operation in all kinds of harsh environments.
AC EV Chargers - convenient installation and maintenance

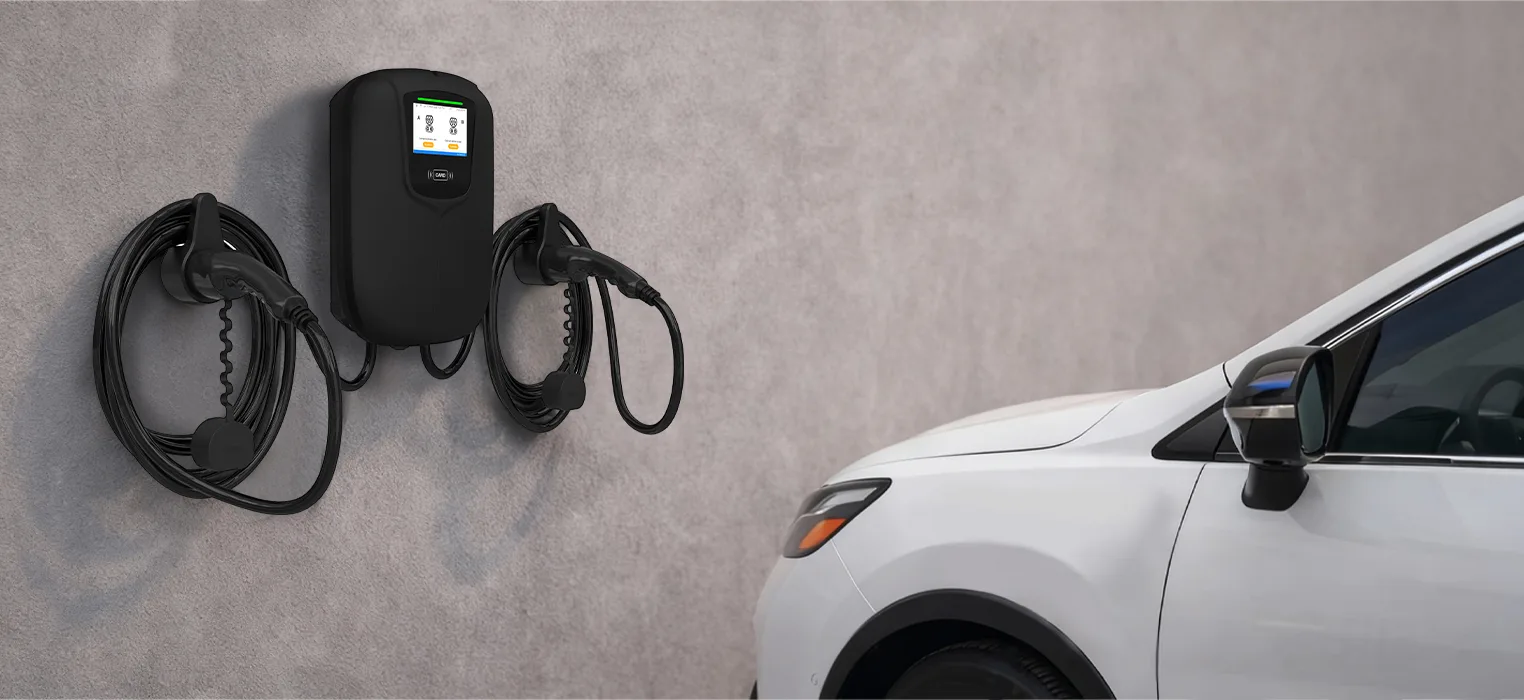

AC EV Chargers' wall-mounted design is easy to install, space-saving, and suitable for a variety of places. Low standby power consumption, with standby power is less than 5W, reducing energy consumption, in line with the concept of green energy saving.
EV AC Charger - cost-effective
Cost-effective, as a wholesaler, we offer competitive prices while guaranteeing the quality and performance of EV charger products.
High-quality charging equipment can be obtained at a lower cost, improving the overall economic efficiency of the business.
Reduced operating costs, in addition to low standby power consumption, our devices may also be optimized in terms of energy conversion efficiency, which further reduces the customer's operating costs.
AC EV Charger - perfect after-sales service
We offer an EV charger with up to two years of warranty service to make our customers worry-free. Provide professional support, with professional pre-sales consulting, an after-sales service team, to provide a full range of technical support and solutions.
Cloud Platform
Dedicated to enabling the future of e-Mobility by providing the most open, secure, and robust charging network anywhere.
A charging platform based on the cloud server makes it simple for charger owners to operate and customize chargers to meet their specific requirements.
We provide everything you need to offer a complete EV charging solution.
Mobile App
The charging App connects EV drivers with charging stations, so that they can easily find a charger and enjoy the charging service. It enables users to do location search, charging monitor, and payment settlement. All is done on a mobile phone.
Product Applications
We look forward to working with you. If you have any questions or needs, please feel free to contact us.
