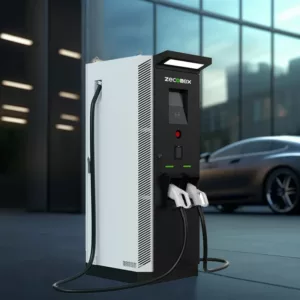

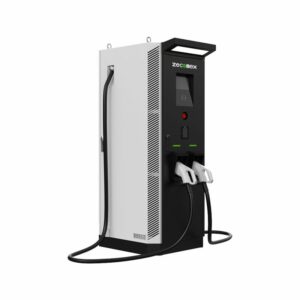

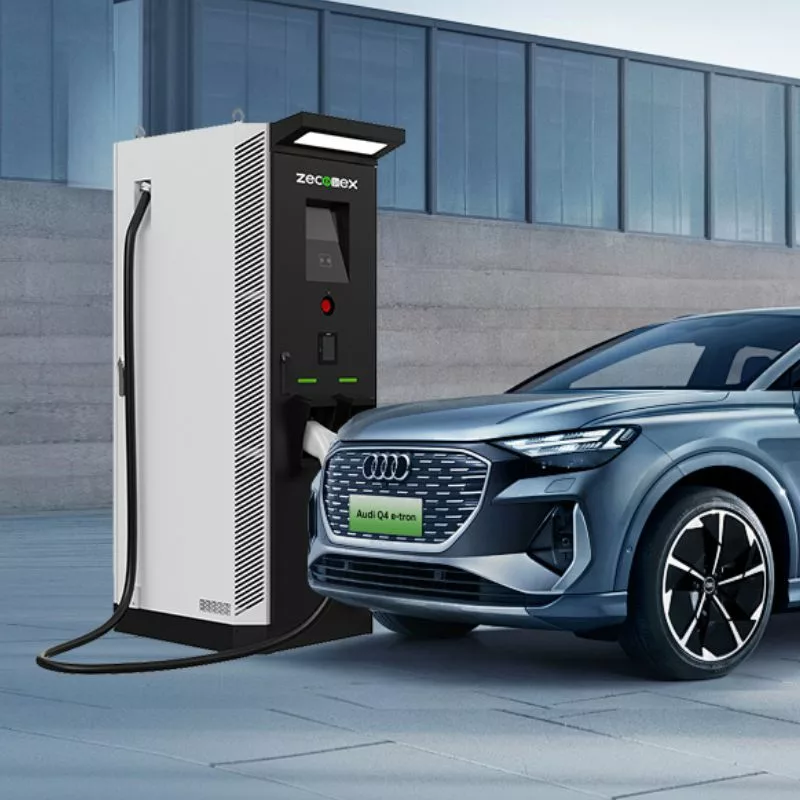

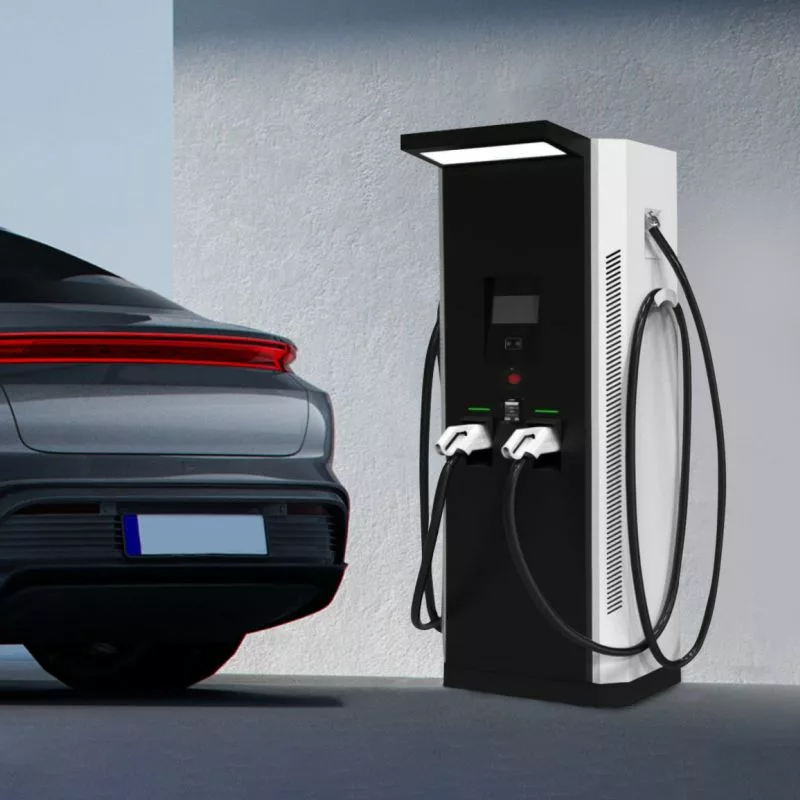

120KW 150KW EV DC Fast Charger


Features

  • High Efficiency
  • One charger with two outputs, simultaneously charging
  • Two CCS2 DC connectors, with output up to 240kW
  • Constant power from 250~1000V voltage, less heat with
    smaller current
  • Flexible Option App operation or RFID authentication or plug and play
  • High protection grade as IP54, with IP65 optional
  • Optional POS terminal for contactless credit card payment
  • Intelligent Control Ethernet / 4G / communication all supported
  • OCPP1.6 communication protocol with CMS
  • Intelligent operation by App and cashless payment
  • Secure and Safe Type A RCD for residual current protection
  • PTB certified energy meter with accurate measurement
  • ISO15118 prepared for advanced feature of Plug & Charge

Contact Us For Bulk Order Price

  • FEATURES & TECH SPECS

Description

DC Fast Charger has super fast charging speed, up to 120kW/150kW/180kW/240kW output power, so you can fully charge your car in a short period of time, and say goodbye to the long waiting time.DC Fast Charger 2-year warranty, so you can use it without worrying about the use of the device.IP54 dustproof and waterproof rating, to ensure that the device can be stably operated in all kinds of weather conditions. IP54 dustproof and waterproof rating ensures the device can operate stably in all kinds of weather conditions. CE safety certification, so you can use it with confidence. Supports PLC communication, Ethernet, 4G network and OCPP 1.6J protocol, realizing intelligent management and remote monitoring of the charging pile.7-inch touch screen operation interface with RFID RFID identification card and cell phone APP operation, making the charging process easier and more efficient.DC Fast Charger complies with EN/IEC 61851-1: 2019 and EN/IEC The DC Fast Charger complies with EN/IEC 61851-1: 2019 and EN/IEC 61851-23: 2014 standards to ensure charging safety. Optional 5 meter or 7 meter CCS2 charging gun is available to meet the needs of different usage scenarios.

Applications

  • Public places: such as highways, gas stations, parking lots, etc.
  • Enterprises: such as factories, office buildings, etc.
  • Residential: such as community, family, etc.

Tech Specs

Model

ZECO120K-D7

ZECO150K-D7

ZECO180K-D7

ZECO240K-D7

Technical features

Max Power

Up to 120KW

Up to 150KW

Up to 180KW

Up to 240KW

Input / Output Power

400VAC±10%-50/60Hz- 3phase

400VAC±10%-50/60Hz- 3phase

400VAC±10%-50/60Hz- 3phase

400VAC±10%-50/60Hz- 3phase

Power factor

≥0.98

Efficiency

>95%

Measuring Accuracy

Level 0.5

Output Voltage Range

CCS: 250~1000VDC

Communication

PLC (between charger & vehicle) Ethernet / 4G / OCPP 1.6J (Optional)

User Interface

LCD 7 Inch Touch Screen / RFID Card and APP

Versatility

EN / IEC 61851-1: 2019, EN / IEC 61851-23: 2014

Security Design

Over/under voltage protection, overload protection, current leakage protection,grounding protection, lightening surge protection

DC Plugs

CCS2 Cable 5M or 7M (Optional)

Energy Meter

CE Certified

Physical Properties

Warranty

2 Years

Cooling

Air Cooled

IP Level

IP54

Sound Noise

<70DB in all Directions

Operating Temperature

-20。C to +50。C

Humidity

Max.95% (Non-Regulating)

Dimensions

750*770*1900mm

Package Dimension

800*850*2000 (L*W*H) mm Wooden Packing

RCD

Type A or Type B (Optional)

Output Current Range

0-250A

0-250A

0-250A

0-250A

EV Charging Pile Watts

DC Quick Charging Stations (1)

120KW EV Charger

EV Charger are currently the most common type of DC fast charging pile. They can provide 120KW of power to electric vehicles, enough to charge most electric vehicles to 80% in 30 minutes.

150KW DC Fast Charger

DC Fast Charger can provide 150KW power to electric vehicles, which is 25% faster than 120KW EV Charger. This means they can charge most electric cars to 80% of their charge in 25 minutes.

180KW EV Charger

EV Charger can provide 180KW power to electric vehicles, which is 20% faster than 150KW fast charging pile. This means they can charge most electric cars to 80% in just 20 minutes.

240W DC Fast Charger

DC Fast Charger are the fastest type of DC fast charging pile available. They can provide 240KW power to electric vehicles, 240KW fast charging pile is 33% faster than 180KW fast charging pile. This means they can charge most electric cars to 80% in just 15 minutes.

Fast Chargers

Product Pricing

Prices for Fast Chargers vary depending on power, voltage level, compatible models, and other factors. Generally speaking, the higher the output power, the higher the voltage level, and the more compatible models, the higher the price.

Instructions for use

Park the electric car in front of the charging port of the charging station.

Remove the electric car's charging port cover.

Insert the charging gun into the charging port of the electric car.

Turn on the switch on the charging gun.

Charging begins.

Product Purchase Methods

Fast Chargers can be purchased through manufacturers, dealers and other channels.

After-sales service

Fast Chargers comes with a 2-year warranty.

DC Quick Charging Stations (2)
DC Quick Charging Stations (3)

FAQ

What is fast charging?

Fast charging refers to technologies that deliver power to your device at a significantly faster rate than traditional chargers. They often use higher voltages and currents to achieve this, but the specific methods vary depending on the type of device and charger.

Is fast charging right for me?

If you frequently use your devices on the go and need them charged quickly, then a fast charger can be a valuable investment. However, if you typically have access to power outlets and don't mind your devices charging at a slower pace, then a traditional charger might be sufficient.

How much does DC fast charging cost?

Charging costs vary depending on the station operator, your location, and even the time of day. Generally, expect to pay more per kilowatt-hour than you would for home charging. However, the time saved can often offset the higher cost.

Does DC fast charging damage my battery?

While frequent DC fast charging can slightly degrade your battery's lifespan over time, it's perfectly safe for occasional use. Modern EVs employ thermal management systems to protect the battery from overheating during fast charging.

Product Applications

DC Quick Charging Stations (4)
DC Quick Charging Stations (5)
DC Quick Charging Stations (6)
