7KW 22KW 44KW Commercial EV Charger With Digital Display


Features:

  • Secure and safe
  • The best charging station for QSR, Retail, Theaters, Casino’s, Grocery Stores, Hotels, Local municipality parking lots and the list goes on and on.
  • One charger with two output sockets
  • Business use with intelligent App control
  • Vandal resistant and anti-corrosion
  • Inteligent Control, Ethernet/4G/Wi-Fi communication all supported
  • OCPP communication protocol with CMS
  • Intelligent operation by App and cashless payment
  • Large screen advertising revenue
  • 49”HDV 1400cd/m²
  • Remotely update AD content

Contact Us For Bulk Order Price

  • FEATURES & TECH SPECS

Description

Whether you're looking to include a commercial EV charging station to your property or intend to upgrade your existing system, Zeconex has the proper solutions that's exactly right for you. With true Open Zeconex Protocol (OCPP) as well as 3 levels of connection, our commercial EV charging stations feature a modern slim layout and easy-to-read screen. Creating a charging station that's right for your needs made simple.

Zeconex is a professional manufacturer for electric vehicle charger, their level 2 ev charger is compatible with all electrical as well as plug-in hybrid vehicles.

Applications:

  • Shopping centers
  • Residential community garages
  • Private house
  • Companies and hotels
  • EV dealers
  • Service workshops

Tech Specifications:

Model

ZECO14K-AD1

ZECO22K-AD2

ZECO44K-AD3

Technical Features

Charging Capacity

Up to 14KW(7KW*2)

Up to 22KW(11KW*2)

Up to 44KW(22KW*2)

Input/Output power

230VAC±20%-50/60Hz-

32A*2-1phase

400VAC±20%-50/60Hz-

16A*2-3phase

400VAC±20%-50/60Hz-

32A*2-3phase

RCD

30Ma RCD Type A and DC 6Ma RCD function or Type B(optional)

Standby power

<5W

Measuring accuracy

1%

Communication

WIFI / Ethernet / 4G(Optional)

Energy Meter

MID certifified

OCPP

OCPP1.6 Json(OCPP2.0 optional)

User interface

LED/LCD(3.5")/ RFID(mifare iso& IEC 14443A)

Certifificate/Compliance

CE / EN/IEC 61851-1:2017, EN/IEC 61851-21-2:2018

Charging Interface

Type 2 socket / 5M Cable

Special Protection

Over current protection, Residual current protection, Ground protection, Surge

protection, Over/Under voltage protection, Over/Under frequency protection,

Over/Under temperature protection

Advertising display

LCD screen

49”IPS 1920*1080 16:9 HDV 1400cd/m²

Application platform

Android 4.3 and above

Ad update

USB flash disk, SD card, wired network remote release

Physical Properties

Warranty

2 years

Protection

IP55(outdoor)

Enclosure

Galvanized steel

Front Panel

Temper glass

Installation

Pole-mount

Cooling

Natural cooling

Operating temperature

-20℃to+55℃

Humidity

Max.95%(non-regulating)

Product Dimensions

1790*750*210(L*W*H)

Package Dimension


Net Weight

<120Kg

<120Kg

<120Kg

Gross Weight



zeconex ev charger application74

Professional Commercial Digital EV Charger Manufacturer

Zeconex is a top public commercial digital EV Charger manufacturer, offering ev charger solutions with digital display for pubic buildings like retail and shopping centers, grocers, gas stations and convenience stores, hotels and parking lots for years.  It is a trusted brand that offers digital EV charging solutions& beyond.

Zeconex lays the foundations for a future of smarter, trustworthy, and emission-free mobility, obtainable by every person, almost everywhere. Zecoenx offers an overall EV charging solution from compact, high quality ac EV wall boxes, and dependable DC fast charging stations with durable connection, to innovative on-demand electrical car charging systems, we release infrastructure that meet the demands of the future generation of smarter mobility.

When making an investment on an digital EV charger we know that for our consumers it has to do with more than the charger. It's about having the ability to rely on the company you collaborate with. There are a great deal of business that sell digital ev chargers yet none that meet the values you already get out of Zeconex. Top quality. Safety. Longevity. You understand you can trust your electric automobile needs to Zeconex - a firm that has been giving safe and reliable digital display ev charger solutions for years. We have actually been there for you in the past, we will certainly be there for you and all your EV charger with advertising display needs for years ahead.

Your Professional Digital EV Charger Supplier

Zeconex is a digital ev charging station manufacturer that have been tested at every step of the manufacturing process and the public commercial ev charger is one of our best-selling products. We offer customized car charging kiosk different shapes, materials and specifications to suit your demand and preferences.

We strive to make your experience of using car charging kiosk with advertising display the best. Give us a chance to provide you with the best quality and highly efficient commercial electric car charging kiosk with digital display to charge your electric vehicle. You can order customized commercial digital ev charger as per your preference along with a quote and charge your electric car as per your wish.

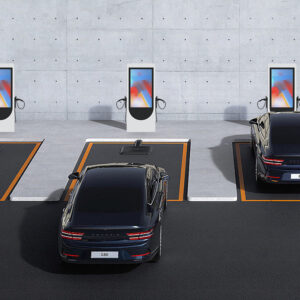

zeconex ev charger application73
zeconex ev charger application76

Why Digital commercial EV charging station for your business?


The electric vehicle market is growing rapidly as well as the existing infrastructure is unable to stay on par with the need. Your business can become part of the infrastructure solution!


Zeconex Digital EV charging kiosk is perfect for:QSR, Retail, Theaters, Casino site's, Grocery Shops, Hotels, Local town parking lots as well as the listing continues.

This charger utilizes an App that measure power and also voltage along with the moment an car began charging as well as the completion of each charge. Created making use of high impact steel as well as sustaining the Samsung

49”HDV 1400cd/m² display show you can be ensured that you will receive years of service with the high quality digital EV charging kiosk. This stand can be customized to any color you like, and can also do OEM/ODM orders for your demand.

Yet no matter how your business aims to utilize commercial EV charging stations in the future, there is a whole lot to consider before investing. As EV charging stations can be found in several sizes and shapes, it's very easy to get lost or overwhelmed. Where should you start?  Contat your proffessional digital commercial ev charger manufacturer Zeconex. We will answer all your questions and doubts about the commercial digital ev chargers.

Our Solutions For Public

We provide everything that’s needed to build a charging business, from charging facilities to customer services and smart energy management solutions. You can either manage your own network of charging stations or provide the service for other charger operators. All solutions are white-labelled and can be customized to meet your customers’ needs.

zeconex ev charging station software solution for pubic

Product Applications

zeconex ev charger application77

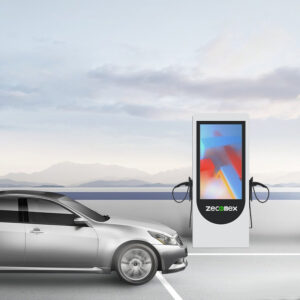

zeconex ev charger application75
zeconex ev charger application74
