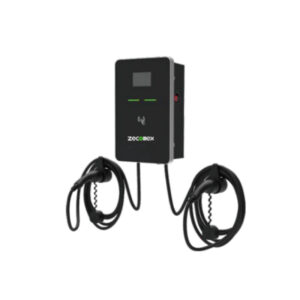

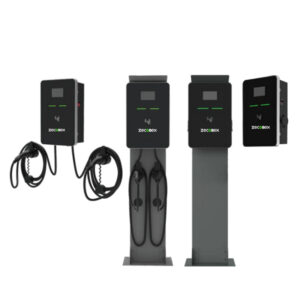

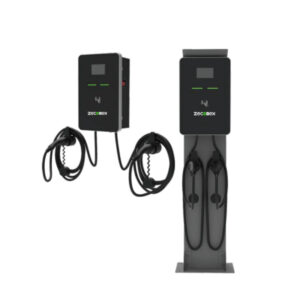

Twin Pedestal Wallbox EV Charger


Features

  • Wallbox designed twin ev charger
  • Small size, not taking up a lot of space
  • Suitable for private house
  • Safe and convenient

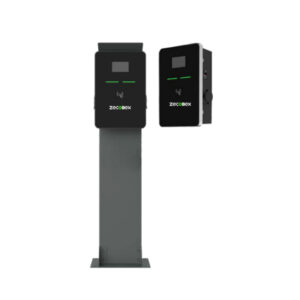

  • Support wall-mount, pole-mount installation
  • High temperature resistance
  • Safe and easy to restore electric vehicles
  • IP65, IK10
  • CE/FCC/ROHS/REACH/IEC/EN certified
  • One charge with two output sockets

Contact Us For Bulk Order Price

  • FEATURES & TECH SPECS

Description

Zeconex's wallbox ev charger series is a series of wallboxes designed to provide a secure and convenient way to store and access electrical components. Two-pedestal design, allowing for access to the equipment. The wallboxed are designed to be durable and long-lasting seetings. They are also ideal for use in private houses, providing a secure and convenient way to store electrical equipment. The features of ip65 waterproof and ik10 protection can protect the twin pedestal and charger from bad damage.

Twin pedestal wallbox ev charger offers a powerful and convenient charging solution for your electric vehicle. 14kw, 22kw, or 44kw power options for every need. Built to last, the enclosure is constructed from galvanized steel for exceptional durability, while the tempered glass front panel provides a sleek aesthetic.Dual charging ports accommodate two vehicles simultaneously. Select either type 2 sockets or 5-meter type 2 charging guns for added convenience.The charger can be wall-mounted or pole-mounted for versatile placement options. Enjoy a 2-year warranty for worry-free operation.

Tech Specs

Model

ZECO14K-T1

ZECO22K-T2

ZECO44K-T3

Technical Features

Charging Capacity

Up to 14KW

Up to 22KW

Up to 44KW

Input/Output power

230VAC±20%-50/60Hz-

32A*2-1phase

400VAC±20%-50/60Hz-

16A*2-3phase

400VAC±20%-50/60Hz-

32A*2-3phase

RCD

RCMU(Type A+ DC 6mA)/Type B RC CB(Optional)

Standby power

<5W

Measuring accuracy

1%

Energy Meter

MID certified

OCPP

OCPP1.6Json(OCPP2.0 optional)

Communication

WIFI/Ethernet/4G(Optional)

User Interface

LCD 5 inch Touch Screen/RFID(mifare iso&IEC 14443A)

Certificate/Compliance

CE/FCC/ROHS/REACH/IEC/EN61851-1,IEC/EN61851-21-2,IEC/EN62955,EN300328,EN301489-1/-17,EN62479.

Charging Interface

Type2socket*2 or Type 2 Gun*2 5M

Special Protection

Over current protection, Residual current protection, Ground protection, Surge

protection, Over/Under voltage protection, Over/Under frequency protection,

Over/Under temperature protection

Physical Properties

Warranty

2 years

Protection

IP55, IK10

Enclosure

Galvanized steel

Front Panel

Temper glass

Installation

Wall-mount/Pole-mount.

Cooling

Natural cooling

Operating temperature

-30˚C to +55˚C

Humidity

Max.95%(non-regulating)

Product Dimensions

503*334*155(L*W*H)mm

Package Dimension

610*415*250(L*W*H)mm

Net Weight

13.5Kg

13.5Kg

13.5Kg

Gross Weight

15Kg

15Kg

15Kg

zeconex twin pedestal wallbox application

Charging Speed

The Zeconex wallbox ev charger can offer single-phase configuration (230vac), three-phase configuration (400vac) charging speeds depending on the selected configuration.

Power Output

14kw wallbox ev charger configuration ideal for everyday charging, delivering a full charge to most electric vehicles in a few hours. 22kw wallbox ev charger configuration experience faster charging, perfect for those who demand quicker top-ups or have larger battery-equipped vehicles. 44kw wallbox ev charger configuration maximize charging speed, enabling you to power up your electric vehicle in the shortest possible time, ideal for commercial or fleet applications.

Weatherproofing and durability

Our wallbox ev charger is meticulously designed and rigorously tested to achieve an impressive ip55 and ik10 rating. The combined power of ip55 and ik10 ratings, along with our commitment to superior build quality, provides you with peace of mind. The charging post is specially protected by over current protection, residual current protection, ground protection, surge protection, over/under voltage protection, over/under temperature protection. Frequency protection, over/under temperature protection.


zeconex ev car charger
wallbox ev charger

Safety Certifications

Zeconex prioritizes safety and compliance with the highest standards to ensure a reliable and worry-free charging experience for our customers. Our twin pedestal wallbox ev charger boasts a comprehensive list of ce/fcc/rohs/reach/iec/en61851-1,iec/en61851-21-2,iec/en62955,en300328,en301489-1/-17,en62479 certifications, guaranteeing its adherence to rigorous international regulations.

Cloud Platform

Dedicated to enabling the future of e-Mobility by providing the most open, secure and robust charging network anywhere. A charging platform based on the cloud server makes it simple for charger owners to operate and customize chargers to meet their specific requirements. We provide everything you need to offer a complete EV charging solution.

  • Management System: A central system for charger operators manage charge points an monitor charging service. Status monitor, charger record, price management,firmware upgrade,remote diagnose,and load banlance are offered in one capable system.
  • Mobile App: A charging App for EV drivers who needs charging service. Price, locations, availability,start/stop charging,and auto billing are available in an easy way.
  • Interoperability:Connections while e-Mobility Servise Providers who have EV drivers as customers are viable through the open charge point inter face protocol(OCPI)
  • zeconex ev charger cloud platform

    Mobile App

    The charging App connects EV drivers with charging stations, so that they can easily fifind a charger and enjoy the charging service. It enables users to do location search, charging monitor and payment settlement. All is done in a mobile phone.

    zeconex ev charging station app
    zeconex ev charging software app

     Applications

    The Zeconex wallbox ev charger is a versatile and reliable solution for a shopping centers/residential community garages/private houses/companies and hotels/ev dealers/service workshops wide range of applications.

    • Shopping centers
    • Residential community garages
    • Private house
    • Companies and hotels
    • EV dealers
    • Service workshops
    zeconex dc ev charger application83
    zeconex 150kw dc fast ev charger application 02
    zeconex 150kw ev fast charging station application84

    As a leading supplier of innovative ev charging solutions, zeconex proudly presents our twin pedestal wallbox ev charger, designed to seamlessly integrate into your home or business, delivering exceptional performance and convenience. With its sleek and modern design, our charger seamlessly complements any environment, while its robust construction ensures years of reliable operation.
